Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Apply a bead of sealer, GM P/N 12345739 or Canadian P/N 10953472, or equivalent to the front seal surface of the lock pillar stowage compartment and to the surround flange.
Remove the paper backing from the adhesive on the bottom of the molded ends of the weatherstrip.
Position the molded ends of the weatherstrip to the lock pillars.
Tuck the outboard lip of the seal underneath the flange of the quarter panels.
Secure the molded ends of the weatherstrip with the retainers.

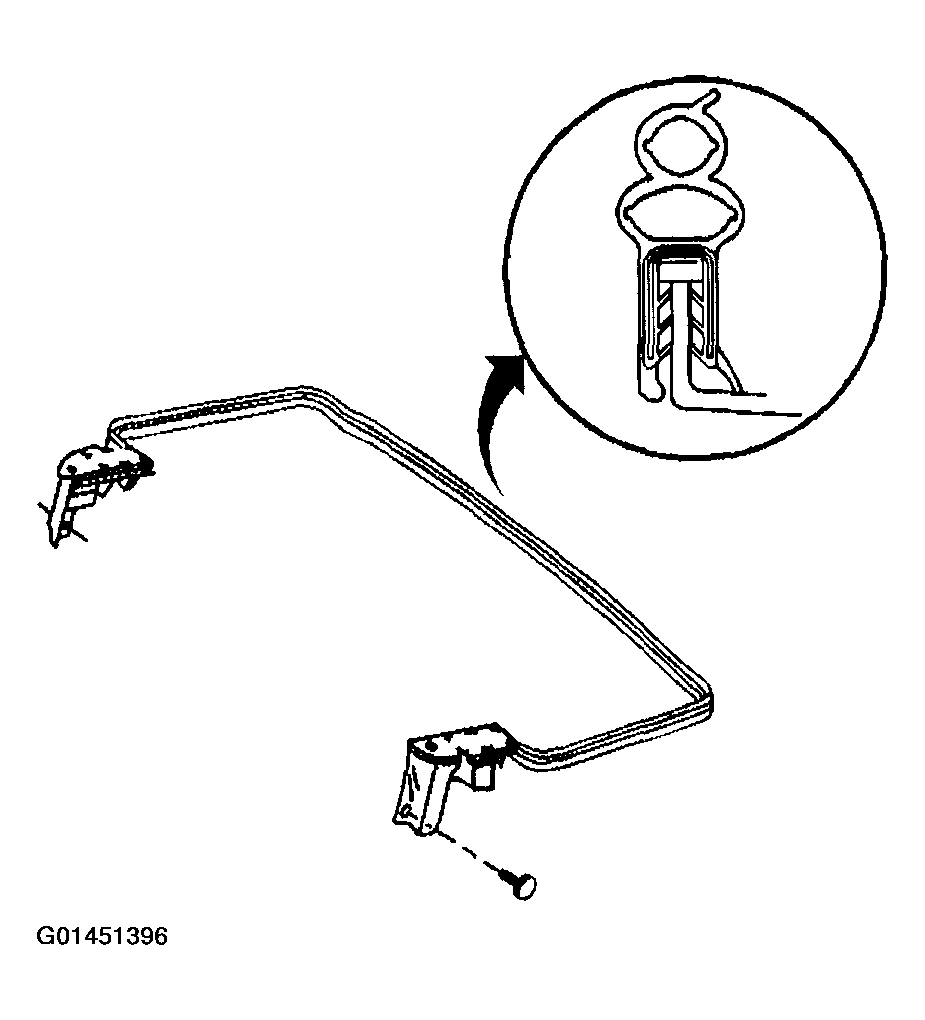

Fig 1: Applying Sealer To Front Seal Surface Of Lock Pillar Stowage Compartment & To Surround Flange
Courtesy of GENERAL MOTORS CORP.
Firmly secure the weatherstrip to the stowage compartment flange.
Close the folding top stowage compartment.
Reposition the folding top to the original position.

Fig 2: Securing Weatherstrip To Stowage Compartment Flange
Courtesy of GENERAL MOTORS CORP.
