Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the #5 bow weatherstrip.
    Fig 1: #5 Bow Weatherstrip
    G01451382Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts to the ends of the weatherstrip.

    Tighten

    Tighten the nuts to 4 N.m (35 lb in).

  3. Install the protective pads to the weatherstrip nuts.
  4. Install the protective pads to the ends of the bow.
  5. Reposition the folding top to the original position.

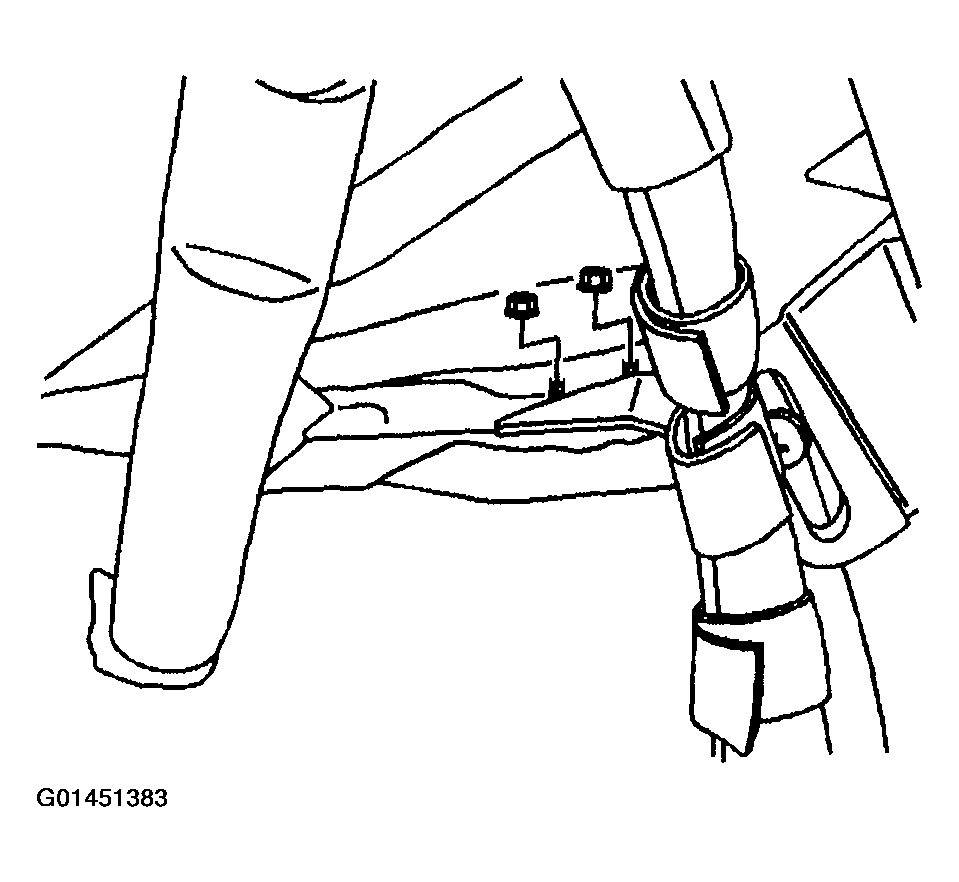

    Fig 2: Nuts To Ends Of Weatherstrip
    G01451383Courtesy of GENERAL MOTORS CORP.
