Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch to the roof panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts to the latch.

    Tighten

    Tighten the roof rear latch bolts to 10 N.m (89 lb in).

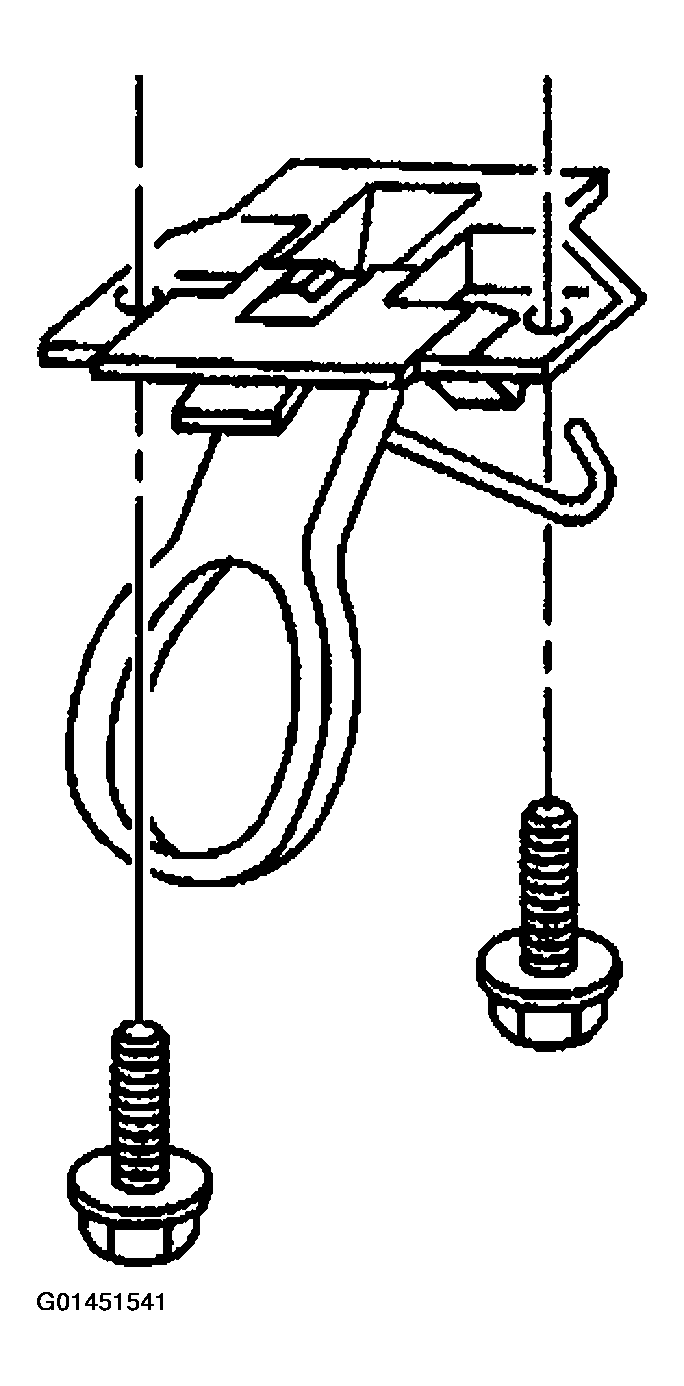

    Fig 1: Latch To Roof Panel
    G01451541Courtesy of GENERAL MOTORS CORP.
  3. Install the latch cover and attaching screws.

    Tighten

    Tighten the roof rear latch cover screws to 3 N.m (27 lb in).

    Fig 2: Latch Cover & Attaching Screws
    G01451542Courtesy of GENERAL MOTORS CORP.
  4. Install the roof lift off panel.
  5. Adjust if necessary. Refer to ROOF LIFT OFF PANEL ADJUSTMENT .
    Fig 3: Roof Lift Off Panel
    G01451543Courtesy of GENERAL MOTORS CORP.
