Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the folding top from the vehicle. Refer to FOLDING TOP REPLACEMENT .
Remove the weatherstrip and the retainer from the rear side rail. Refer to WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (FRONT AND CENTER SIDE RAIL) or WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (REAR SIDE RAIL) .
Drill out the top cover flap rivets from the rear side rail.
Raise the top cover flap and drill out the tension cable rivet from the rear side rail.

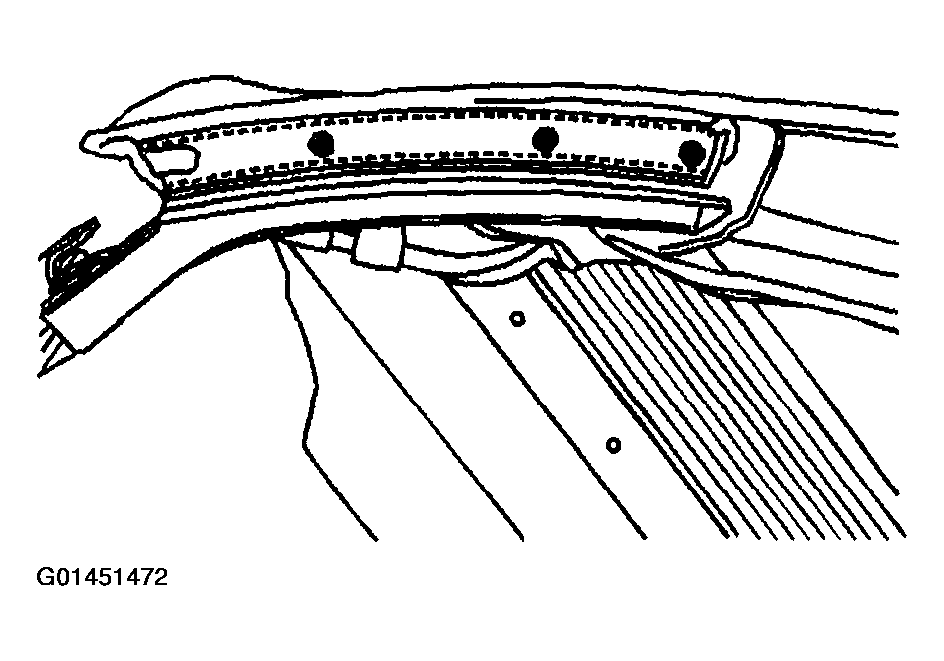

Fig 1: Top Cover Flap Rivets From Rear Side Rail
Courtesy of GENERAL MOTORS CORP.
Position the top with the #1 bow and the #5 bow up.

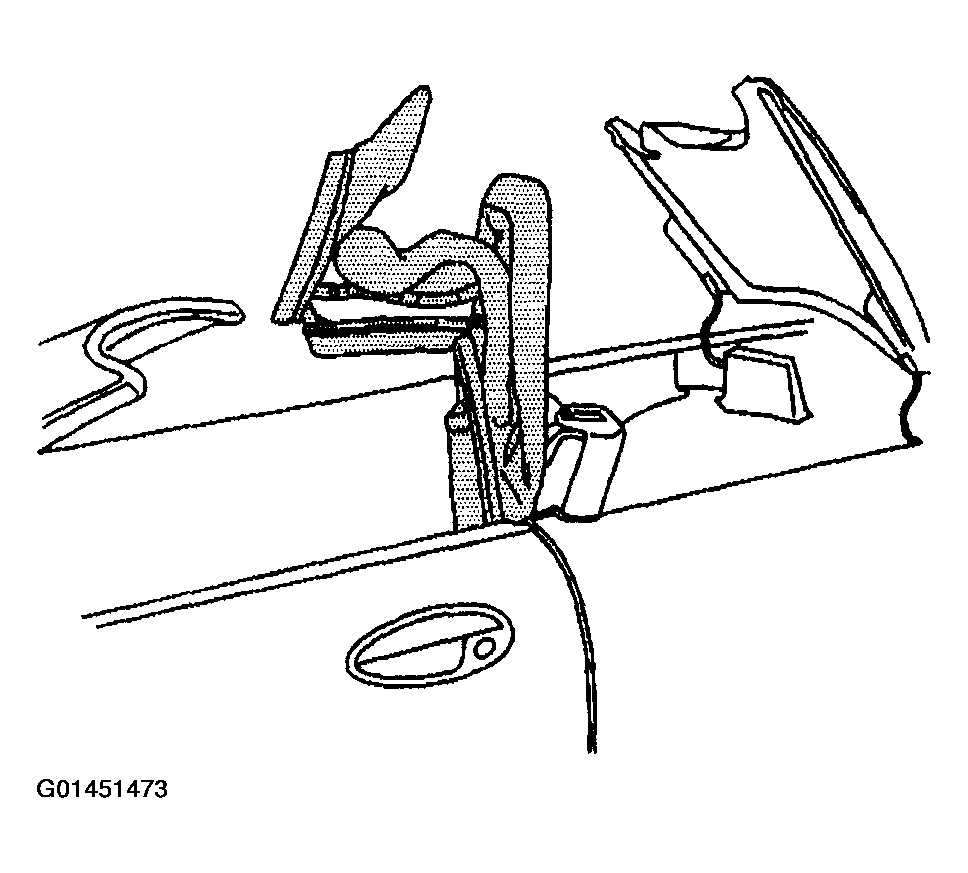

Fig 2: Positioning Top With #1 Bow & #5 Bow Up
Courtesy of GENERAL MOTORS CORP.
Remove the headliner screw from the #1 bow.

Fig 3: Headliner Screw From #1 Bow
Courtesy of GENERAL MOTORS CORP.
Remove the screw from the tension cable spring end on the #1 bow.

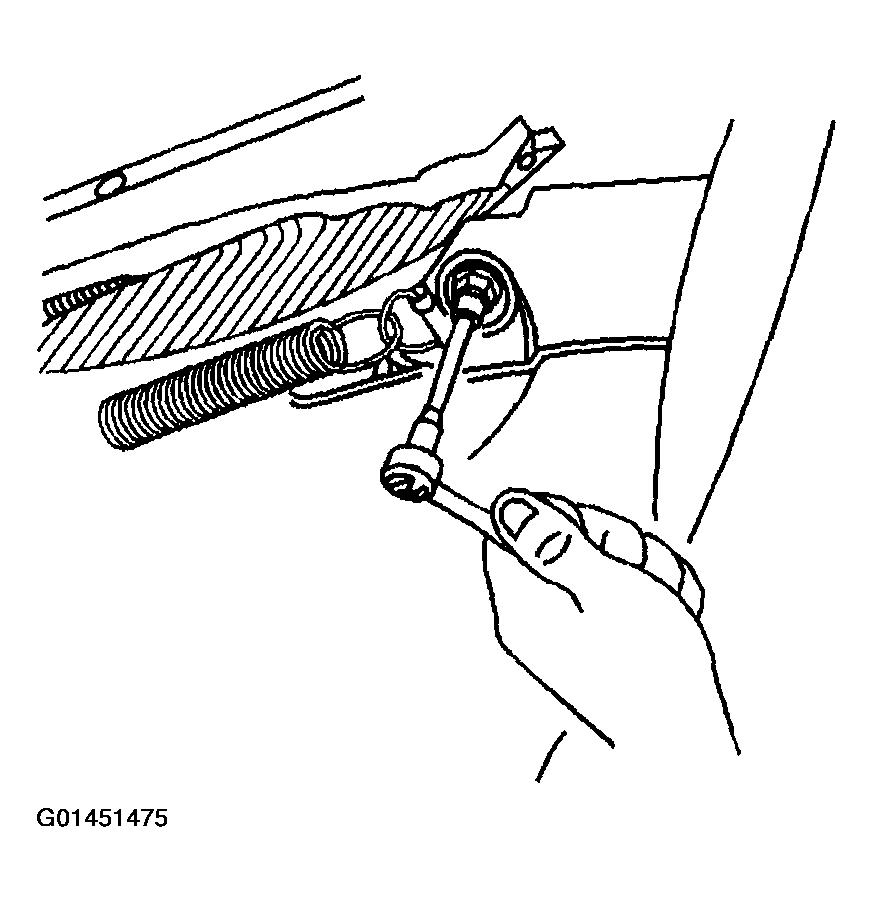

Fig 4: Screw From Tension Cable Spring End On #1 Bow
Courtesy of GENERAL MOTORS CORP.
Remove the spring from the end of the tension cable and attach approximately five feet of 16 gauge wire to aid in the installation.
From the rear of the top remove the tension cable, leaving the wire in the top pocket.
Disconnect the tension cable from the wire.

Fig 5: Disconnecting Tension Cable From Wire
Courtesy of GENERAL MOTORS CORP.
