Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the spring, attaching the rear of the wire to the spring end of the cable.
Pull the wire forward until the cable is in the proper position. Remove the wire and reinstall the spring.

Fig 1: Connecting Tension Cable To Wire
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screw to the tension cable spring end on the #1 bow.
Tighten

Tighten the screw to 2 N.m (18 lb in).

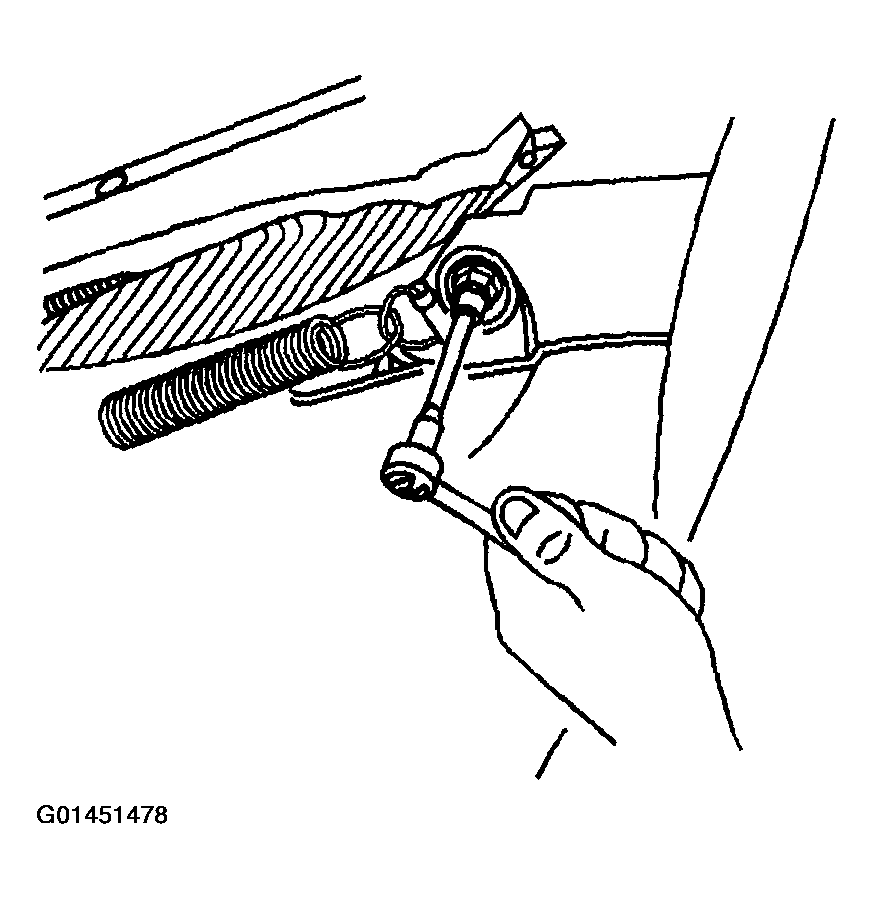

Fig 2: Screw To Tension Cable Spring End On #1 Bow
Courtesy of GENERAL MOTORS CORP.
Install the headliner screw to the #1 bow
Tighten

Tighten the screw to 2 N.m (18 lb in).
Rivet the flag end of the tension cable to the back side of the rear side rail.
1. Position the flag roll forward.
2. Use a C rivet or a stainless steel pop rivet.
3. With a ball peen hammer, tap the rivet head flush with the retainer.
Fig 3: Headliner Screw To #1 Bow
Courtesy of GENERAL MOTORS CORP.
Fold the top cover flap over the rear side rail and rivet place.
Install the rear side weatherstrip retainer and the weatherstrip to the rear side rail. Refer to WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (FRONT AND CENTER SIDE RAIL) or WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (REAR SIDE RAIL) .
Install the folding top to the vehicle. Refer to FOLDING TOP REPLACEMENT .

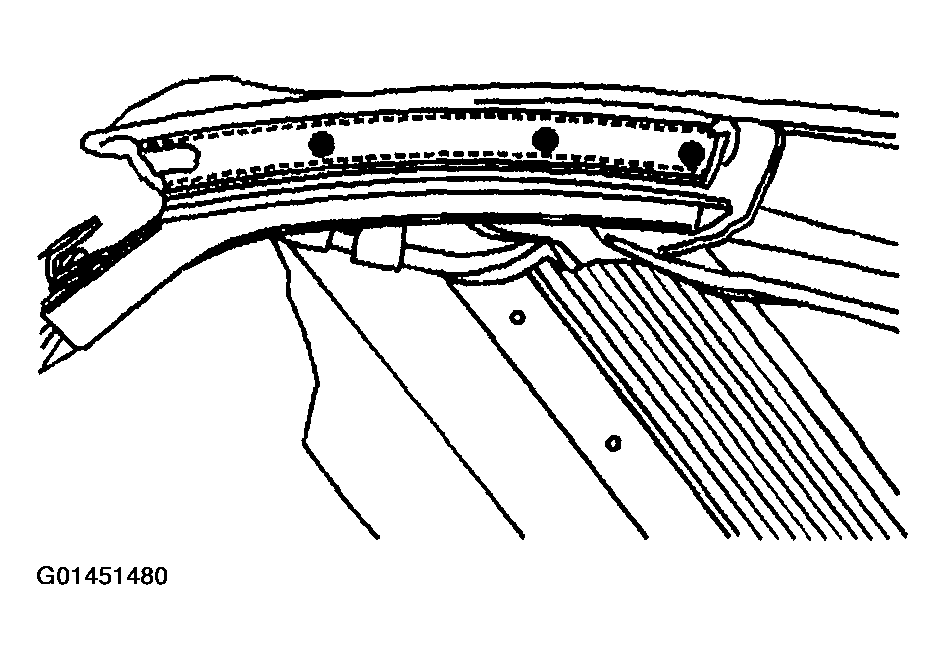

Fig 4: Top Cover Flap Rivets To Rear Side Rail
Courtesy of GENERAL MOTORS CORP.
