Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear stowage compartment lid.

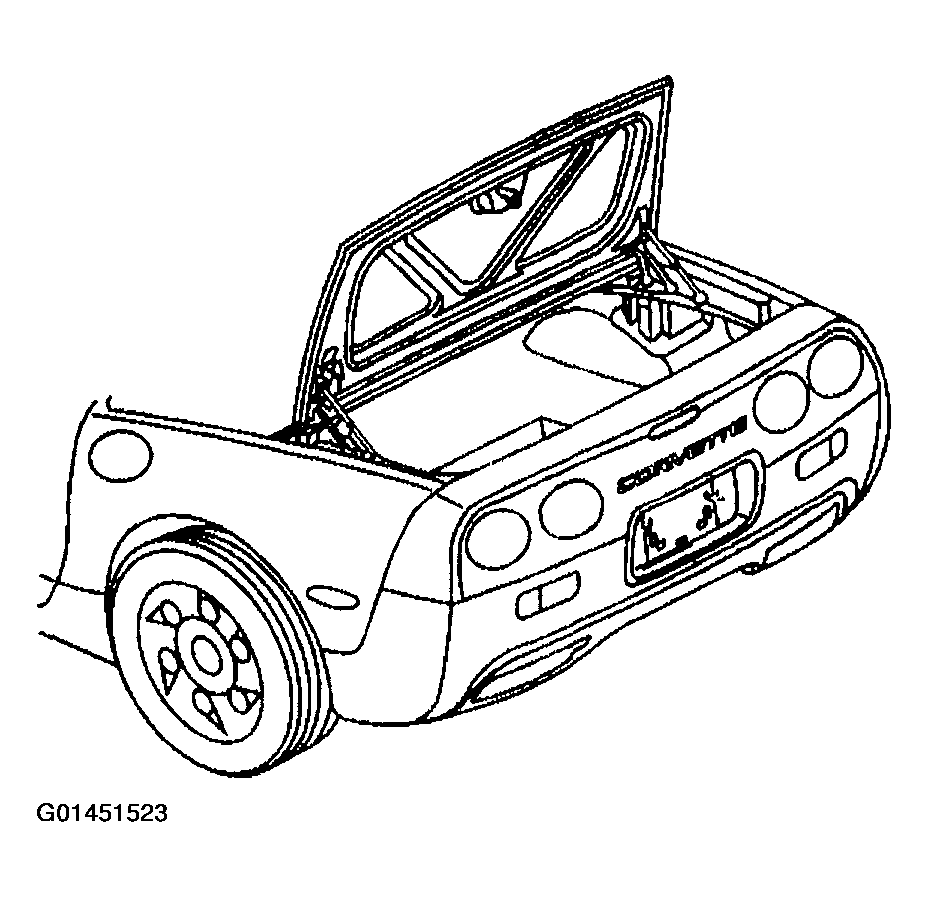

    Fig 1: Opening Rear Stowage Compartment Lid
    G01451523Courtesy of GENERAL MOTORS CORP.
  2. Position the rod end of the strut through the access hole between the quarter panel and the support.
  3. Install the strut to the rear ball stud.
  4. Close the rear stowage compartment.

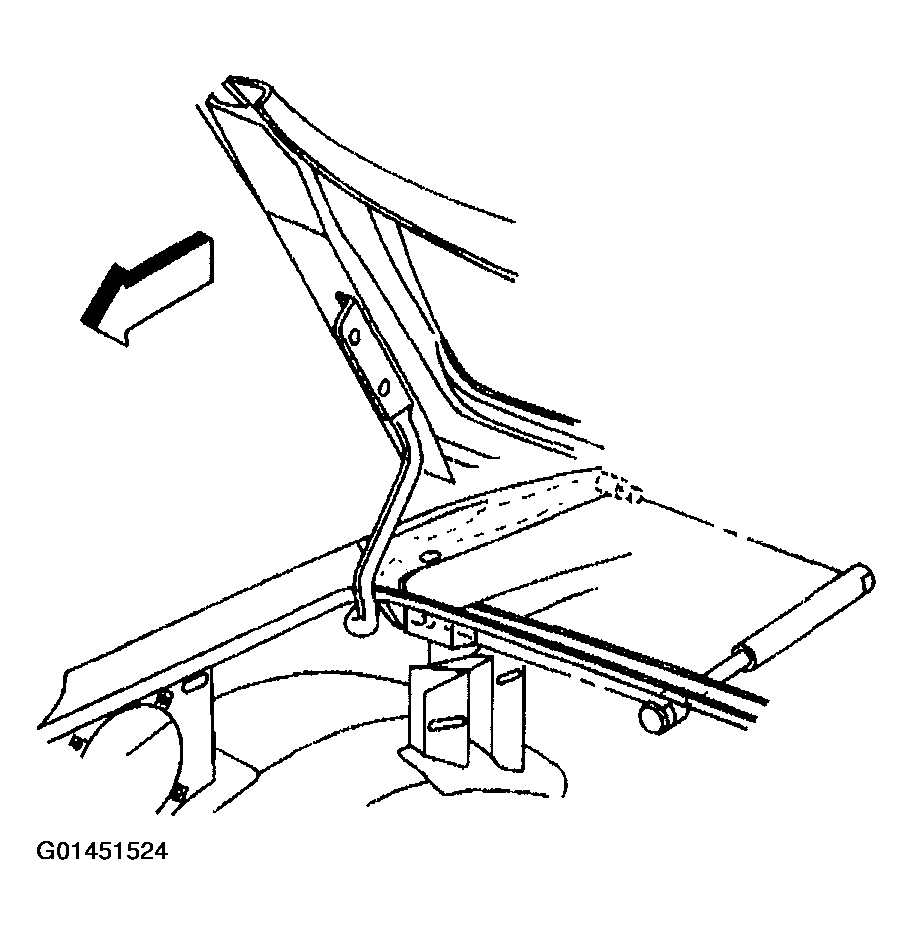

    Fig 2: Closing Rear Stowage Compartment Lid
    G01451524Courtesy of GENERAL MOTORS CORP.
  5. Open the folding top stowage compartment.
  6. Install the rod end of the strut to the front of the hinge.
  7. Close the folding top stowage compartment.

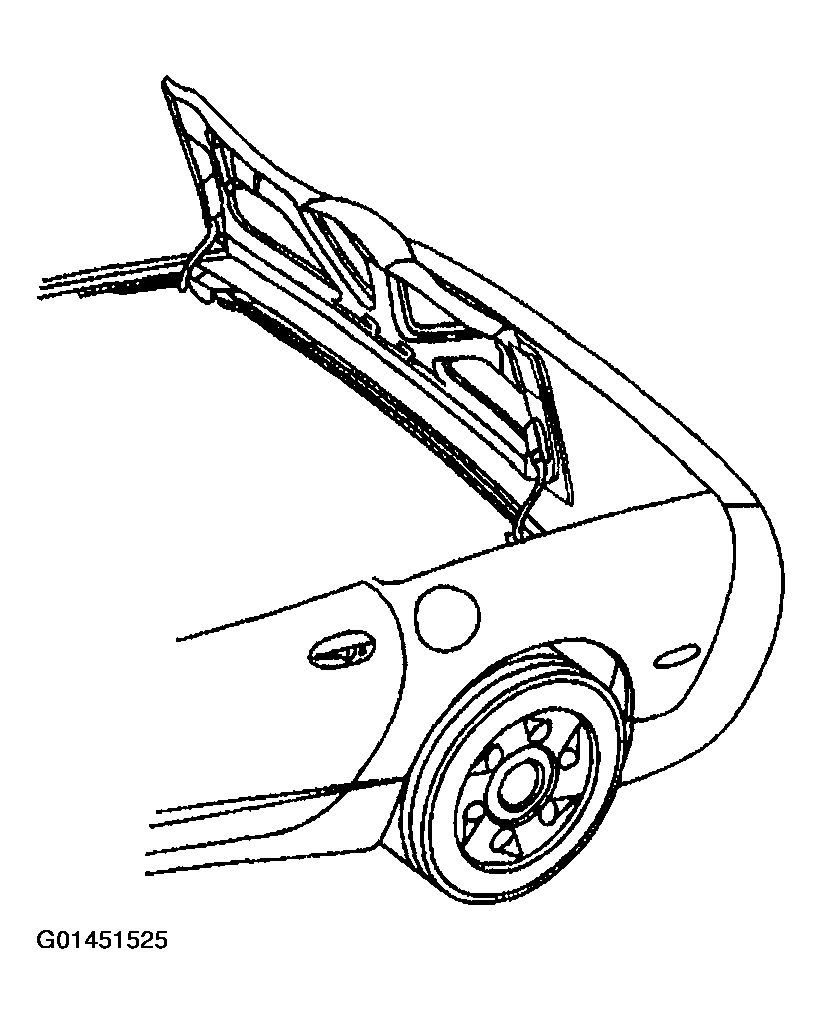

    Fig 3: Closing Folding Top Stowage Compartment Lid
    G01451525Courtesy of GENERAL MOTORS CORP.
