Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the striker and the shims to the lid with the arrow on the striker pointed downward.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the striker, beginning with the driver side bolt.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Inspect the operation of the compartment lid.
  4. Close the compartment lid.

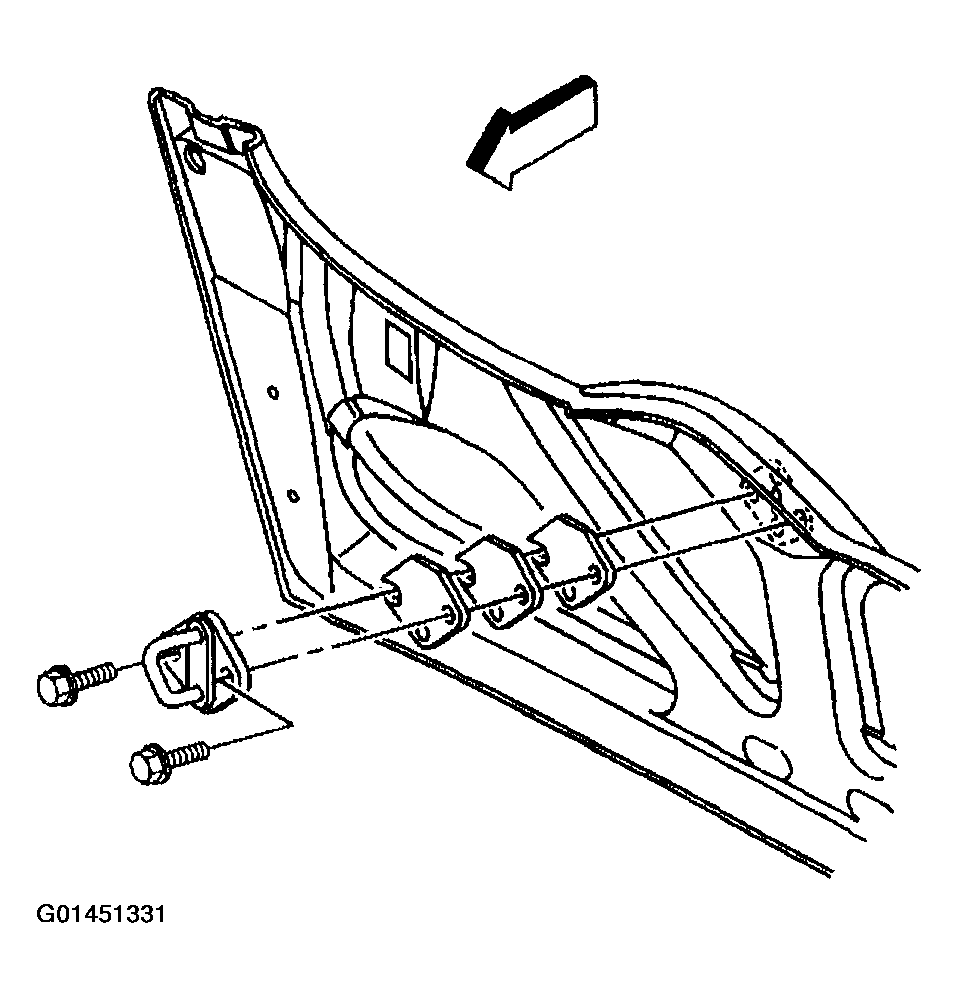

    Fig 1: Striker & Shims
    G01451331Courtesy of GENERAL MOTORS CORP.
