Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the top with the #1 bow and the #5 bow up.
  2. Refer to COMPARTMENT LID EXTENSION - FOLDING TOP STOWAGE in Interior Trim.
  3. Disconnect the electrical connector from the latch.

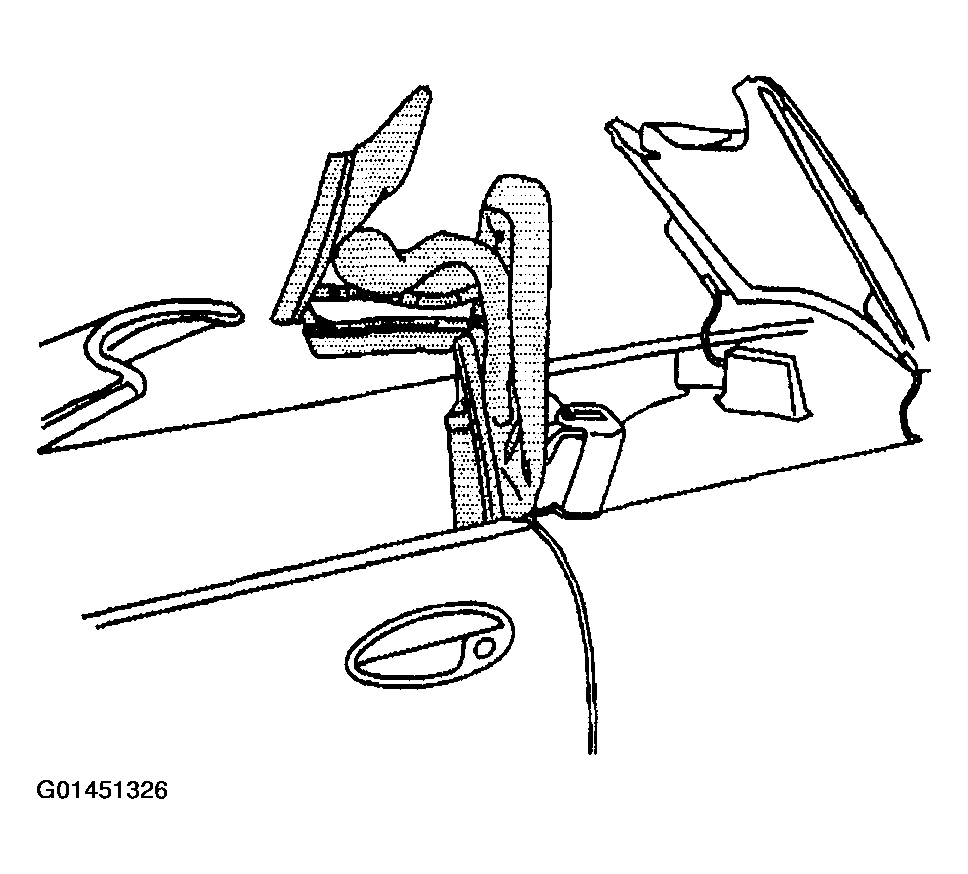

    Fig 1: Folding Top
    G01451326Courtesy of GENERAL MOTORS CORP.
  4. Remove the latch bolts from the latch retainer.
  5. Remove the latch.

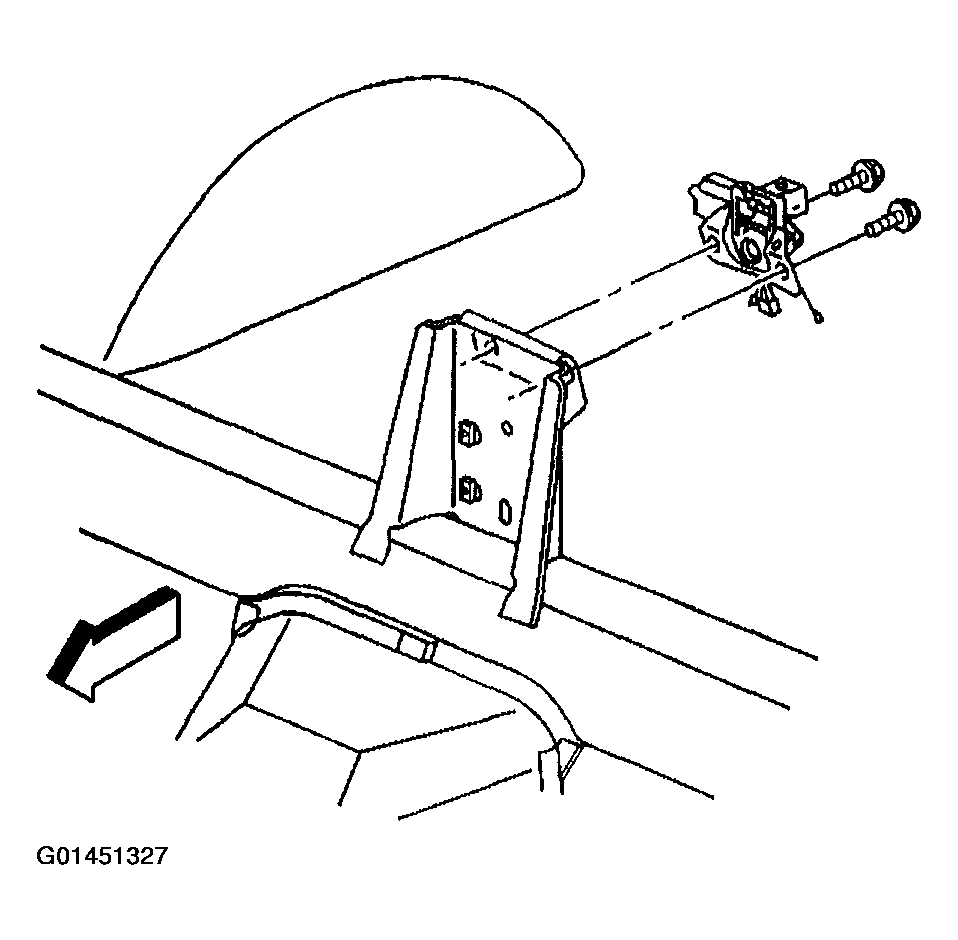

    Fig 2: Latch Bolts & Latch Retainer
    G01451327Courtesy of GENERAL MOTORS CORP.
