Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the folding top cover. Refer to FOLDING TOP COVER REPLACEMENT .
  2. Using a pair of needle-nosed pliers, remove the stay pad staples from the #5 bow.
  3. Cover the stowage compartment lid to protect the lid from damage.
  4. Latch the top.

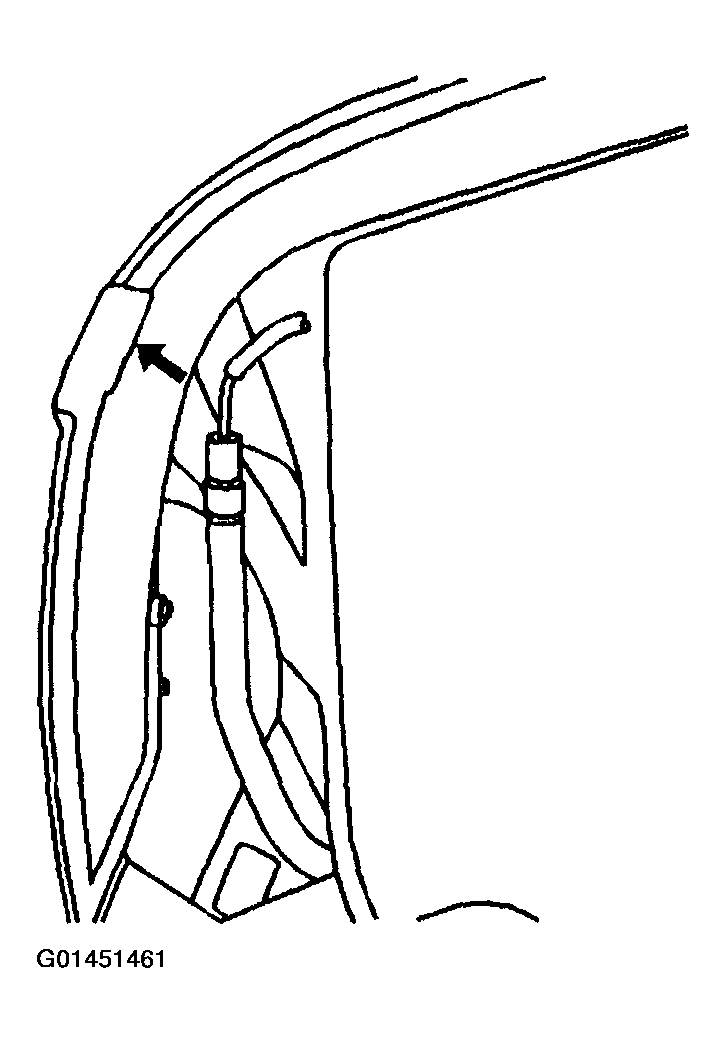

    Fig 1: Stay Pad Staples From #5 Bow
    G01451461Courtesy of GENERAL MOTORS CORP.
  5. Using a pair of needle-nosed pliers, remove the stay pad staples to the #4, 3, and 2 bows.
  6. Drill out the stay pad rivets to the #1 bow.
  7. Remove the stay pad.

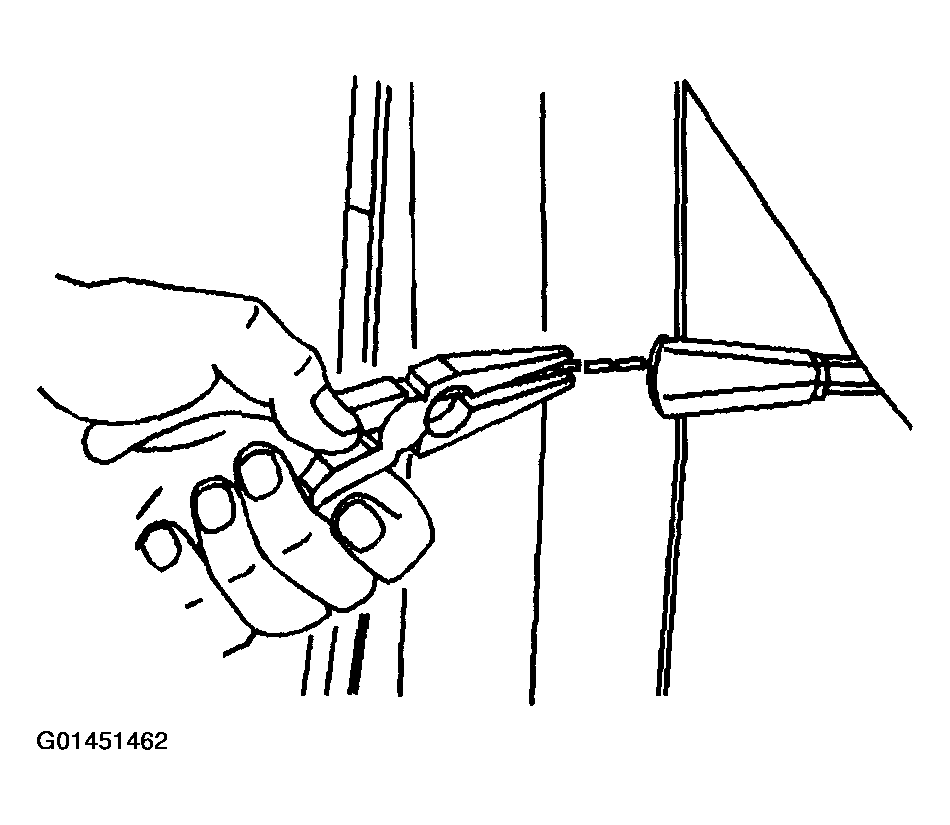

    Fig 2: Stay Pad Staples To #4, 3 & 2 Bows
    G01451462Courtesy of GENERAL MOTORS CORP.
