Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear side rail.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the center side rail screws to the rear side rail.
Tighten

Tighten the screws to 19 N.m (14 lb ft).
Install the extension bracket screws to the #5 bow.
Tighten

Tighten the screws to 13 N.m (10 lb ft).

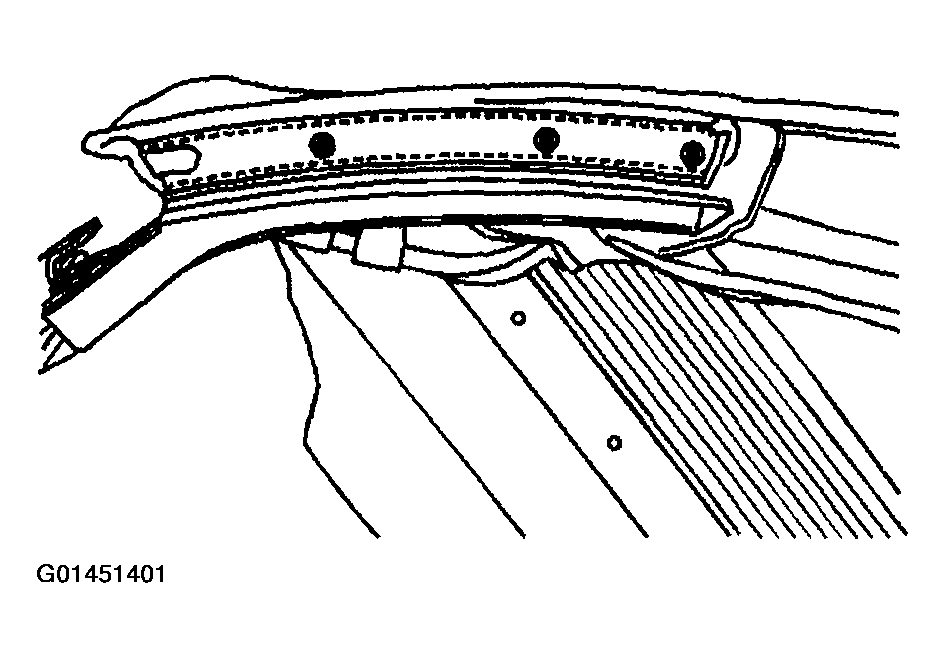

Fig 1: Rear Side Rail
Courtesy of GENERAL MOTORS CORP.
Rivet the #5 bow to the extension bracket on the rear side rail. Verify that both sides of the rivet are flat.
Rivet the protector elastic strap to the rear side rail.
Rivet the tension cable flag to the rear side rail. The rolled side of the flag must face forward.
Rivet the top cover to the bottom of the rear side rail.
Rivet the top flap to the rear side rail.
Install the retainer and the seal to the rear side rail. Refer to WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (FRONT AND CENTER SIDE RAIL) or WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (REAR SIDE RAIL) .

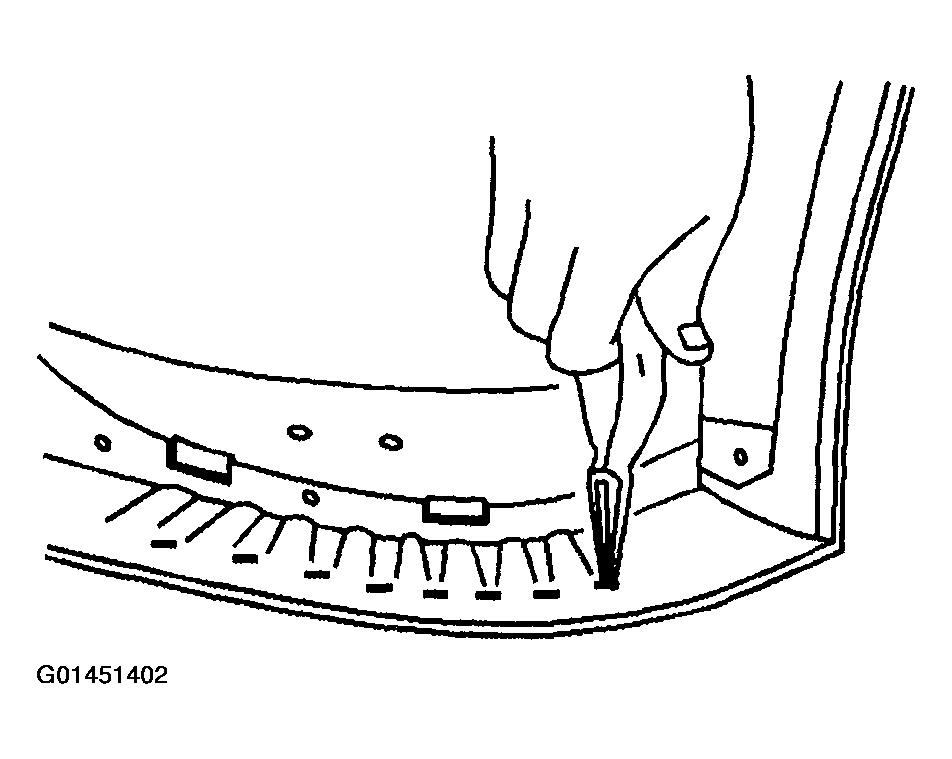

Fig 2: Rivets That Secure Top Cover Side Flaps & Tension Cable Flag To Rear Side Rail
Courtesy of GENERAL MOTORS CORP.
Install the screws attaching the headliner elastic strap to the rear side rail.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the headliner screws to the rear side rail.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Connect the defogger wire to the rear side rail.
Install the folding top to the vehicle. Refer to FOLDING TOP REPLACEMENT .
Position the folding top to the original position.

Fig 3: Staples That Secure Top Cover To Bow
Courtesy of GENERAL MOTORS CORP.
