Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal compression panel to the #1 bow.

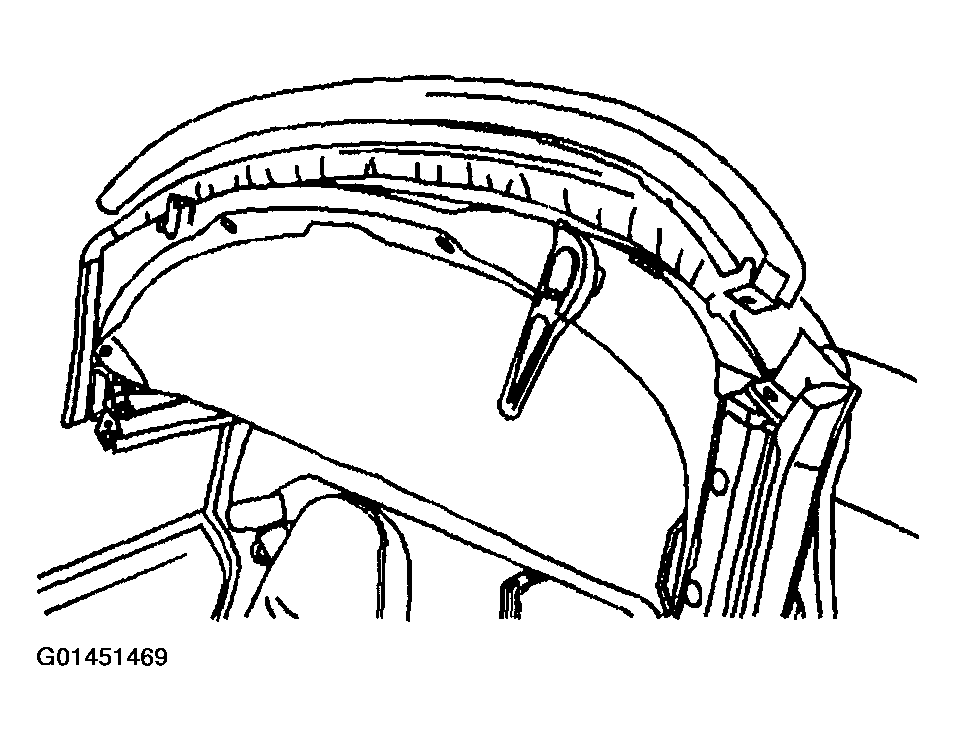

    Fig 1: Positioning Seal Compression Panel To #1 Bow
    G01451469Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the seal compression panel on the #1 bow.

    Tighten

    Tighten the screws to 3 N.m (26 lb in).

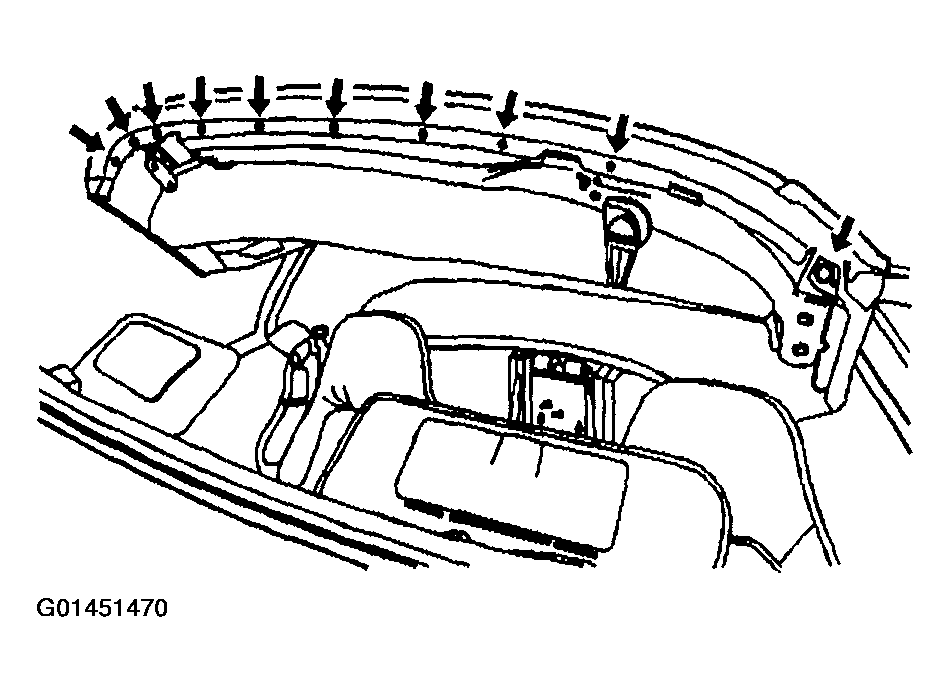

    Fig 2: Screws To Seal Compression Panel On #1 Bow
    G01451470Courtesy of GENERAL MOTORS CORP.
  3. Install the screw to the front side rail seal on the #1 bow.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

    Fig 3: Screw To Front Side Rail Seal On #1 Bow
    G01451471Courtesy of GENERAL MOTORS CORP.
