Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the #3 bow to the main control link bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the #3 bow screws to the main control link bracket (3).

    Tighten

    Tighten roof bow to the main control link bracket screws to 13 N.m (10 lb ft).

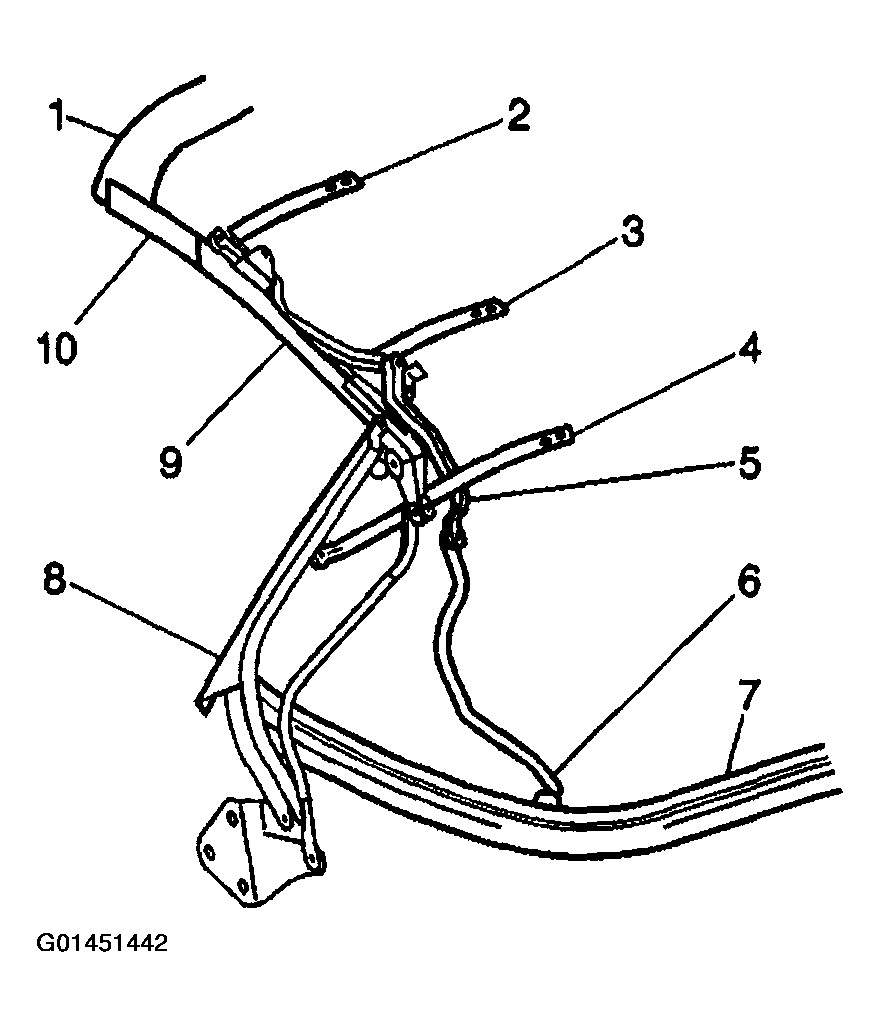

    Fig 1: #3 Bow To Main Control Link Bracket
    G01451442Courtesy of GENERAL MOTORS CORP.
  3. Staple the stay pad to the #3 bow (3).
  4. Install the headliner screws to the #3 bow.

    Tighten

    Tighten the headliner screws to 2 N.m (18 lb in).

  5. Refer to FOLDING TOP ROOF BOW REPLACEMENT (NUMBER 1 BOW)  or FOLDING TOP ROOF BOW REPLACEMENT (NUMBER 2 BOW)  or FOLDING TOP ROOF BOW REPLACEMENT (NUMBER 3 BOW)  or FOLDING TOP ROOF BOW REPLACEMENT (NUMBER 4 BOW)  or FOLDING TOP ROOF BOW REPLACEMENT (NUMBER 5 BOW) .

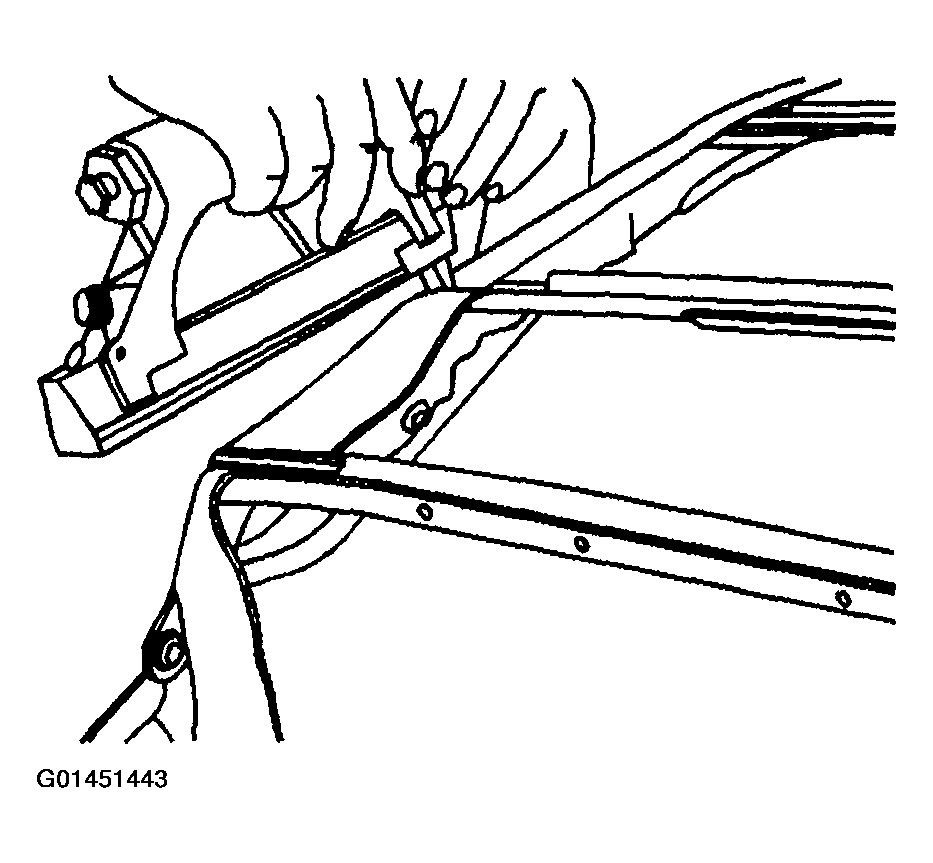

    Fig 2: Stapling Stay Pad To #3 Bow
    G01451443Courtesy of GENERAL MOTORS CORP.
