Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lock pillar upper trim panel. Refer to TRIM REPLACEMENT - LOCK PILLAR (UPPER CONVERTIBLE or TRIM REPLACEMENT - LOCK PILLAR (COUPE) or TRIM REPLACEMENT - LOCK PILLAR (LOWER CONVERTIBLE AND HARD TOP) in Interior Trim.
  2. Position the #1 bow and the #5 bow in an up position.
  3. Disconnect the rear defogger electrical connections.
  4. Using a grease pencil mark the folding top mounting locations on both sides.

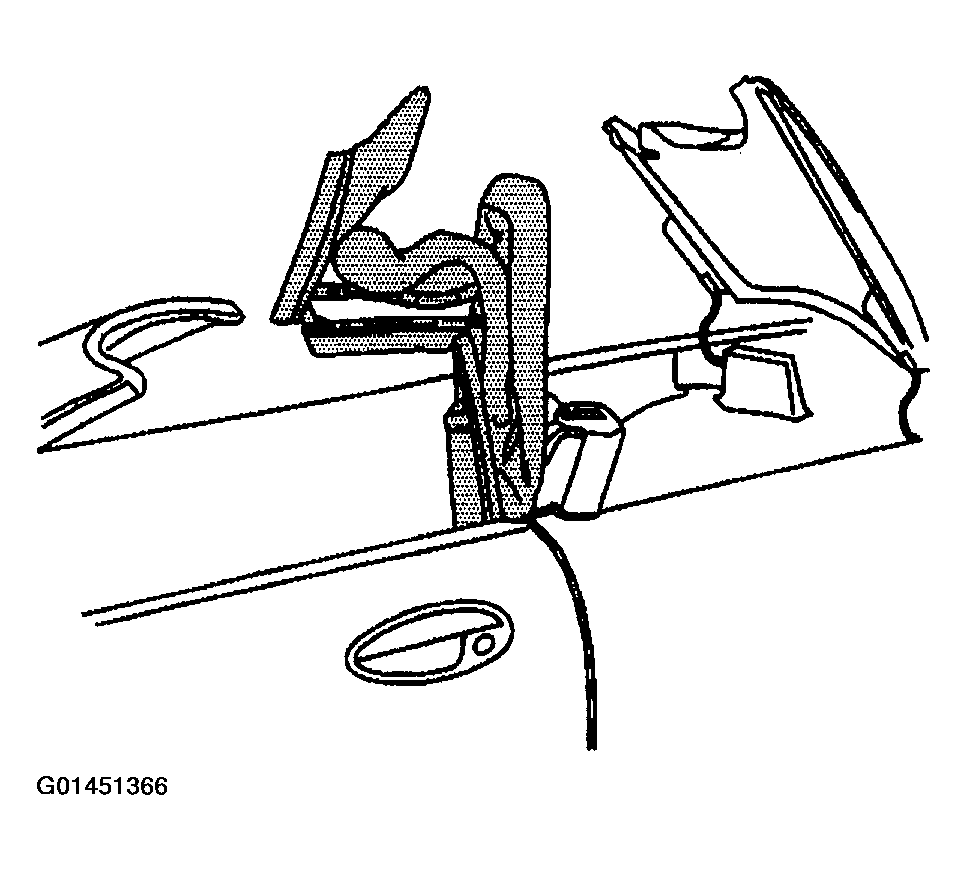

    Fig 1: Positioning #1 Bow & #5 Bow In Up Position
    G01451366Courtesy of GENERAL MOTORS CORP.
  5. Remove the folding top pillar bracket bolts with an assistant.
  6. With an assistant, slide the top slightly up and then rearward and out of the pillar bracket.

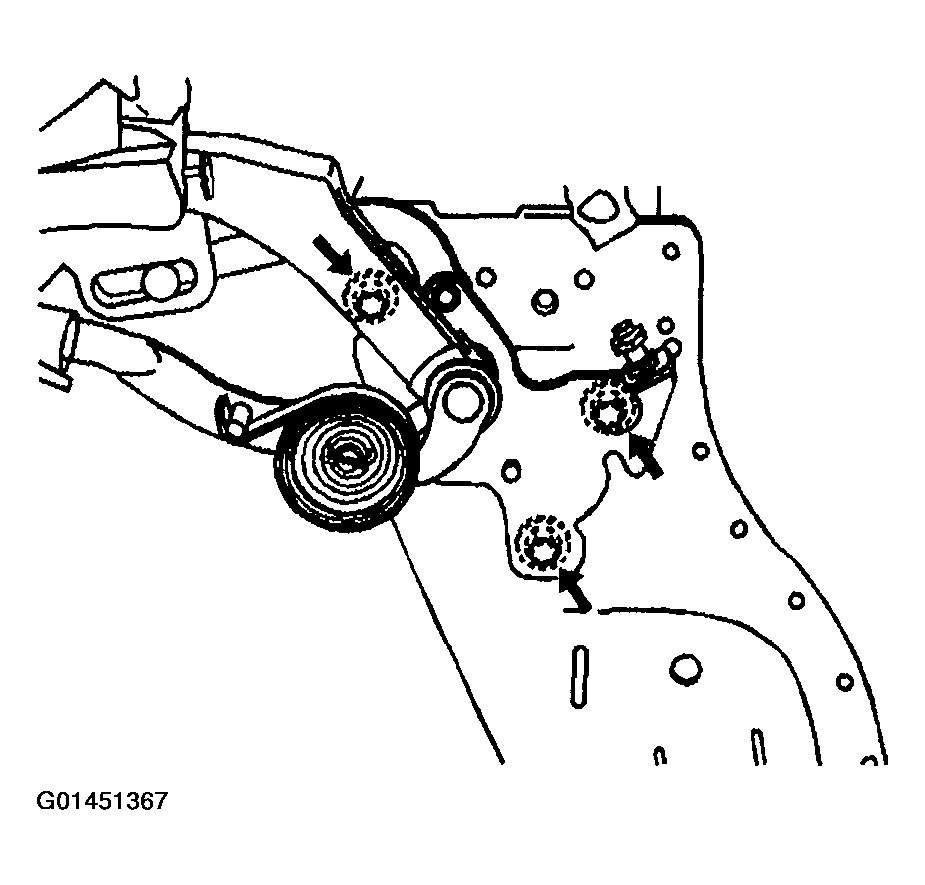

    Fig 2: Folding Top Pillar Bracket Bolts
    G01451367Courtesy of GENERAL MOTORS CORP.
