Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, position the folded top to the vehicle with the top resting on the pillar bracket pin.
  2. Align the folding top to the marks made upon removal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the folding top bolts to the body.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

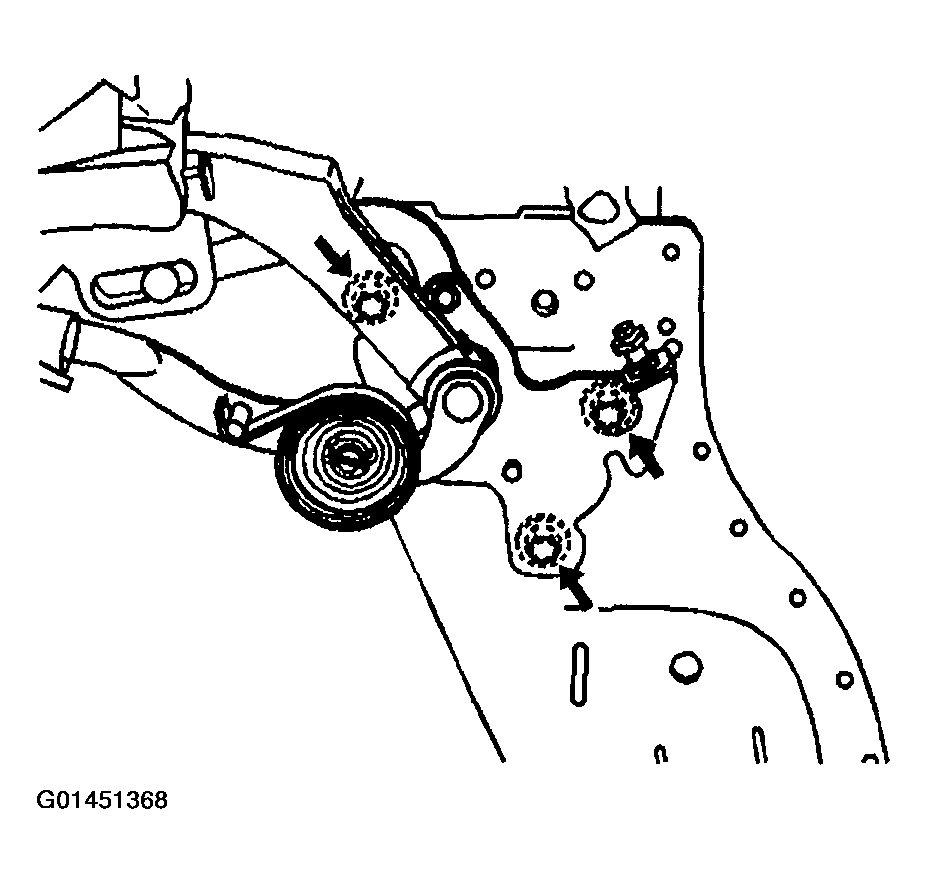

    Fig 1: Folded Top To Vehicle With Top Resting On Pillar Bracket Pin
    G01451368Courtesy of GENERAL MOTORS CORP.
  4. Close and latch the top.
  5. Connect the rear defogger electrical connections.
  6. Install the lock pillar trim panel. Refer to TRIM REPLACEMENT - LOCK PILLAR (UPPER CONVERTIBLE) or TRIM REPLACEMENT - LOCK PILLAR (COUPE) or TRIM REPLACEMENT - LOCK PILLAR (LOWER CONVERTIBLE AND HARD TOP) in Interior Trim.
  7. Check top for proper operation.
  8. Water test the folding top.
    Fig 2: Closing Convertible Top
    G01451369Courtesy of GENERAL MOTORS CORP.
