Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the folding top and place the top upside down on a clean flat surface. Refer to FOLDING TOP REPLACEMENT .
  2. Remove the headliner screws from the rear side rail.
  3. Remove the folding top front and center side rail retainers. Refer to WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (FRONT AND CENTER SIDE RAIL)  or WEATHERSTRIP RETAINER REPLACEMENT - FOLDING TOP (REAR SIDE RAIL) .
  4. Remove the seal compression panel from the #1 bow. Refer to FOLDING TOP SEAL COMPRESSION PANEL REPLACEMENT .
  5. Using a pair of needle-nosed pliers, remove the top cover staples from the #1 bow.
  6. Peel back the top cover to expose the fabric flap on the tension cable bracket.
  7. Remove the headliner screws from the #1 bow.

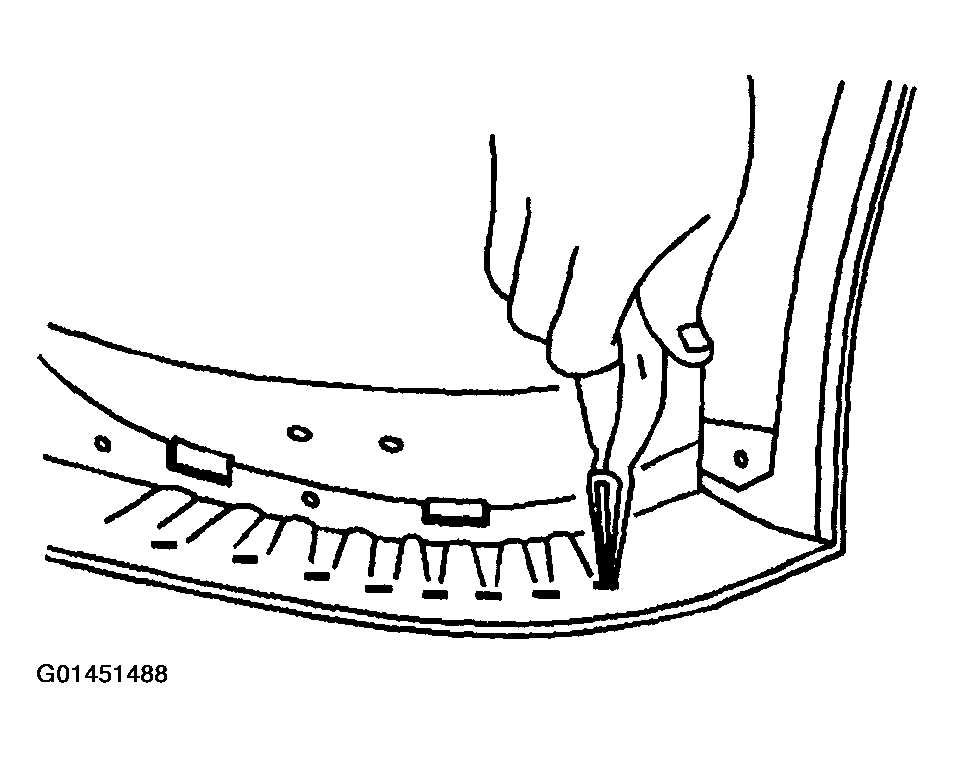

    Fig 1: Top Cover Staples From #1 Bow
    G01451488Courtesy of GENERAL MOTORS CORP.
    Fig 2: Headliner Screws From #1 Bow
    G01451489Courtesy of GENERAL MOTORS CORP.
  8. Remove the headliner push-on retainer from the #1 bow.

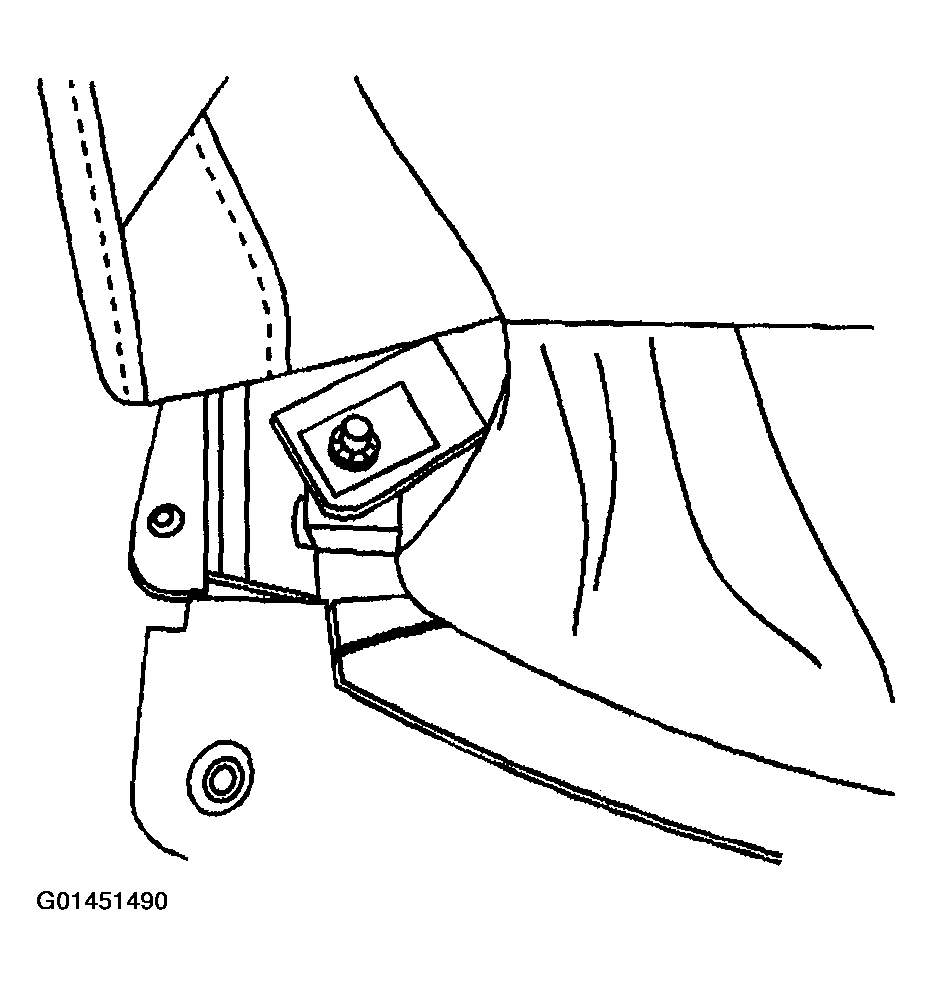

    Fig 3: Headliner Push-On Retainer From #1 Bow
    G01451490Courtesy of GENERAL MOTORS CORP.
  9. Remove the nuts attaching the #1 bow to the front side rail.

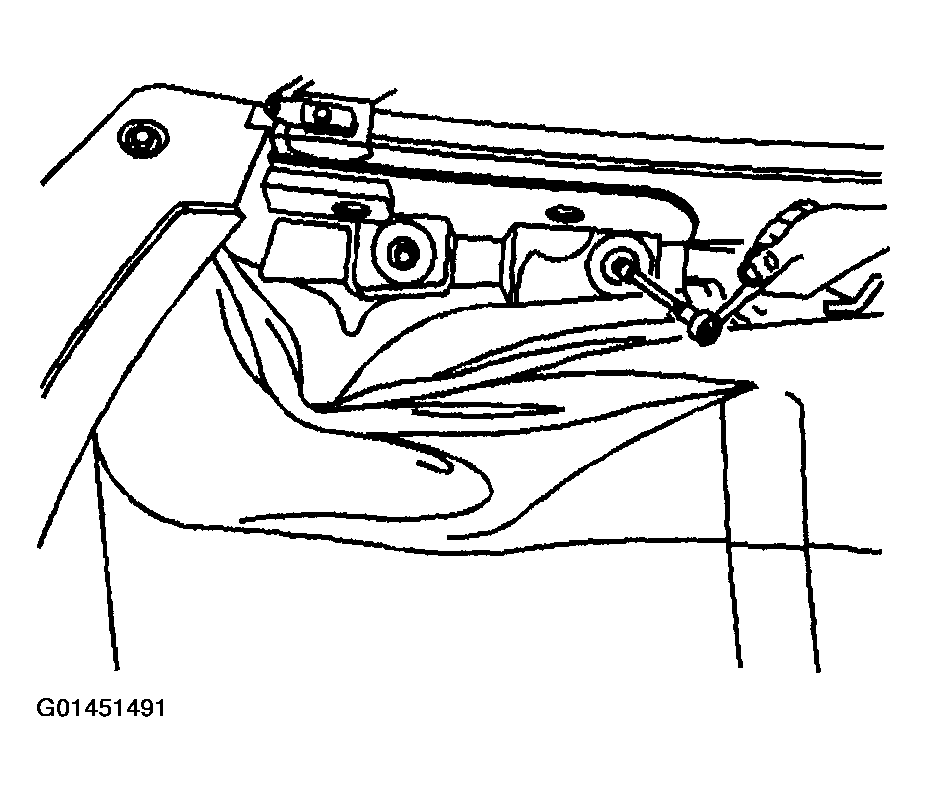

    Fig 4: Nuts Attaching #1 Bow To Front Side Rail
    G01451491Courtesy of GENERAL MOTORS CORP.
  10. Remove the main control link screw from the front side rail.
  11. Remove the main control link screw from the center side rail.
  12. Remove the center rail screw from the rear side rail.
  13. Remove the center rail screw from the balance link.
  14. Remove the front and center rail assembly.
    Fig 5: Main Control Link Screw From Center Side Rail
    G01451492Courtesy of GENERAL MOTORS CORP.
