Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the folding top with the #1 and #5 bow up.

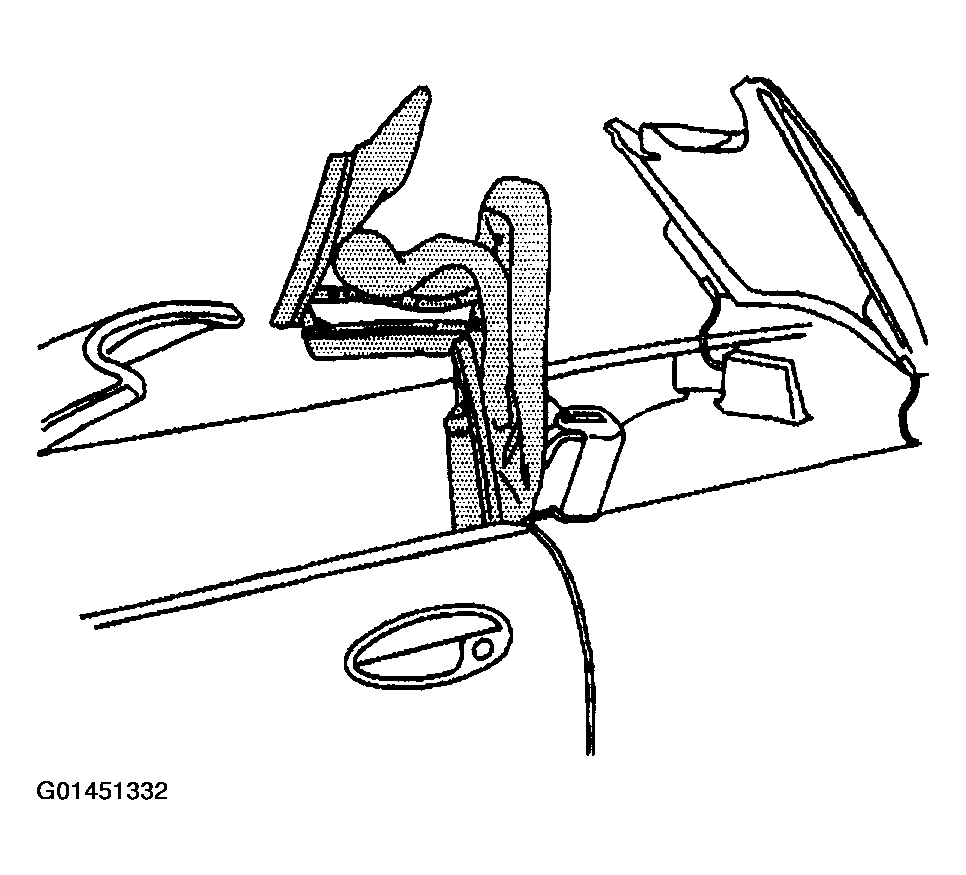

Fig 1: Folding Top
Courtesy of GENERAL MOTORS CORP.
Remove the seal compression panel. Refer to FOLDING TOP SEAL COMPRESSION PANEL REPLACEMENT .
Use a pair of needle nose pliers to remove the top cover staples from the bow.

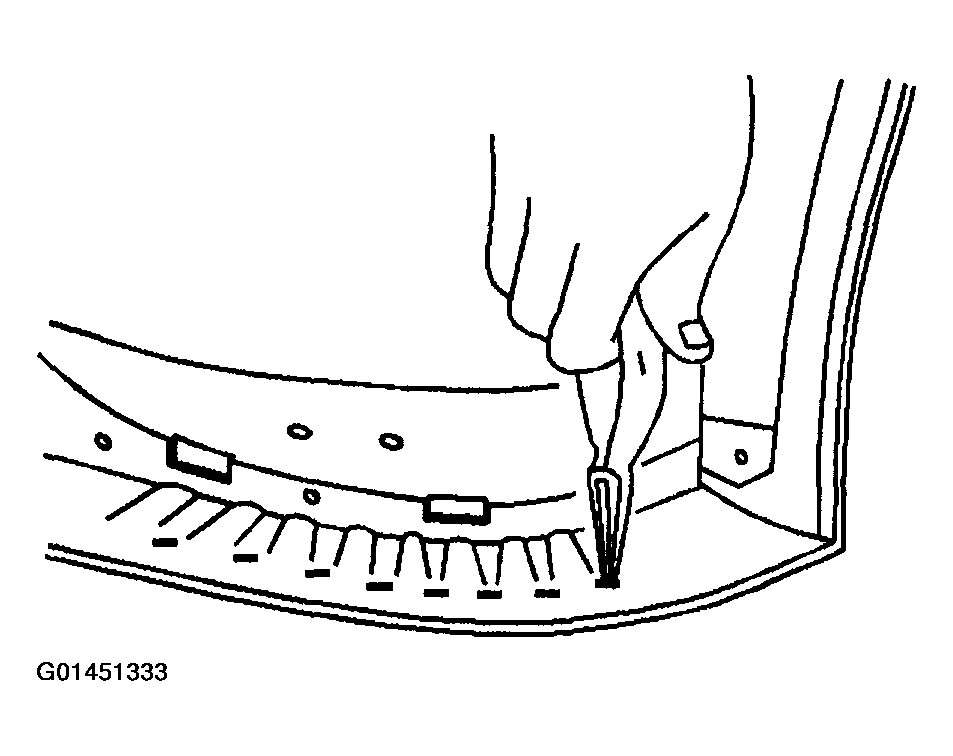

Fig 2: Top Cover Staples From Bow
Courtesy of GENERAL MOTORS CORP.
Use a pair of needle nose pliers to remove the headliner staples from the bow.
CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
From the top of the bow, drill out the rivets from the top cover retainer.
Remove the top cover retainer.

Fig 3: Headliner Staples From Bow
Courtesy of GENERAL MOTORS CORP.
