Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the folding top with the #1 and #5 bow up.
Remove the #5 bow weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FOLDING TOP (FRONT AND CENTER SIDE RAILS) or WEATHERSTRIP REPLACEMENT - FOLDING TOP (REAR SIDE RAIL) or WEATHERSTRIP REPLACEMENT - FOLDING TOP (NUMBER FIVE BOW) .

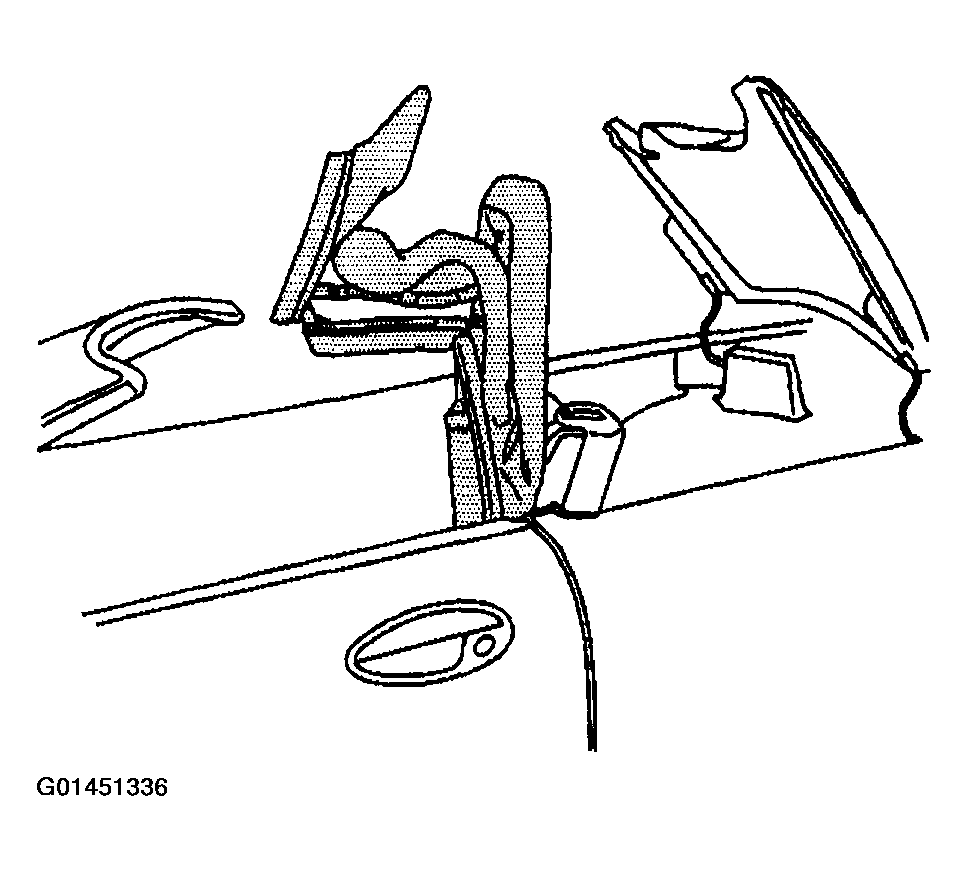

Fig 1: Folding Top
Courtesy of GENERAL MOTORS CORP.
Use a pair of needle nose pliers to remove the top cover staples to the bow.

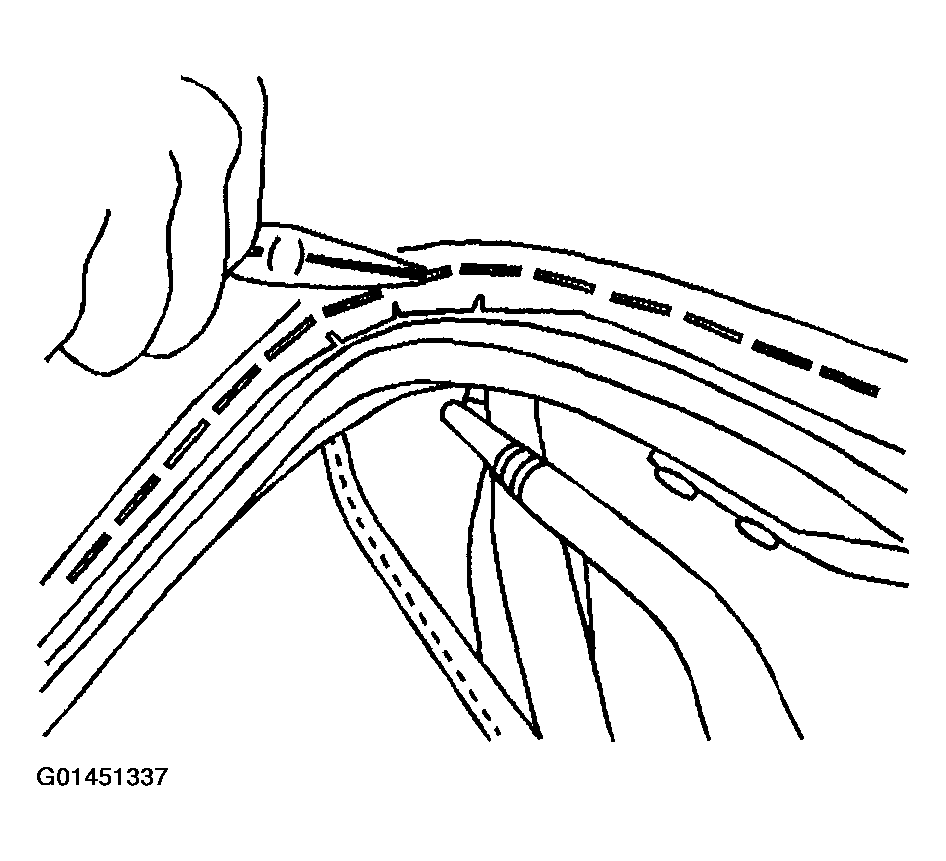

Fig 2: Top Cover Staples From Bow
Courtesy of GENERAL MOTORS CORP.
Pull top cover away from the bow.
Use a pair of needle nose pliers to remove the stay pad staples from the bow.
CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
From the top of the bow, drill out the rivets from the top cover retainers.
Remove the top cover retainers.

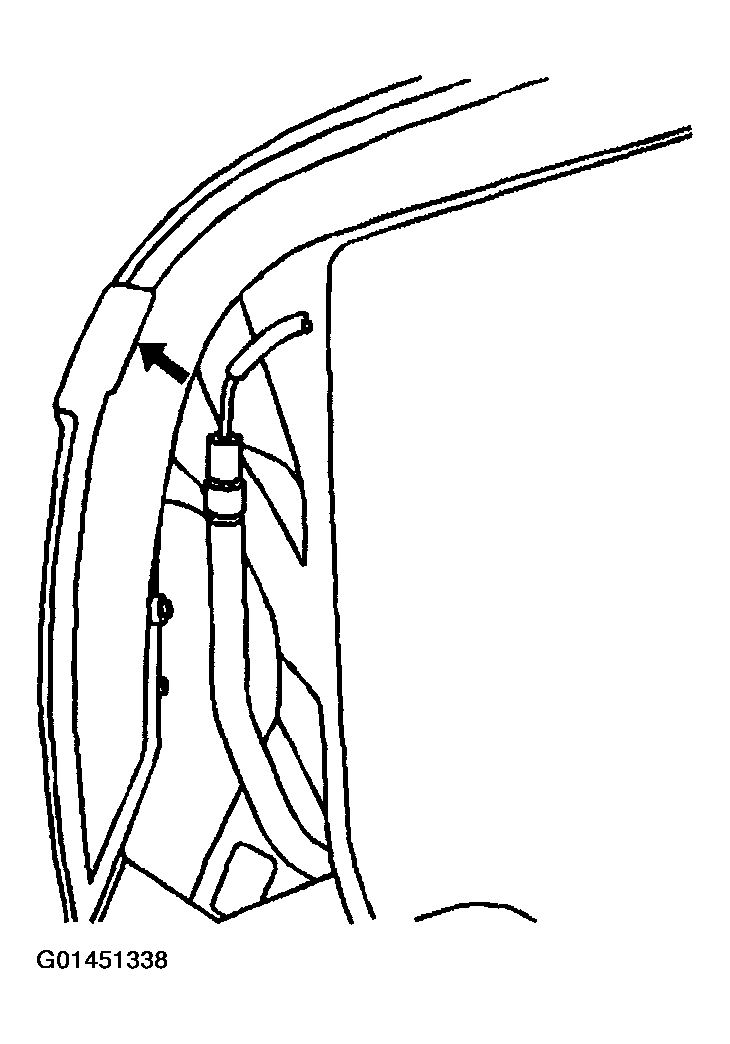

Fig 3: Top Cover Retainers
Courtesy of GENERAL MOTORS CORP.
