Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

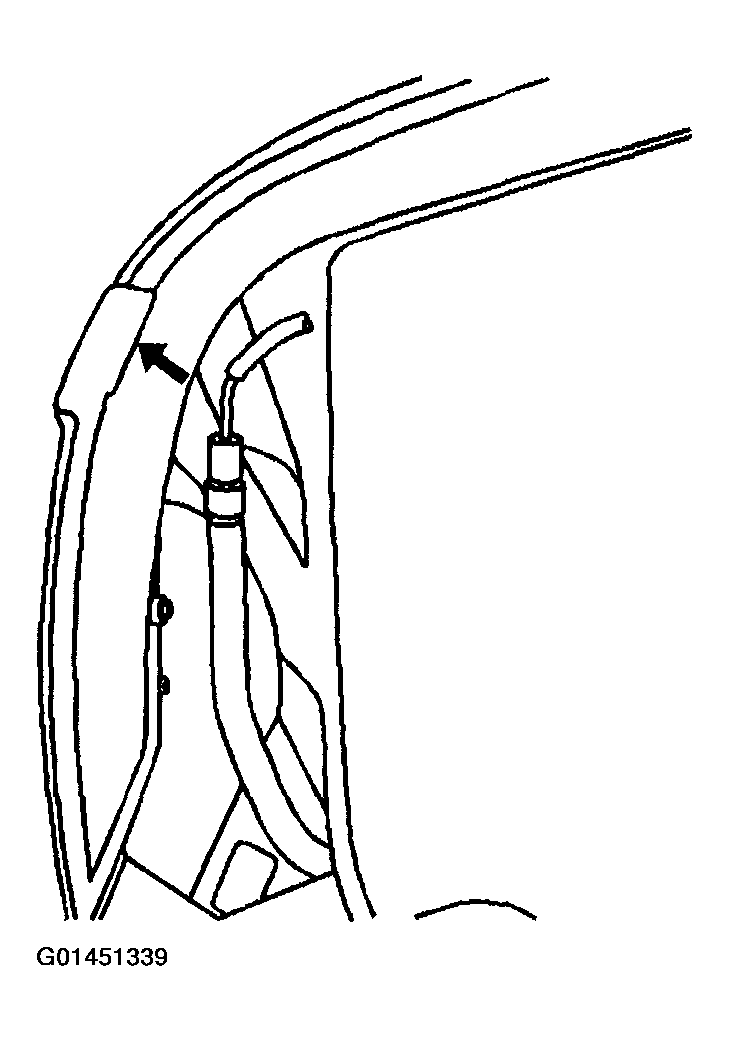

- Install the top cover retainers to the #5 bow.
- Using the rivets provided, push the shank of the rivet through the retainer. With an assistant install the rivet into the bow using a large tapered punch, hammer until the rivet is flush.
- Staple the stay pad to the #5 bow.
- Before stapling the top cover to the #5 bow, refer to FOLDING TOP COVER TENSION ADJUSTMENT - REAR .
- Return the folding top to the original position.
