Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the top with the #1 bow and the #5 bow up, and open the stowage compartment.

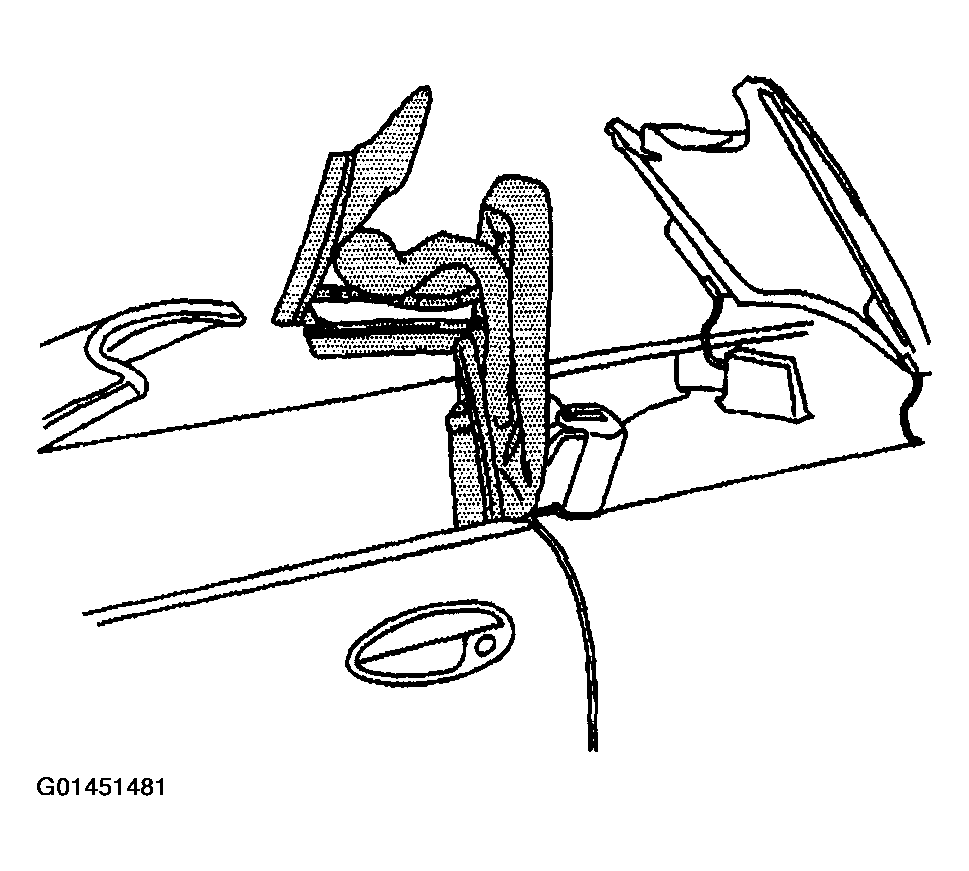

    Fig 1: Positioning Folding Top With #1 Bow And #5 Bow Up
    G01451481Courtesy of GENERAL MOTORS CORP.
  2. Grasp the clock spring with vice grips or pliers, and remove the spring end from the roof link pin.
  3. Remove the nut.
  4. Remove the clock spring and the pin.

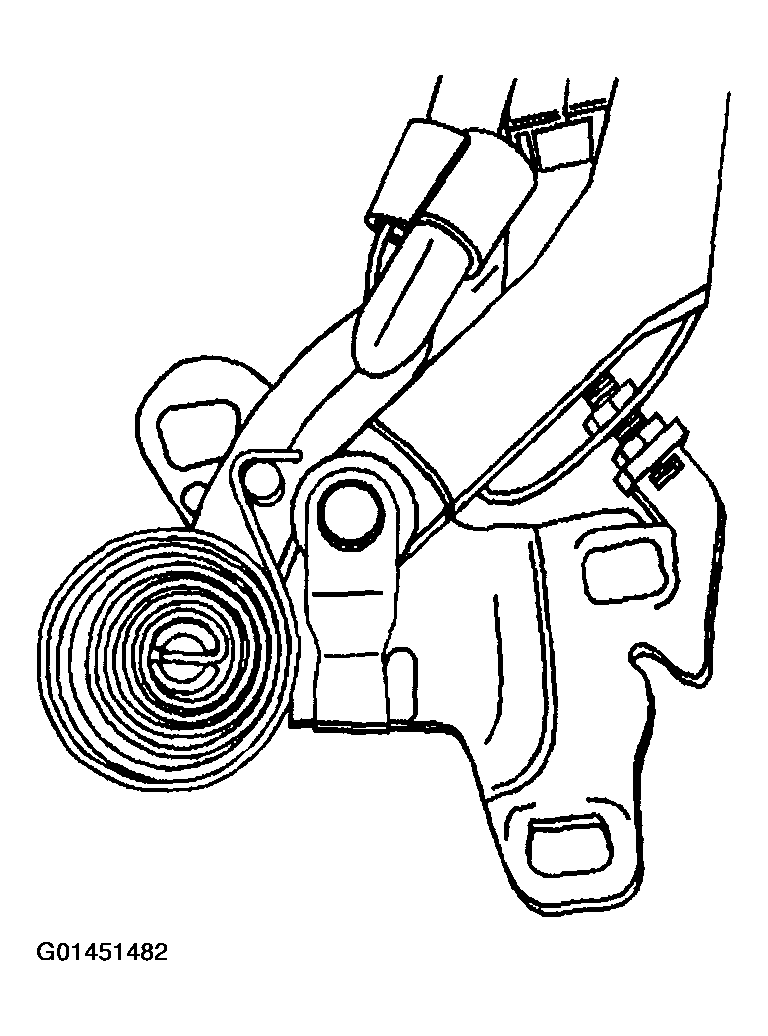

    Fig 2: Clock Spring & Pin
    G01451482Courtesy of GENERAL MOTORS CORP.
