Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flat washer, the bushing, and the gripper washer to the clock spring pin.
  2. Install the clock spring with pin to the arm.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the clock spring nut.

    Tighten

    Tighten the nut to 4 N.m (35 lb in).

  4. Grasp the end of the clock spring with vice grips or pliers.
  5. Wind the clock spring and insert the end of the spring into the roof link pin.
  6. Reposition the folding top to the original position.

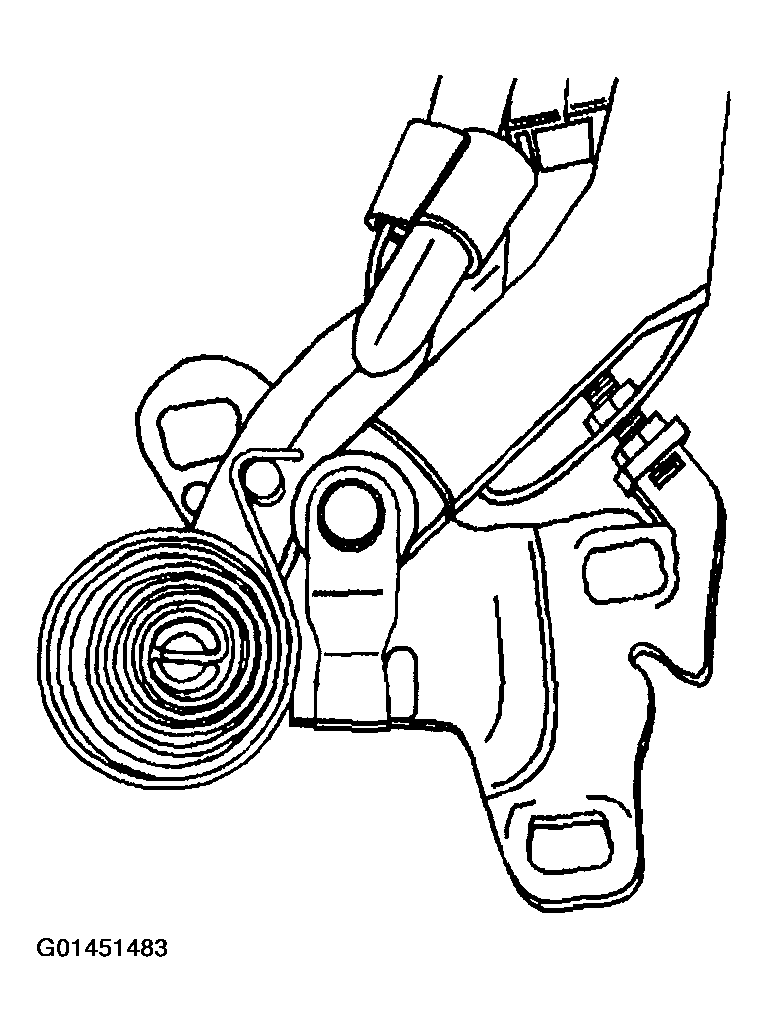

    Fig 1: Clock Spring With Pin To Arm
    G01451483Courtesy of GENERAL MOTORS CORP.
