Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

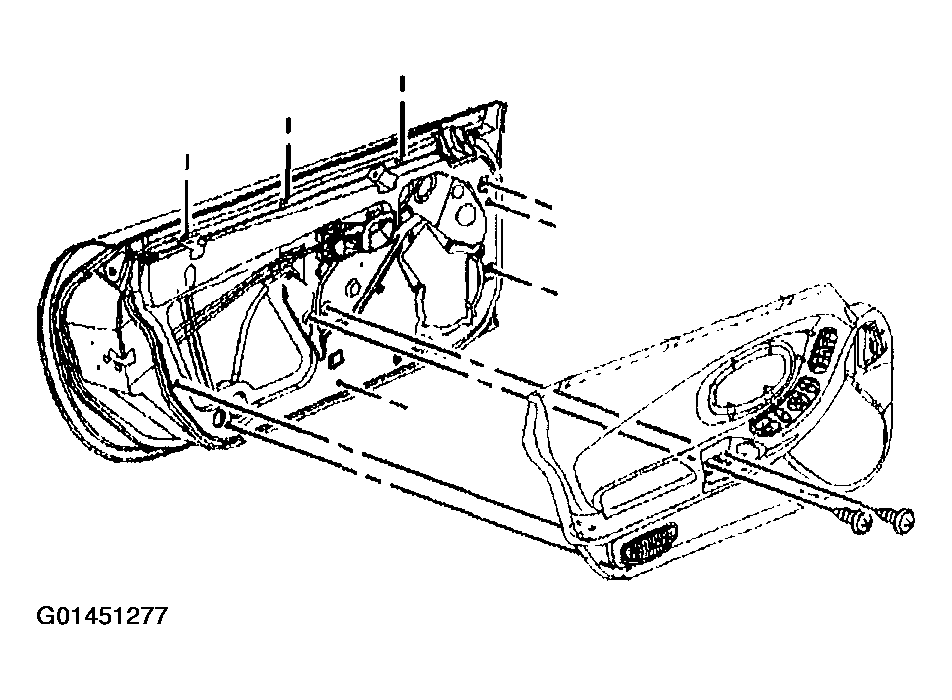

Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

Fig 1: Door Trim Panel
Courtesy of GENERAL MOTORS CORP.

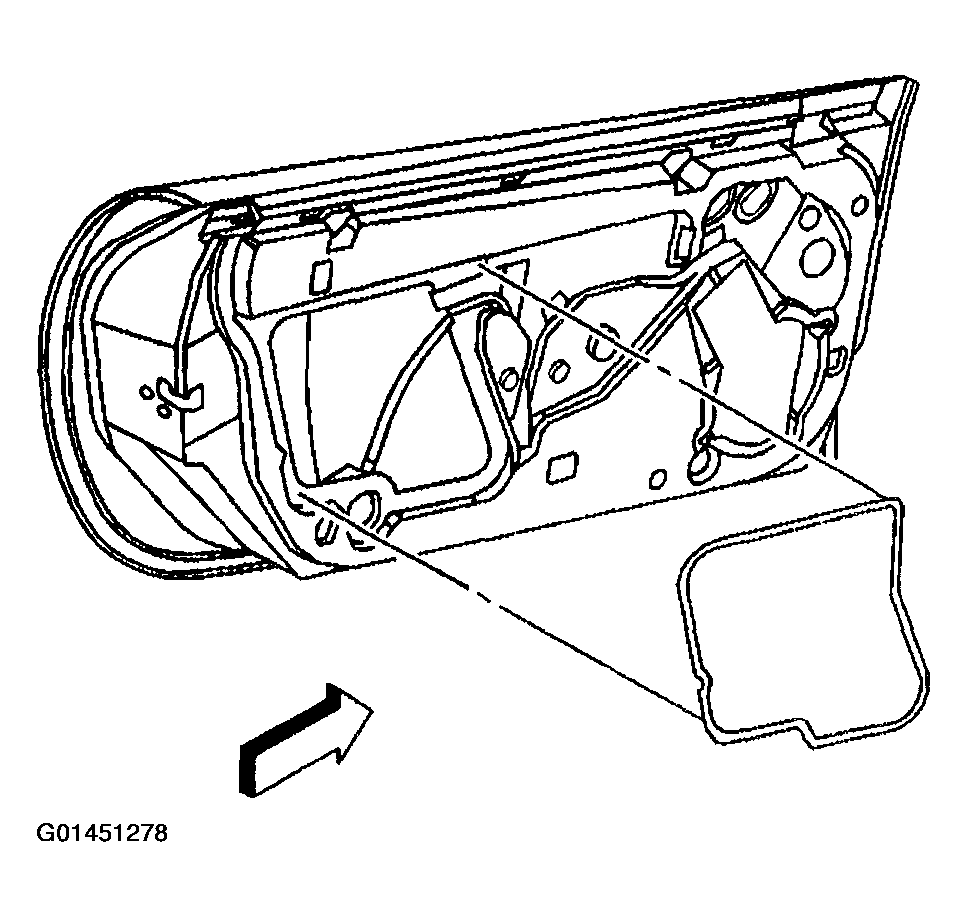

Remove the water deflector.

Fig 2: Water Deflector
Courtesy of GENERAL MOTORS CORP.

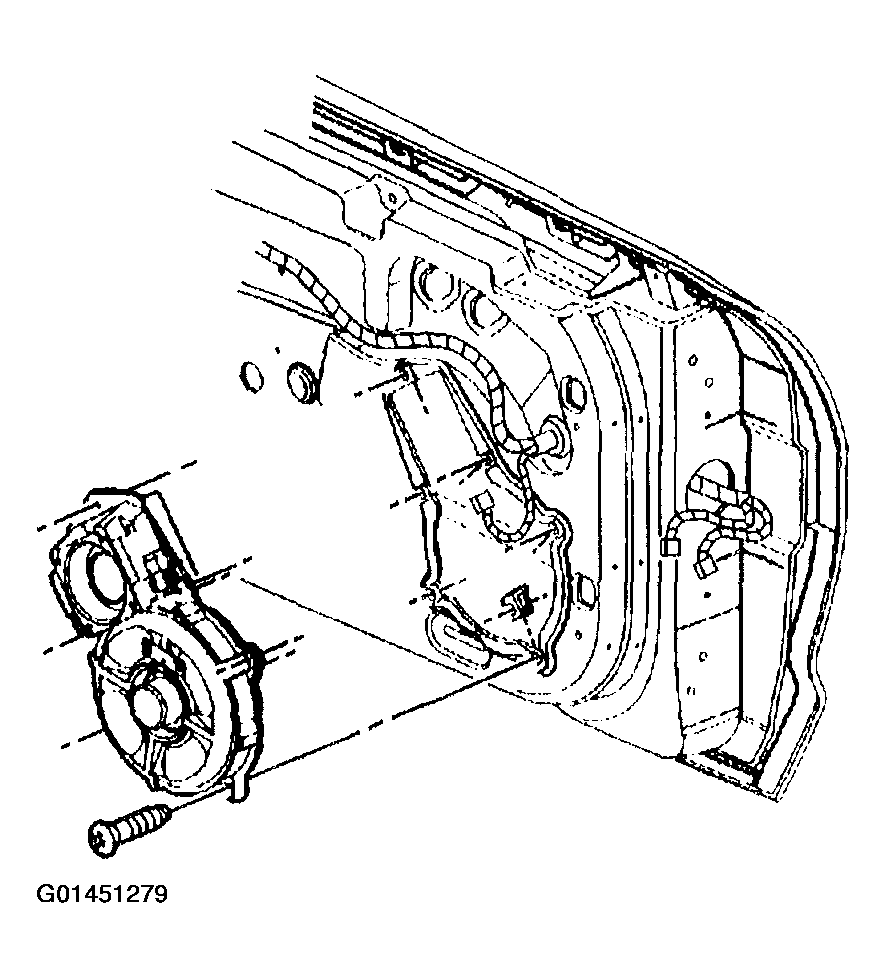

Remove the door radio speaker assembly.
- Remove the screws mounting the speaker assembly.
- Disconnect the electrical/audio connector.

  Fig 3: Door Radio Speaker Assembly
  Courtesy of GENERAL MOTORS CORP.

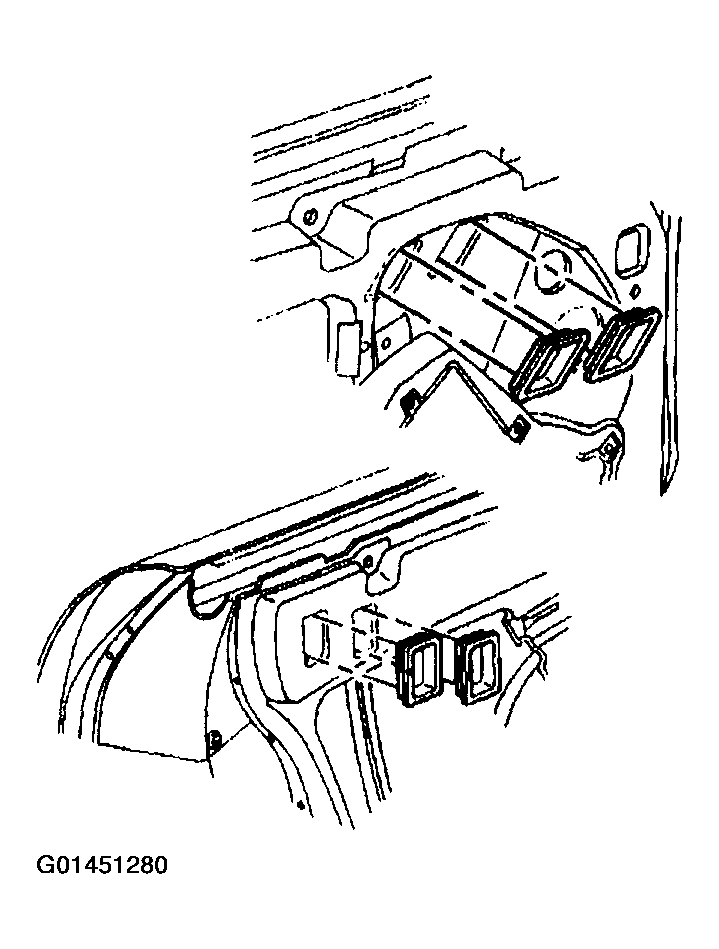

Remove the window clamp sight access plugs.

Fig 4: Window Clamp Sight Access Plugs
Courtesy of GENERAL MOTORS CORP.

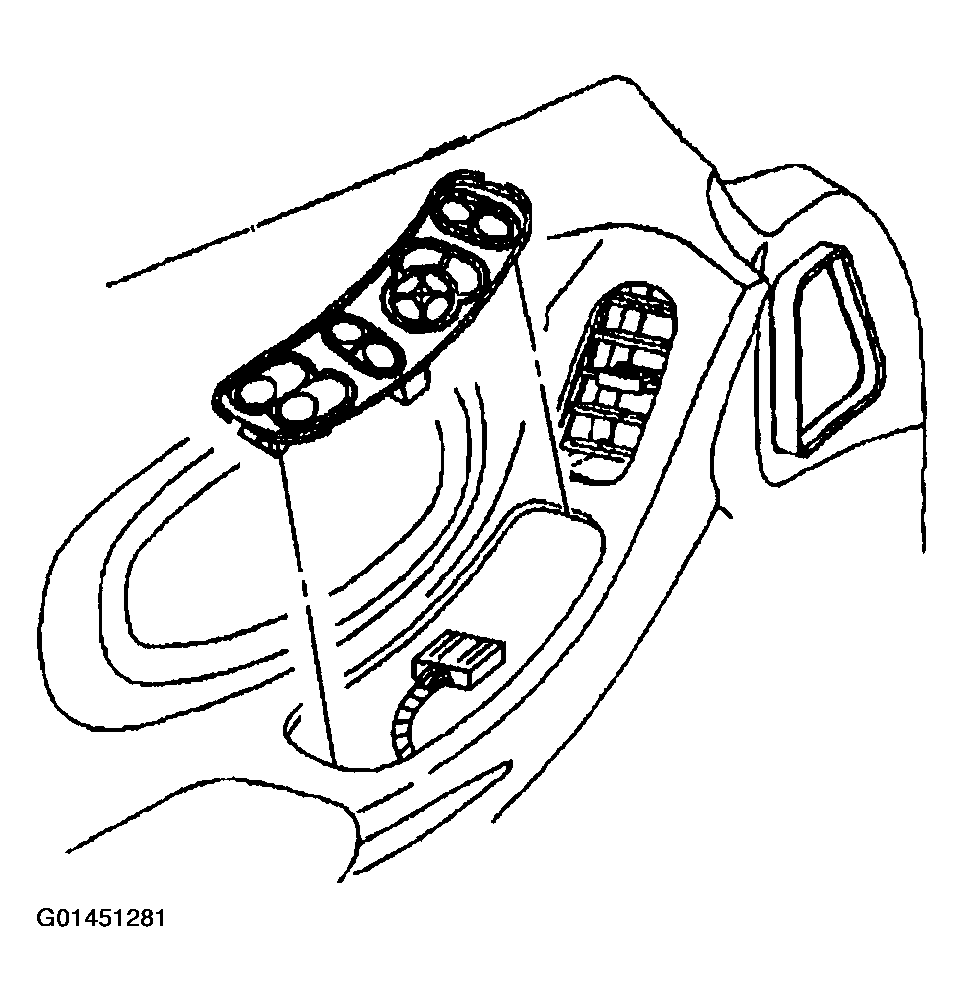

Reconnect the window switch.
Reposition the window full up to access the window clamp nuts.
Disconnect the window switch.

Fig 5: Disconnecting Window Switch
Courtesy of GENERAL MOTORS CORP.
Mark the location of the window.
Loosen the window clamp nuts.
Remove the window through the top opening of the door.

Fig 6: Removing Window Through Top Opening Of Door
Courtesy of GENERAL MOTORS CORP.
