Window Height Adjustment - Door Major

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to EXPRESS WINDOW DOWN CAUTION in Cautions and Notices.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

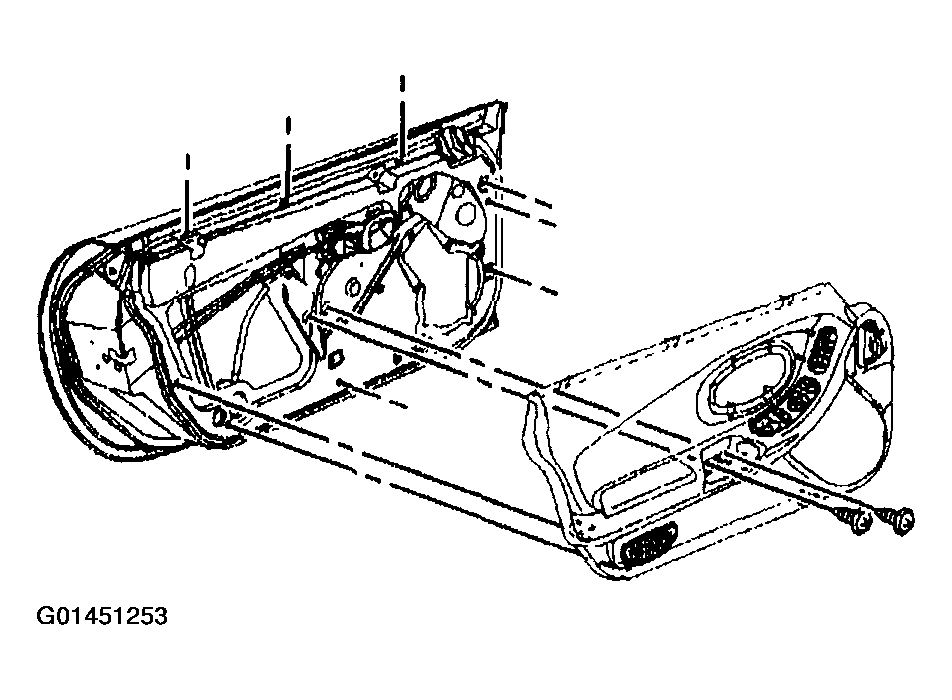

    Fig 1: Door Trim Panel
    G01451253Courtesy of GENERAL MOTORS CORP.
  2. Reconnect the window switch to the harness.
  3. Raise the door window.
  4. Disconnect the window switch from the harness.

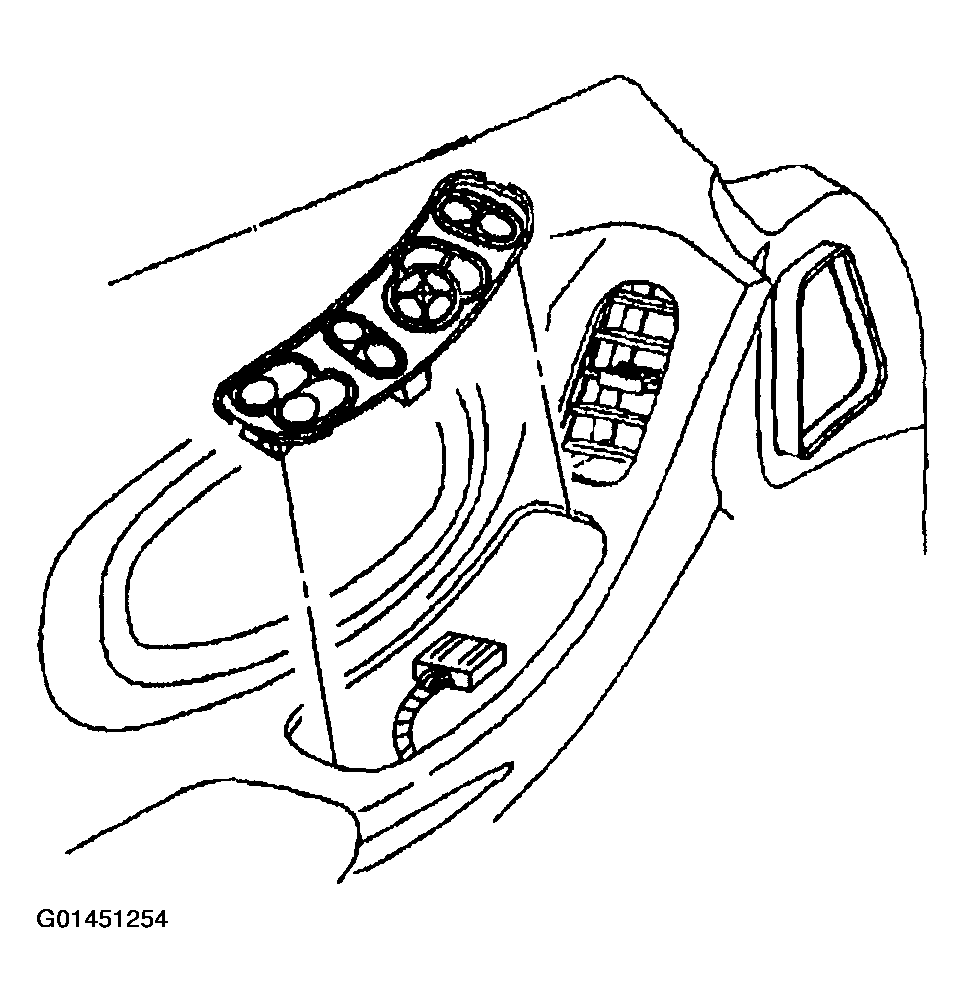

    Fig 2: Disconnecting Window Switch From Harness
    G01451254Courtesy of GENERAL MOTORS CORP.
  5. Remove the window clamp sight access plugs.

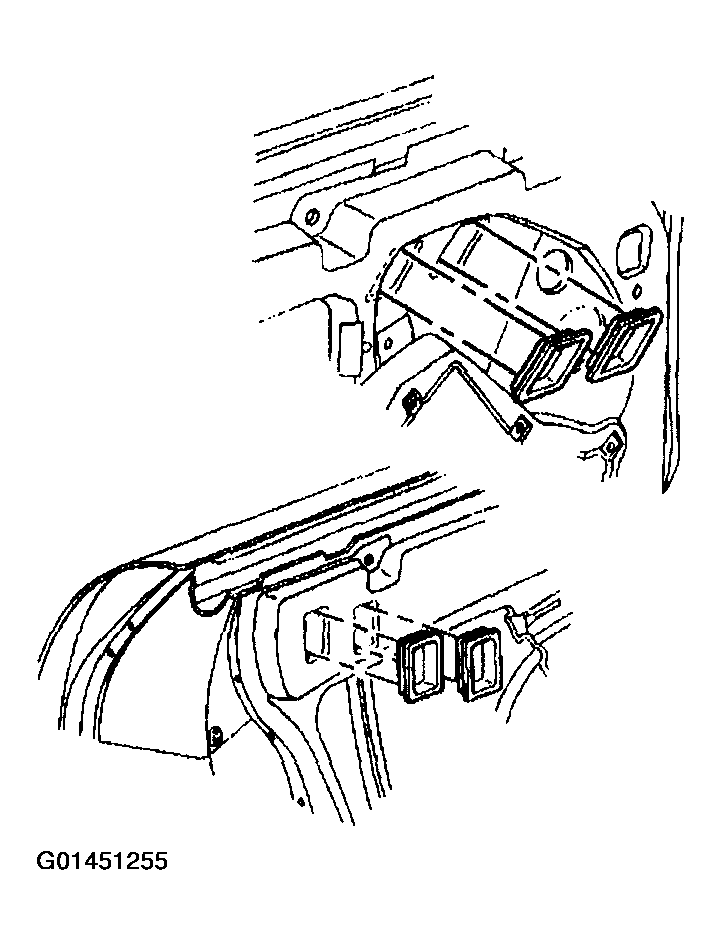

    Fig 3: Window Clamp Sight Access Plugs
    G01451255Courtesy of GENERAL MOTORS CORP.
  6. Loosen the window clamps.
  7. Close the door.
  8. With the aid of an assistant standing outside of the vehicle, position the window to the door opening.
  9. From the inside of the vehicle tighten the window clamps.
    Fig 4: Window Clamps
    G01451256Courtesy of GENERAL MOTORS CORP.
  10. Open the door and install the window clamp sight access plugs.

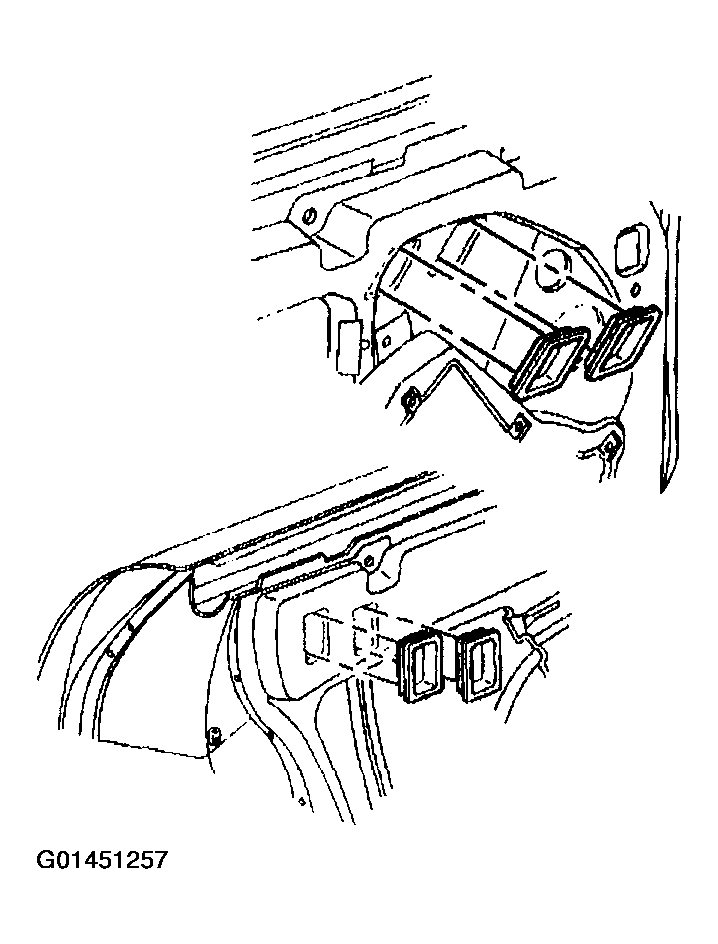

    Fig 5: Window Clamp Sight Access Plugs
    G01451257Courtesy of GENERAL MOTORS CORP.
  11. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  12. Perform minor height and minor tip-in adjustments as necessary. Refer to WINDOW TIP-IN ADJUSTMENT - DOOR  and WINDOW HEIGHT ADJUSTMENT - DOOR MINOR .

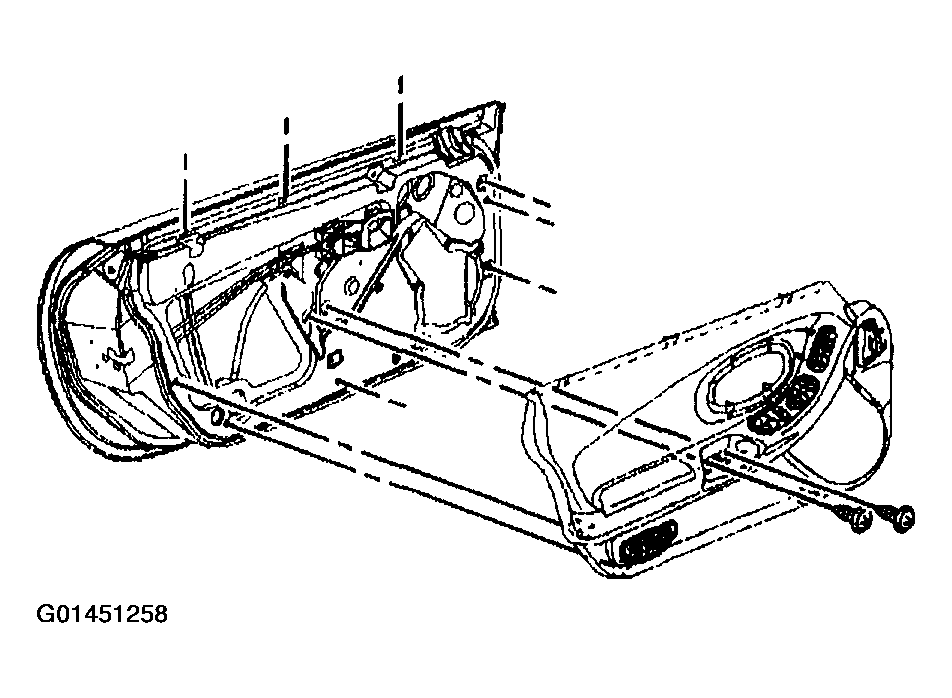

    Fig 6: Door Trim Panel
    G01451258Courtesy of GENERAL MOTORS CORP.
