Window Adjustment - Door

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
Reconnect the window switch to the door harness.
Raise the window.
Disconnect the window switch from the harness.
Remove the window clamp sight access plugs.

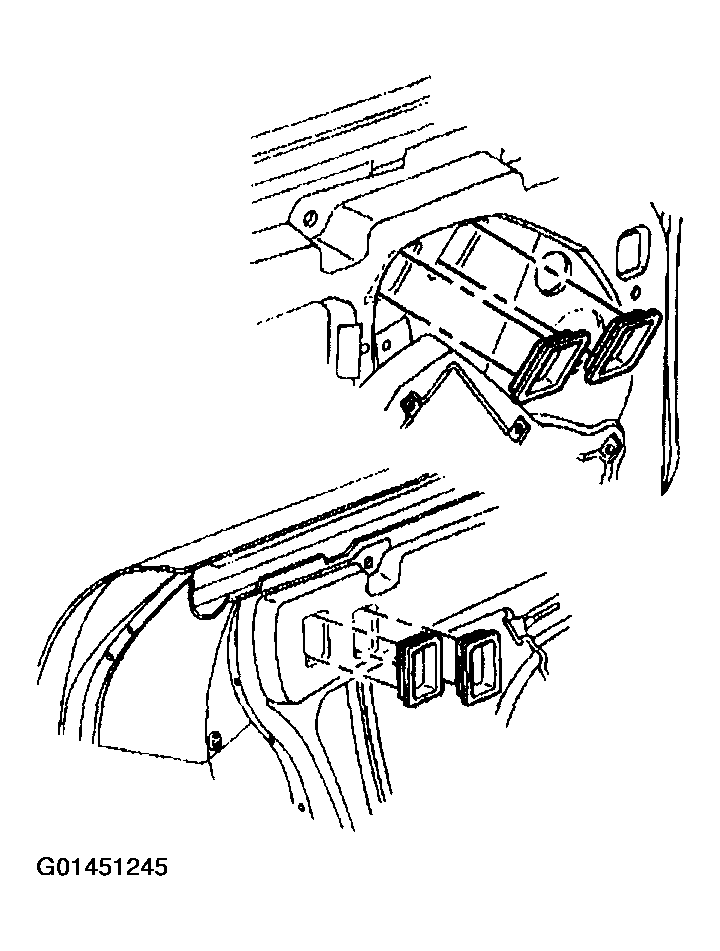

Fig 1: Window Clamp Sight Access Plugs
Courtesy of GENERAL MOTORS CORP.
Mark the location of the clamps on the window.
Loosen the window clamp bolts.
Jiggle the window to break the window loose from the clamps rubber seals.
Adjust the window using one of the following methods:
- Put a socket on the clamp bolt and use the socket to move the window.
  1. Adjust the window forward or reward first.
  2. Adjust the front height second.
  3. Adjust the rear height last.
- Sit in the vehicle with the door closed and with the aid of an assistant standing outside of the vehicle, position the window in the door opening.
  1. Adjust the window forward or reward first.
  2. Adjust the front height second.
  3. Adjust the rear height last.

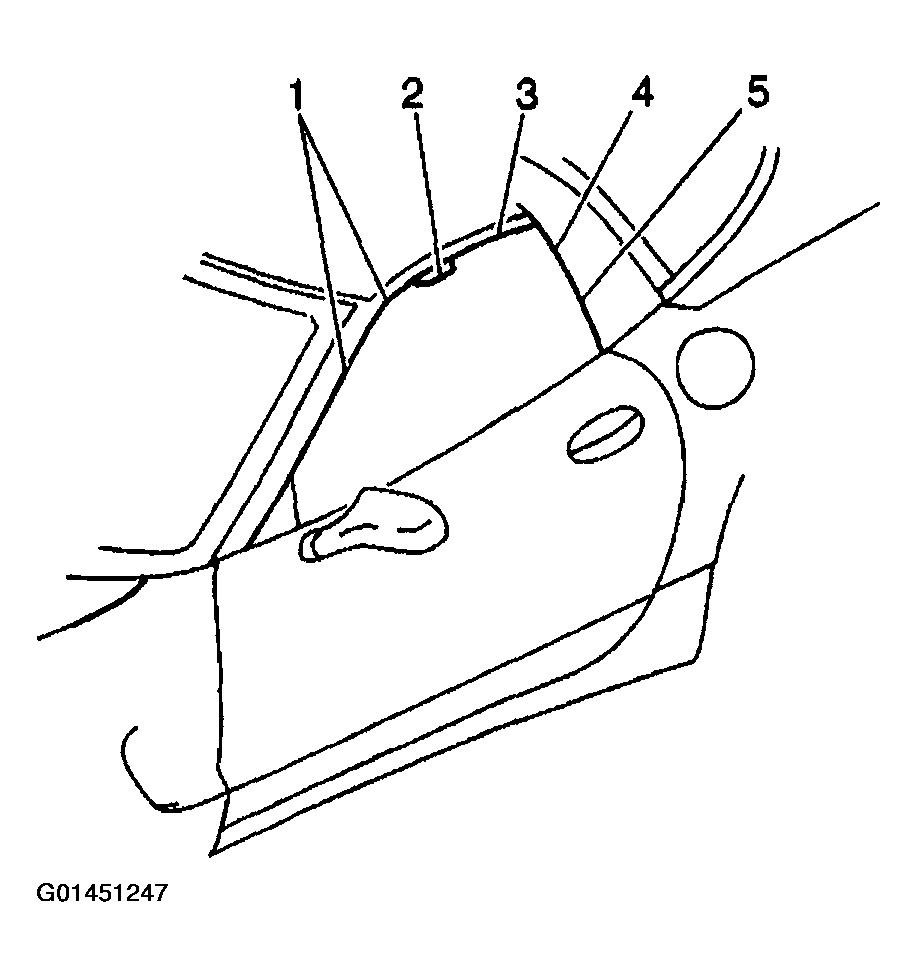

  Fig 2: Adjusting Window
  Courtesy of GENERAL MOTORS CORP.
Slide the window in the window clamps as necessary.
- The gap to the reveal molding (1) should be 5 to 8 mm (0.2 to 0.3 in).
- The gap to the retainer (3) should be 5 to 8 mm (0.2 to 0.3 in).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten the window clamps.
Tighten

Tighten the window regulator window clamp bolts to 10 N.m (89 lb in).

Fig 3: Sliding Window In Window Clamps
Courtesy of GENERAL MOTORS CORP.
Open the door and install the window clamp sight access plugs.
Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
Perform minor height and minor tip-in adjustments as necessary. Refer to WINDOW TIP-IN ADJUSTMENT - DOOR and WINDOW HEIGHT ADJUSTMENT - DOOR MINOR .

Fig 4: Window Clamp Sight Access Plugs
Courtesy of GENERAL MOTORS CORP.
