Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-pin retainers from the ends of the weatherstrip.
  2. Pull the weatherstrip from the full length of the door.
  3. Remove any weatherstrip retainers that remain in the door. The new weatherstrip comes with retainers.

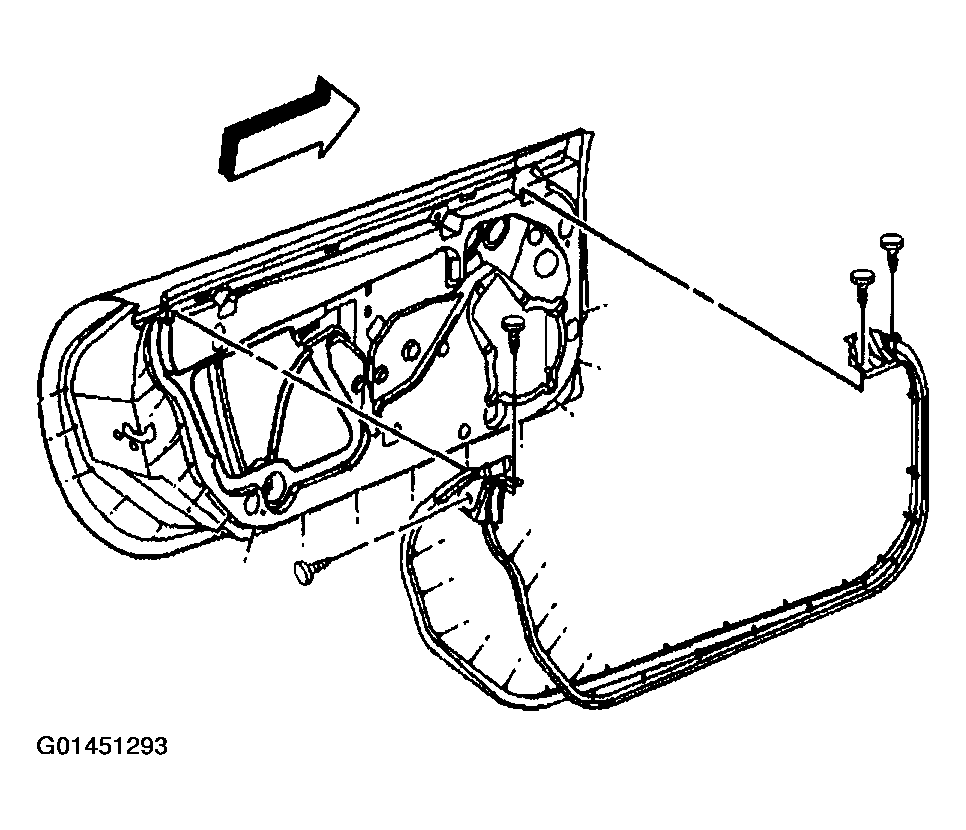

    Fig 1: Removing Push-Pin Retainers From Ends Of Weatherstrip
    G01451293Courtesy of GENERAL MOTORS CORP.
