Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

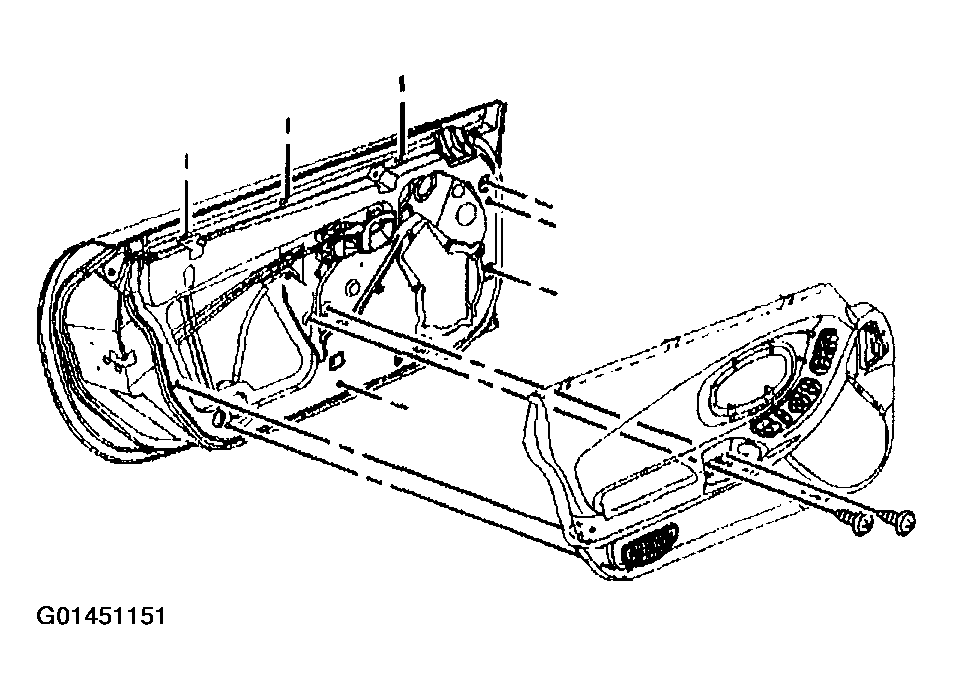

    Fig 1: Door Trim Panel
    G01451151Courtesy of GENERAL MOTORS CORP.
  2. Peel the water deflector from the door inner panel.

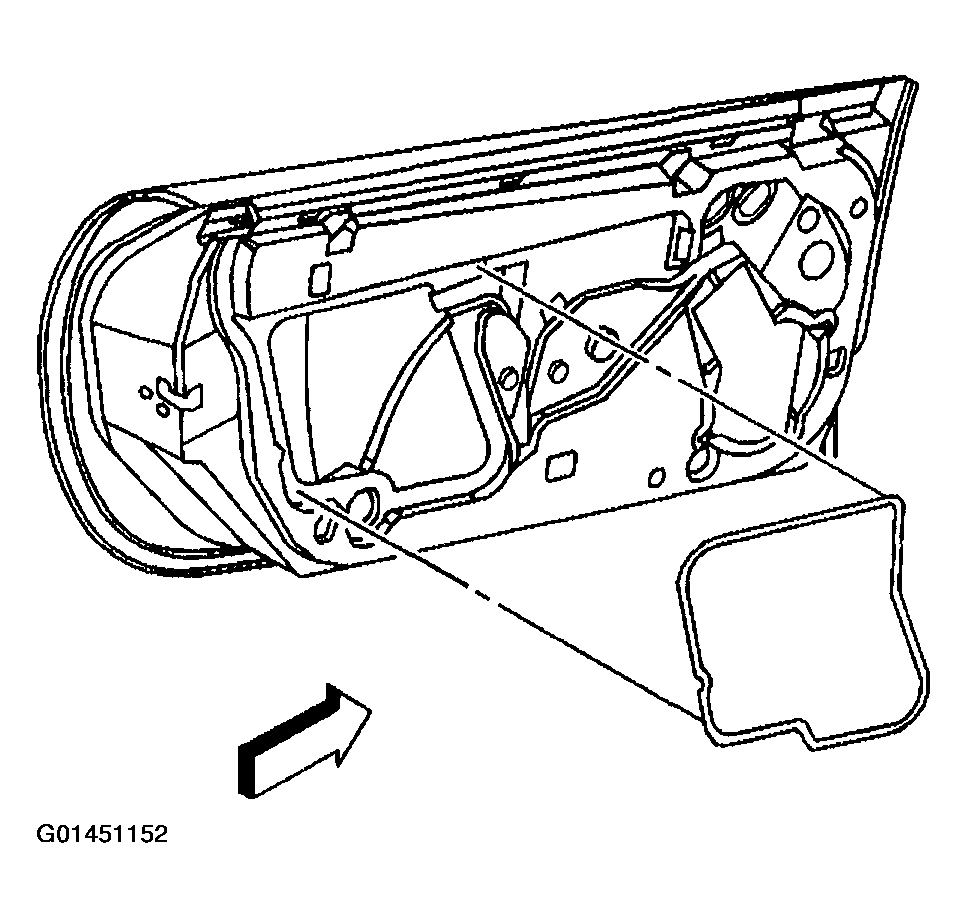

    Fig 2: Removing Water Deflector From Door Inner Panel
    G01451152Courtesy of GENERAL MOTORS CORP.
