Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the striker cover. Pull the cover loose from hook and loop fastener patches.

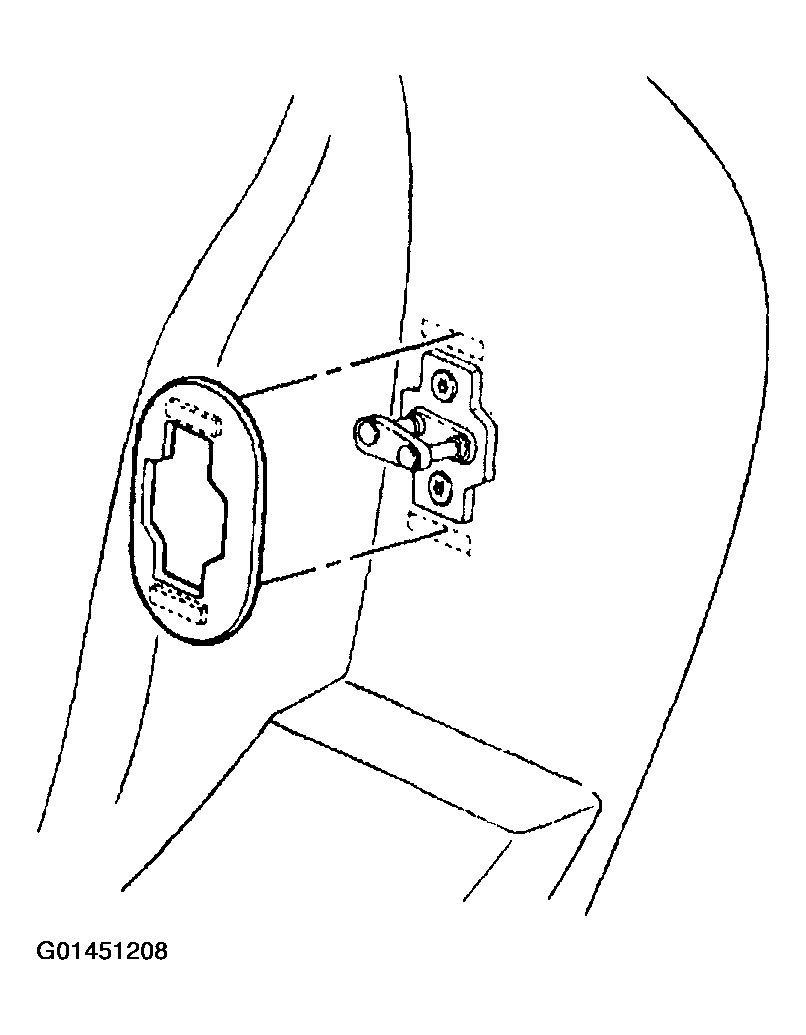

    Fig 1: Door Striker Cover
    G01451208Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws attaching the striker.
  3. Remove the shims and the striker.

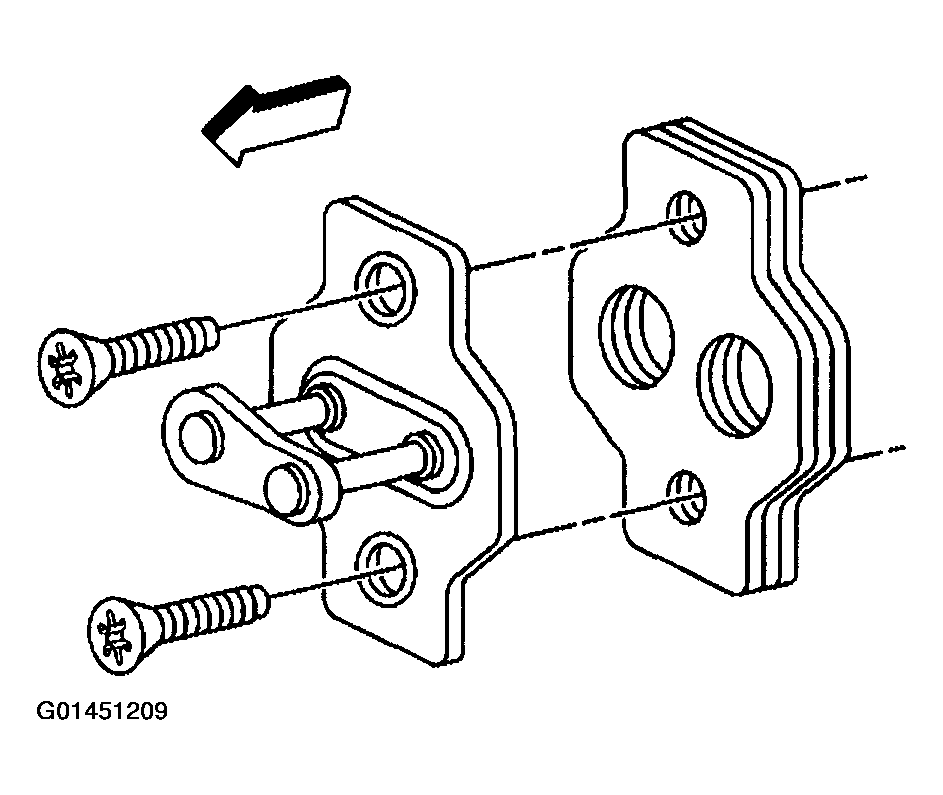

    Fig 2: Shims & Striker
    G01451209Courtesy of GENERAL MOTORS CORP.
