Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

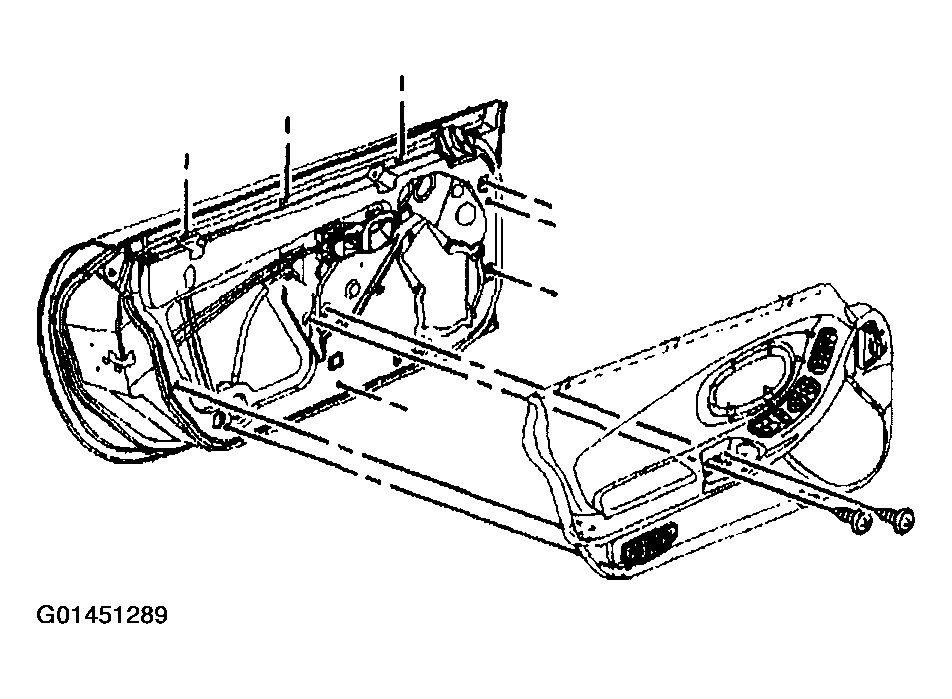

    Fig 1: Door Trim Panel
    G01451289Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw from the front of the sealing strip.
  3. Slide the strip rearward.
  4. Pull the sealing strip retainers from the holes in the door.

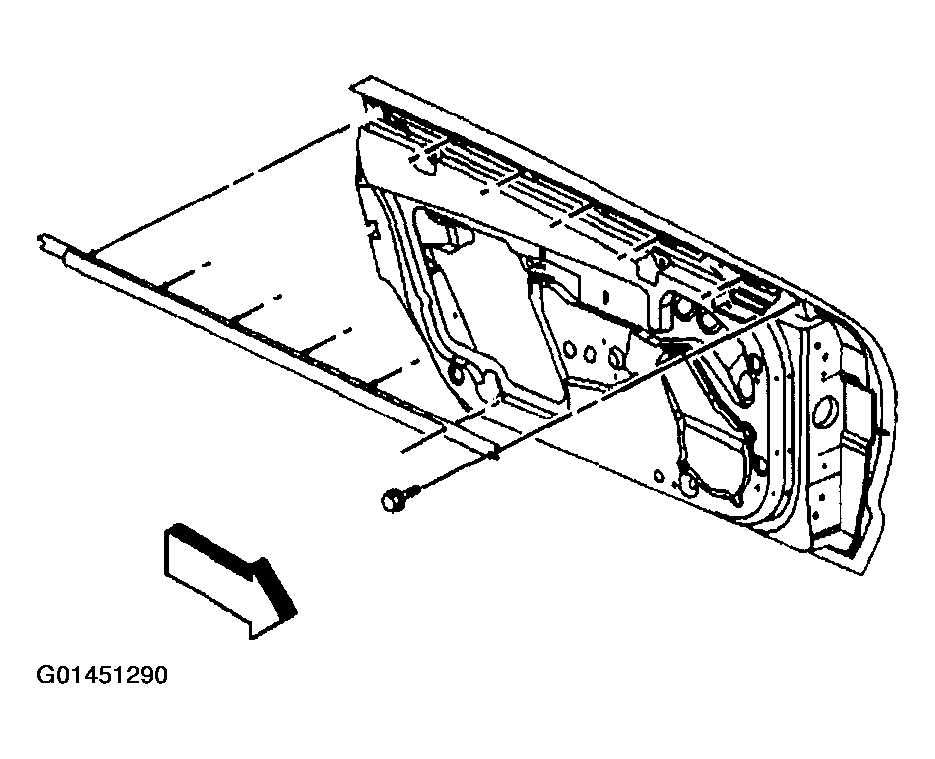

    Fig 2: Sealing Strip Retainers From Holes In Door
    G01451290Courtesy of GENERAL MOTORS CORP.
