Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside door handle (1). Refer to DOOR HANDLE REPLACEMENT - OUTSIDE .
  2. Remove the clip (2) retaining the lock cylinder lever.
  3. Remove the lever (3) from the rear of the lock cylinder.
  4. Pry up on the lock cylinder retaining clip (6).
  5. Remove the lock cylinder.

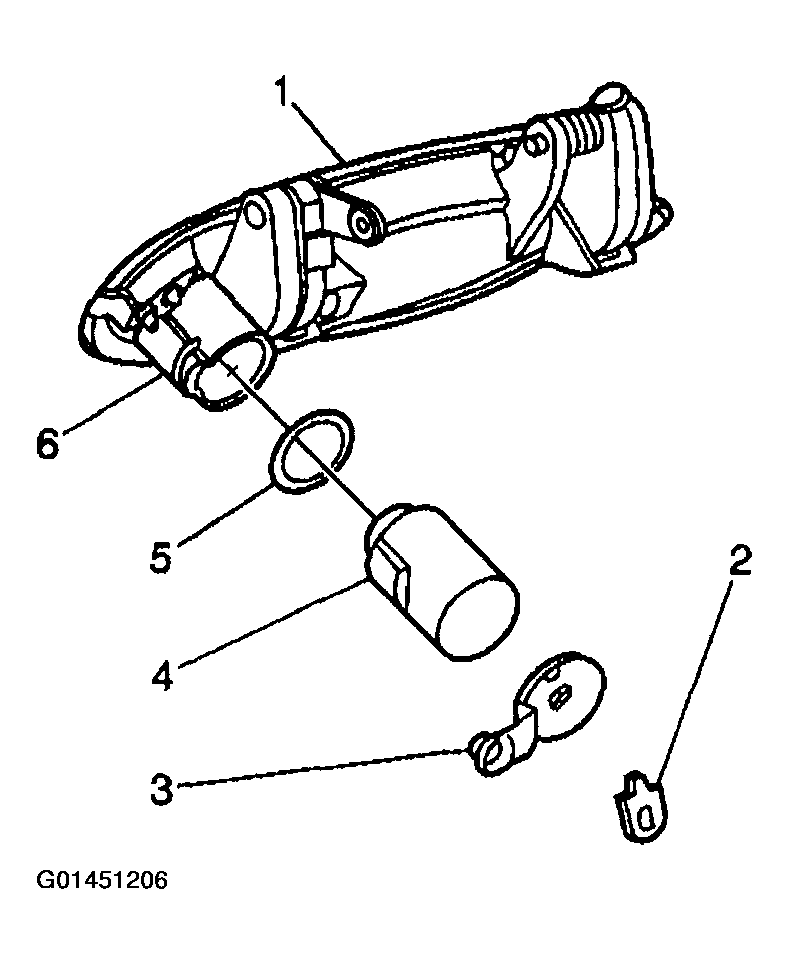

    Fig 1: Door Lock Cylinder
    G01451206Courtesy of GENERAL MOTORS CORP.
