Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the location of the hinge on the door and on the hinge pillar.
  2. Support the door.

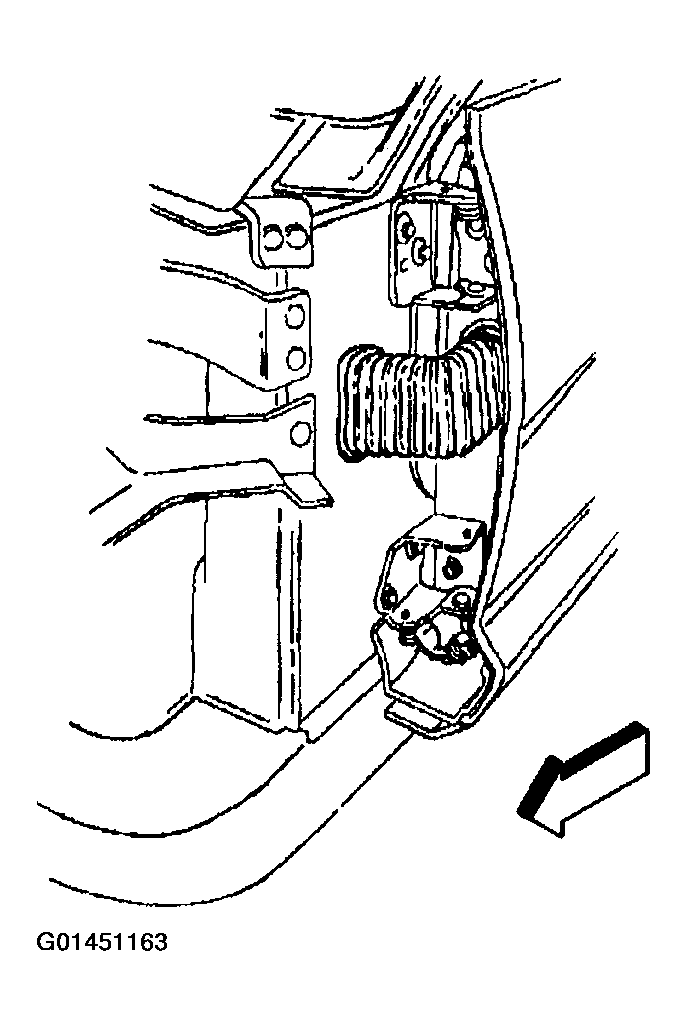

    Fig 1: Identifying Harness Grommet At Edge Of Opening In Hinge Pillar
    G01451163Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts securing the hinge to the hinge pillar.

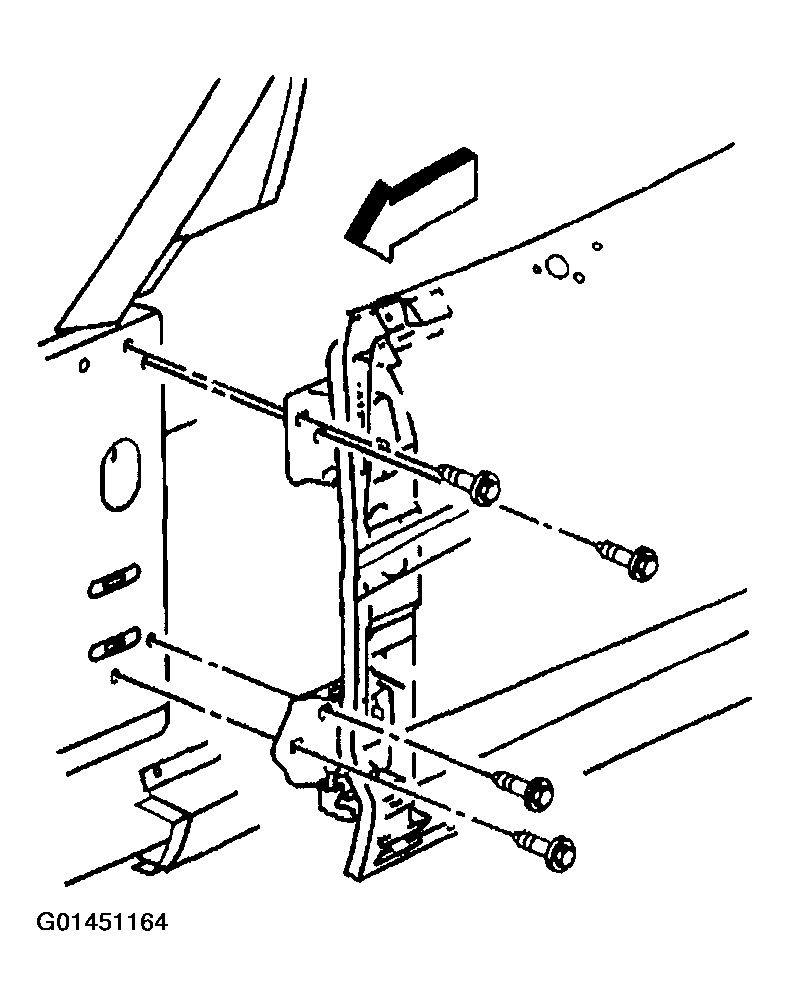

    Fig 2: Removing Bolts Securing Hinge To Hinge Pillar
    G01451164Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts securing the hinge to the door.
  5. Remove the door hinge.

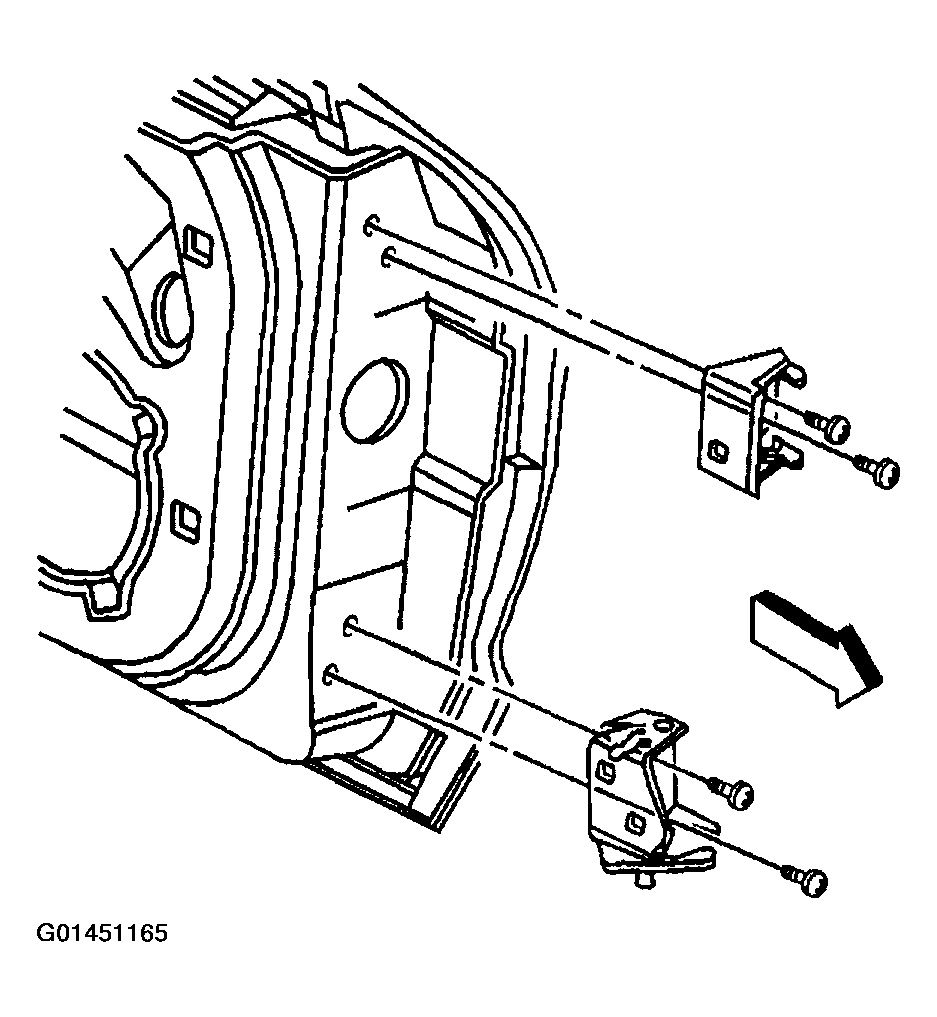

    Fig 3: Removing Bolts Securing Hinge To Door
    G01451165Courtesy of GENERAL MOTORS CORP.
