Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the door inside handle open to access the openings to the bezel locking tabs.
  2. Insert a screwdriver in the lower opening. Tip the screwdriver up while pulling on the bezel releasing the lower locking tab.
  3. Insert the screwdriver in the upper opening. Tip the screwdriver down while pulling on the bezel releasing the upper and the forward locking tabs.
  4. Grasp the bezel firmly, pull the bezel releasing the rear locking tabs.
  5. Remove the bezel.

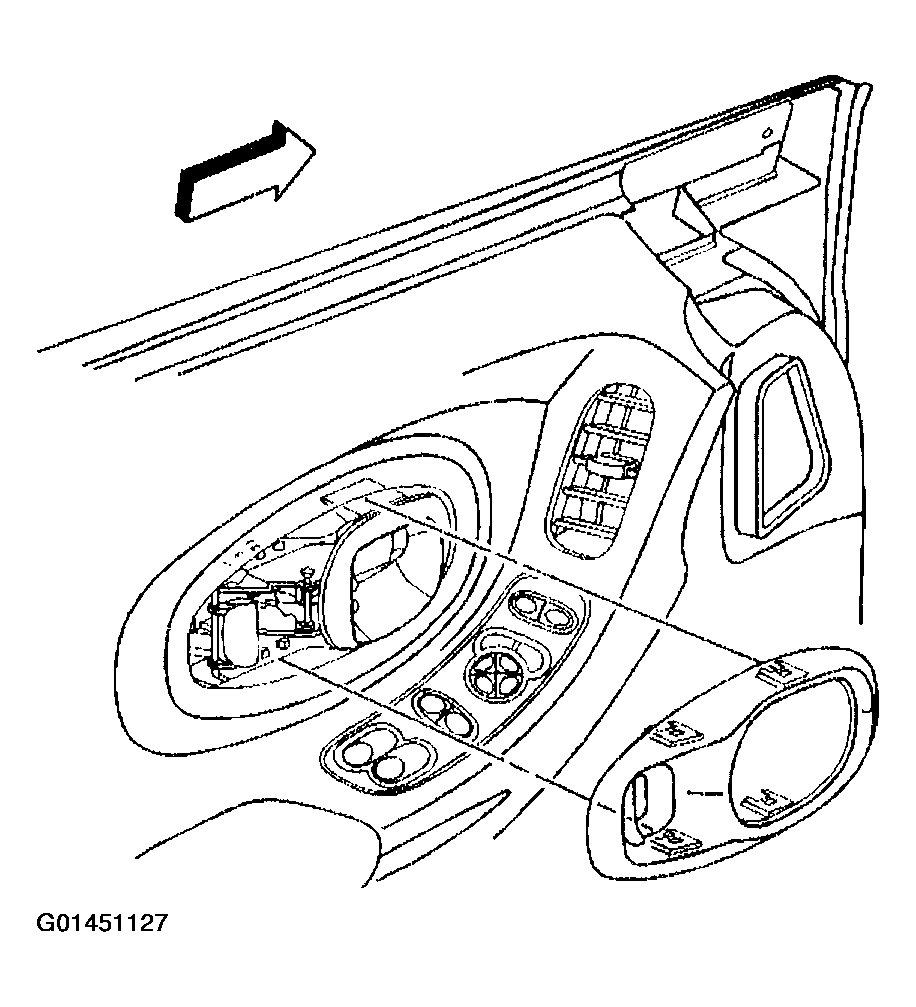

    Fig 1: Inside Handle Bezel
    G01451127Courtesy of GENERAL MOTORS CORP.
