Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bezel around the inside door handle.
  2. Push firmly on the bezel engaging the bezel locking tabs to the door.

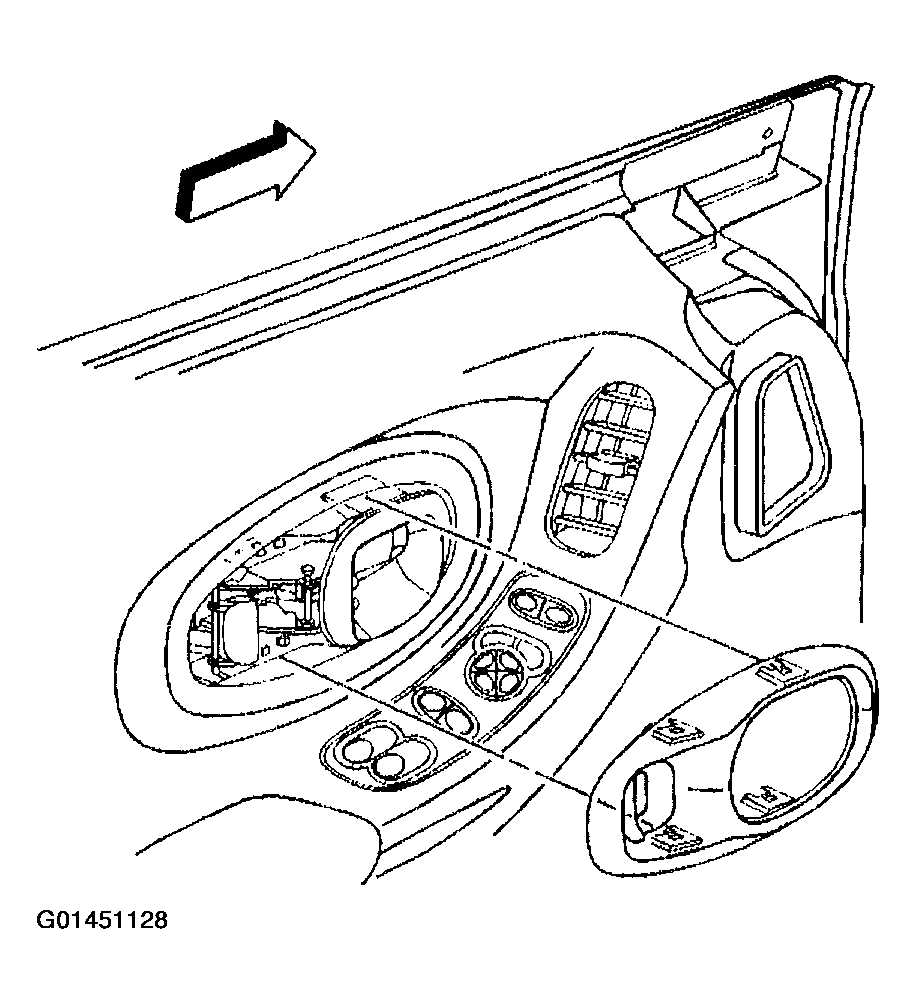

    Fig 1: Inside Handle Bezel
    G01451128Courtesy of GENERAL MOTORS CORP.
