Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Remove the door energy absorber. Heat will aid in removal.

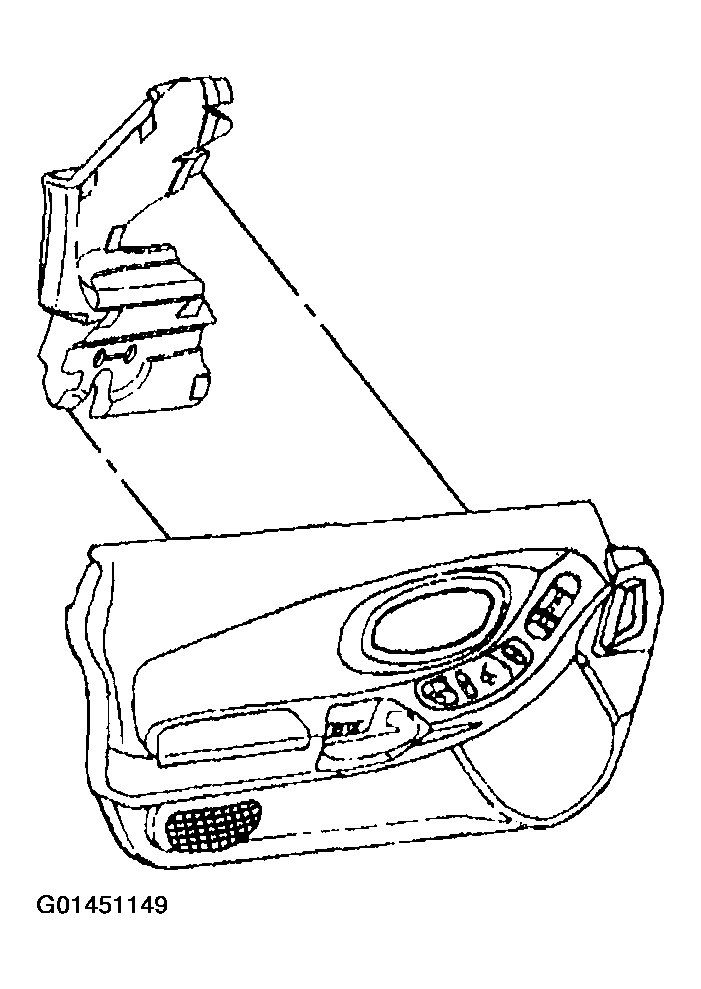

    Fig 1: Door Energy Absorber
    G01451149Courtesy of GENERAL MOTORS CORP.
