Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .

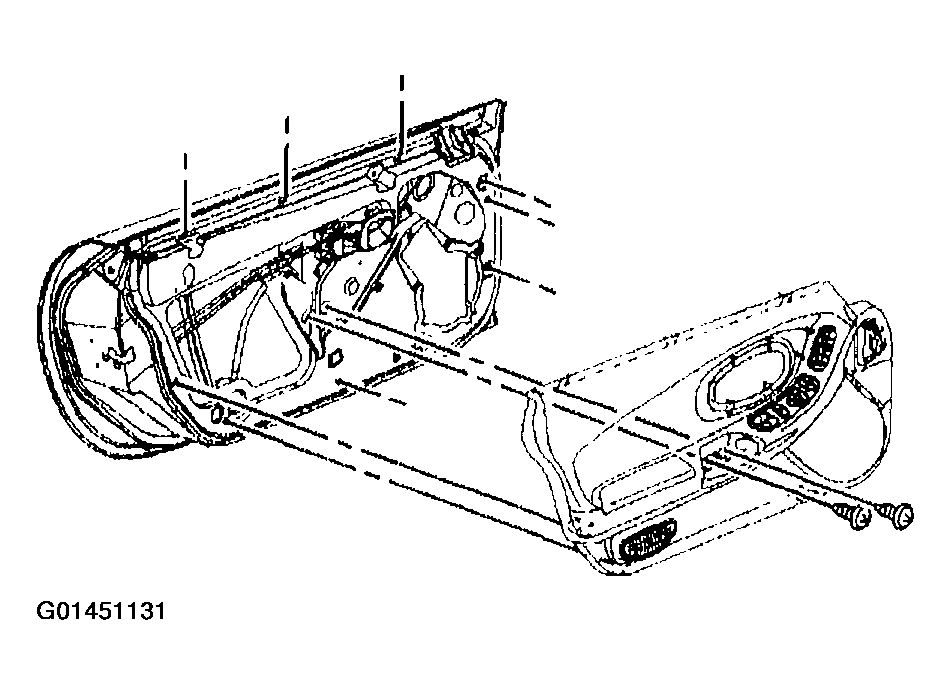

    Fig 1: Left Door Trim Panel
    G01451131Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws attaching the duct (2).
  3. Remove the duct with boot and the deflector.
  4. Remove the deflector from the duct.

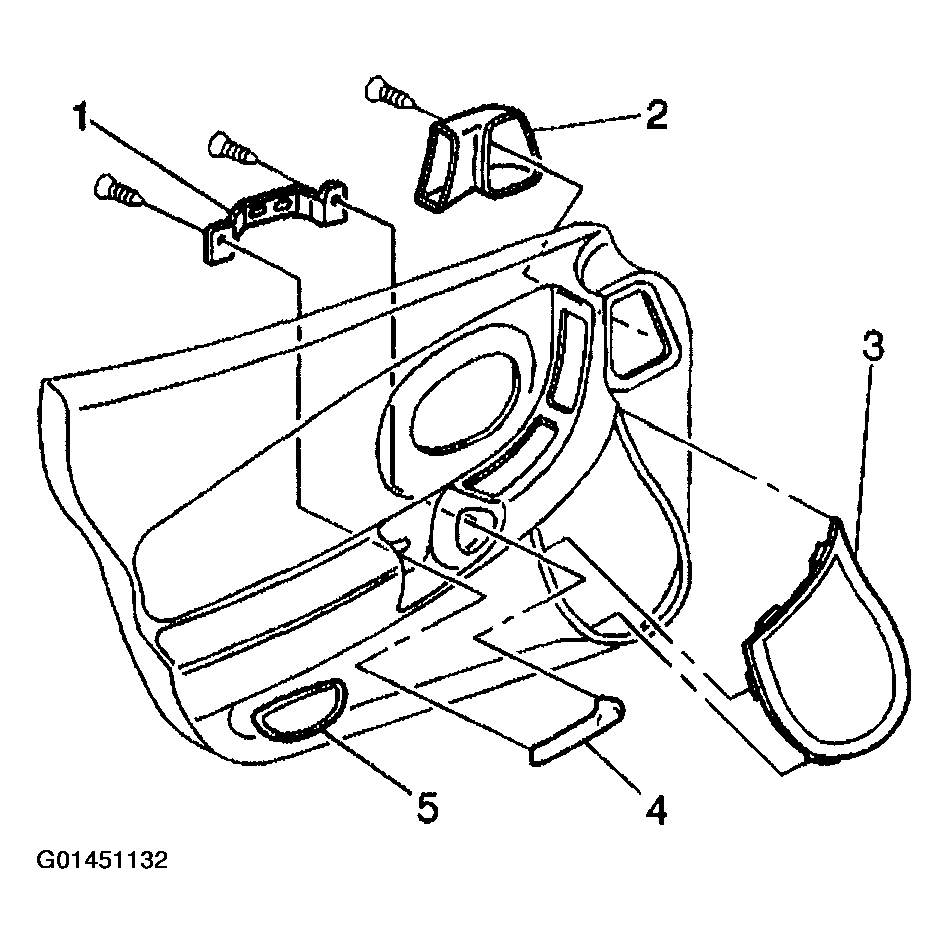

    Fig 2: Removing Deflector From Duct
    G01451132Courtesy of GENERAL MOTORS CORP.
