Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bezel from the door handle. Refer to HANDLE BEZEL REPLACEMENT - INSIDE .

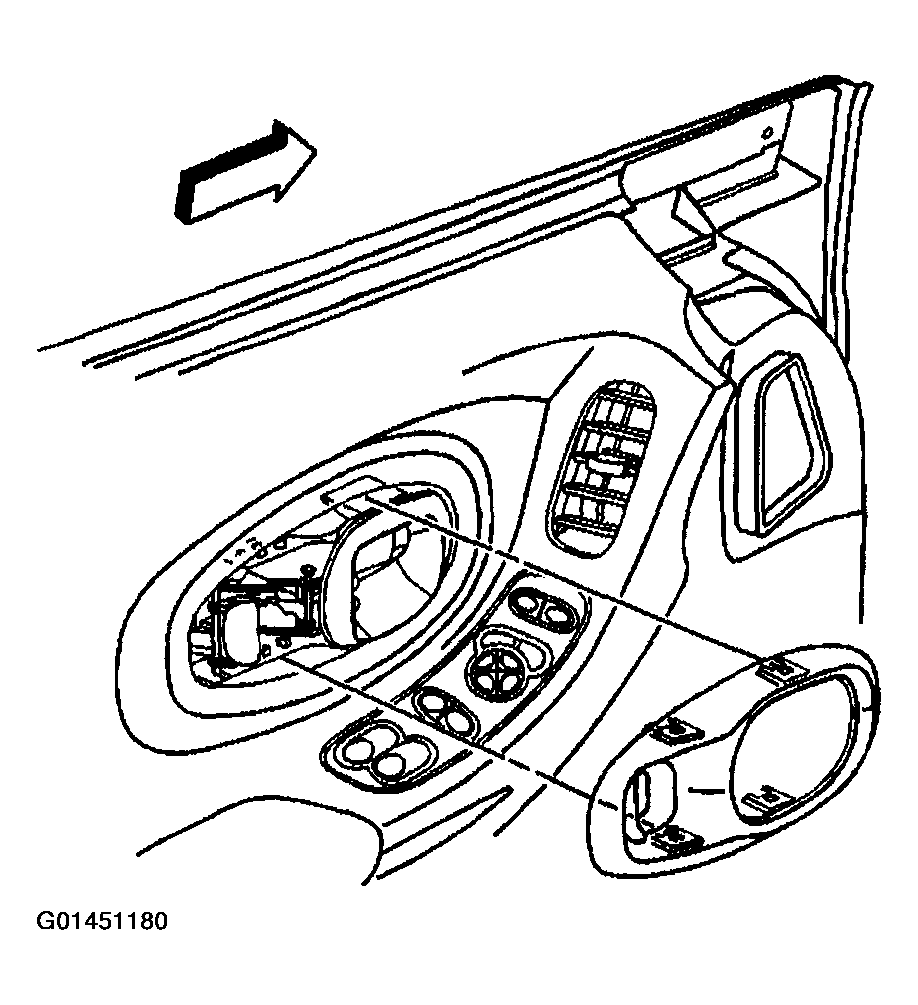

    Fig 1: Removing Bezel From Door Handle
    G01451180Courtesy of GENERAL MOTORS CORP.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

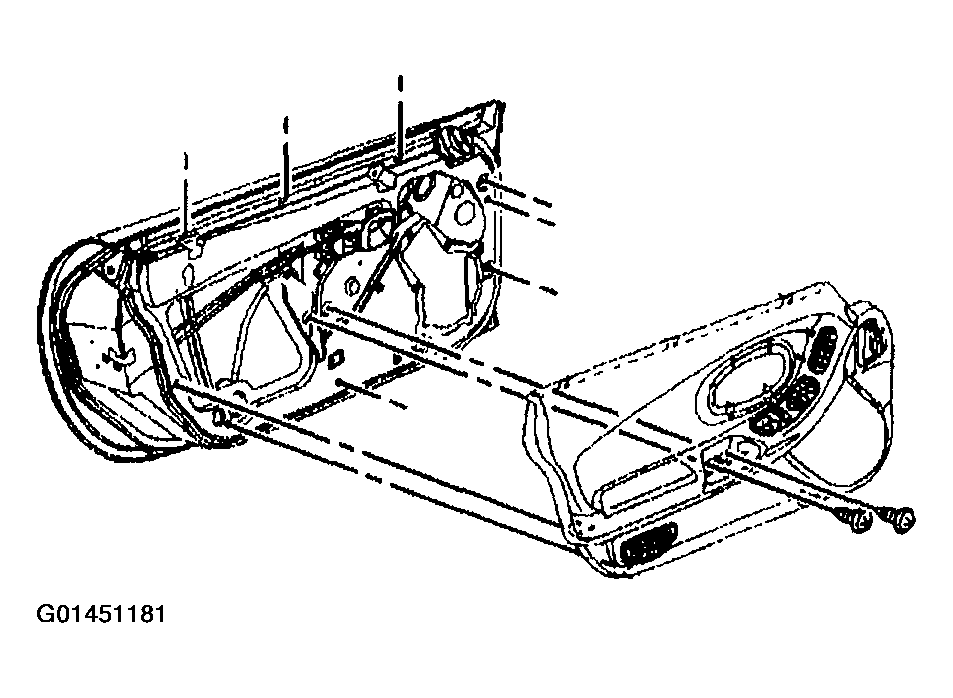

    Fig 2: Door Trim Panel
    G01451181Courtesy of GENERAL MOTORS CORP.
  3. Remove the water deflector.

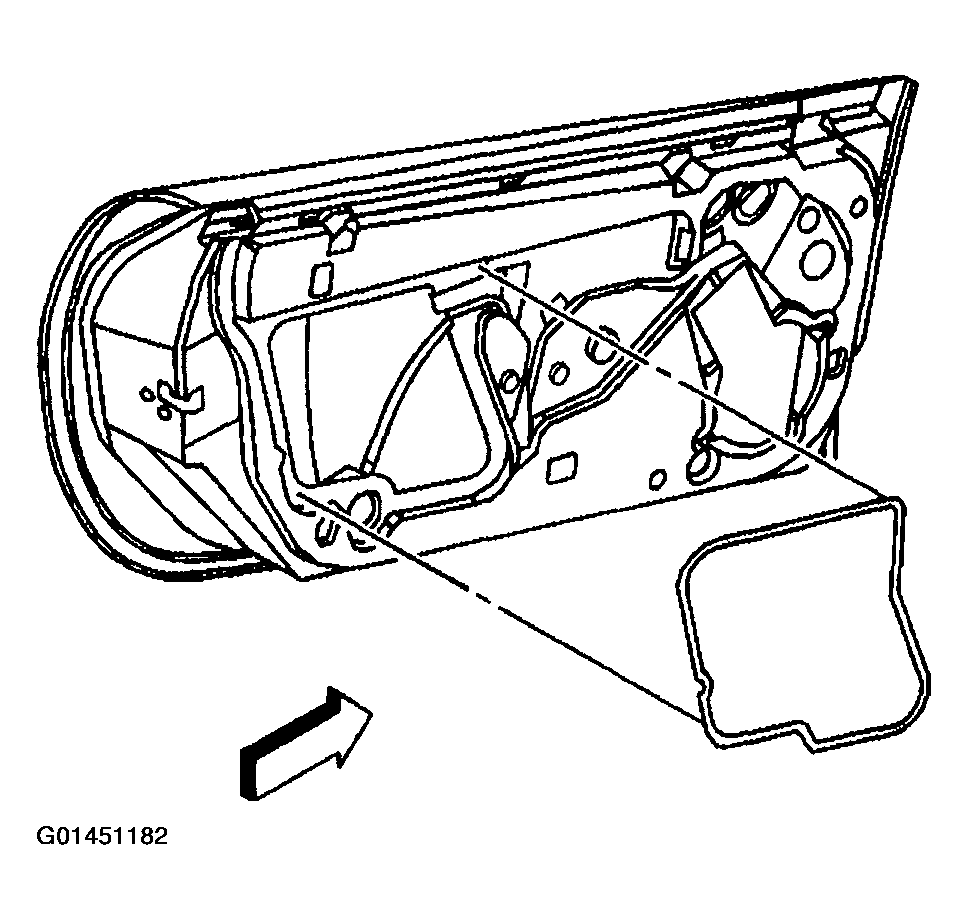

    Fig 3: Water Deflector
    G01451182Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw, located behind the inside handle's manual locking lever, attaching the handle to the door.
  5. Squeeze the handle's rear mounting tabs and unsnap the rear of the handle from the door.
  6. Slide the handle rearward out of the forward door slot.

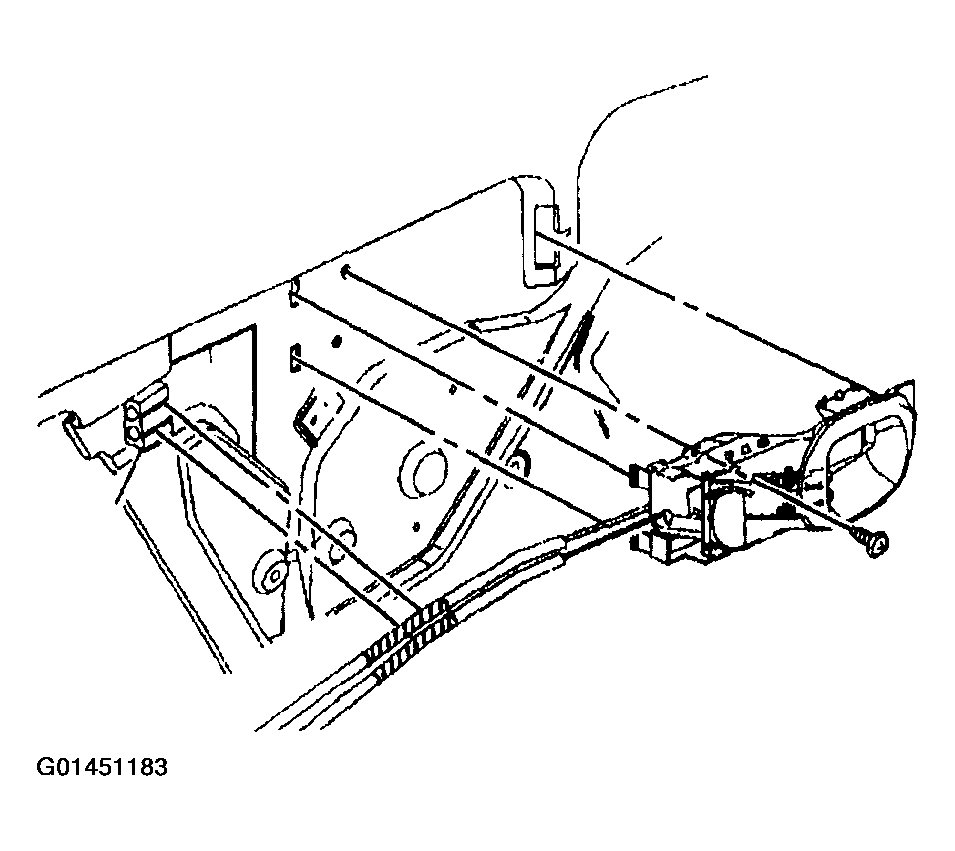

    Fig 4: Removing Screws Attaching Handle To Door
    G01451183Courtesy of GENERAL MOTORS CORP.
  7. Remove the lock rods from the anti-rattle retainer.
  8. Open the handle fully.
  9. Remove the lock rods from the handle.
    Fig 5: Removing Lock Rods From Handle
    G01451184Courtesy of GENERAL MOTORS CORP.
