Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to FASTENER NOTICE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the bolts attaching the filler panel to the frame rail.
    Fig 1: Removing Bolts Attaching Filler Panel To Frame Rail
    G01451032Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt attaching the filler panel to the lower fender flange.
    Fig 2: Removing Bolt Attaching Filler Panel To Lower Fender Flange
    G01451033Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts attaching the fender wheel opening to the filler panel.
    Fig 3: Removing Bolts Attaching Fender Wheel Opening To Filler Panel
    G01451034Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts attaching the filler panel to the wheelhouse panel.
    Fig 4: Removing Bolts Attaching Filler Panel To Wheelhouse Panel
    G01451035Courtesy of GENERAL MOTORS CORP.
  7. Remove the filler panel.

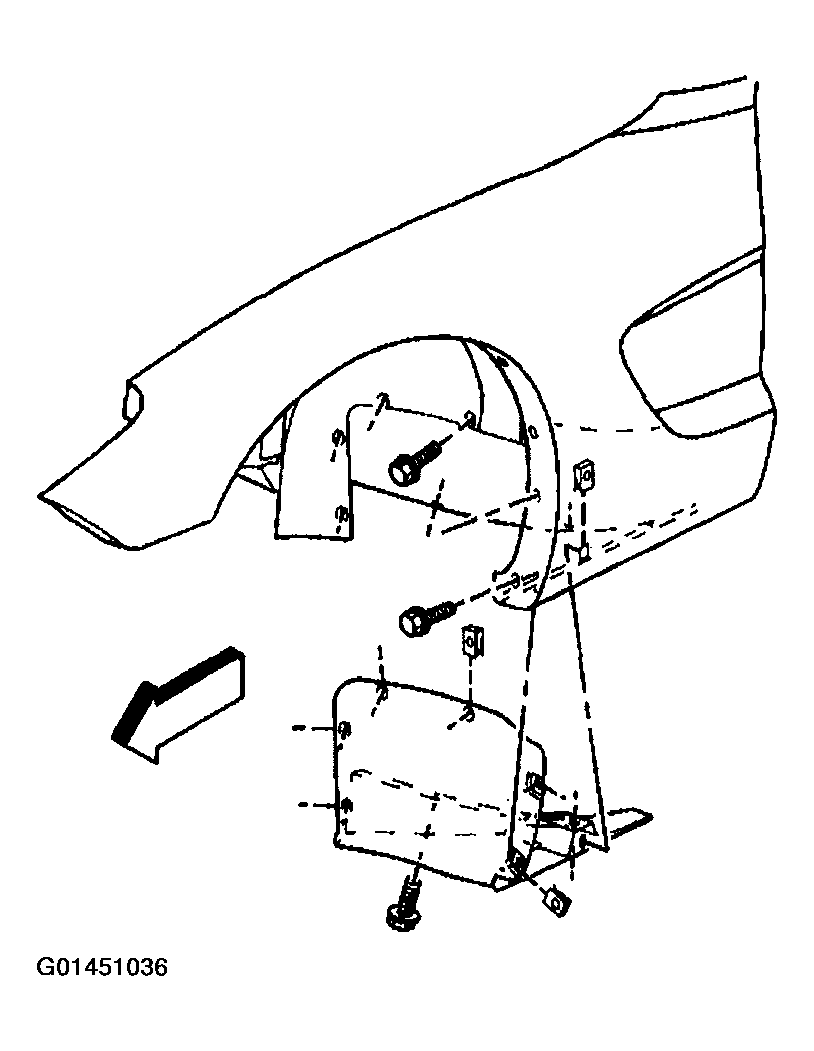

    Fig 5: Filler Panel
    G01451036Courtesy of GENERAL MOTORS CORP.
