Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front fender. Refer to FENDER REPLACEMENT - FRONT .

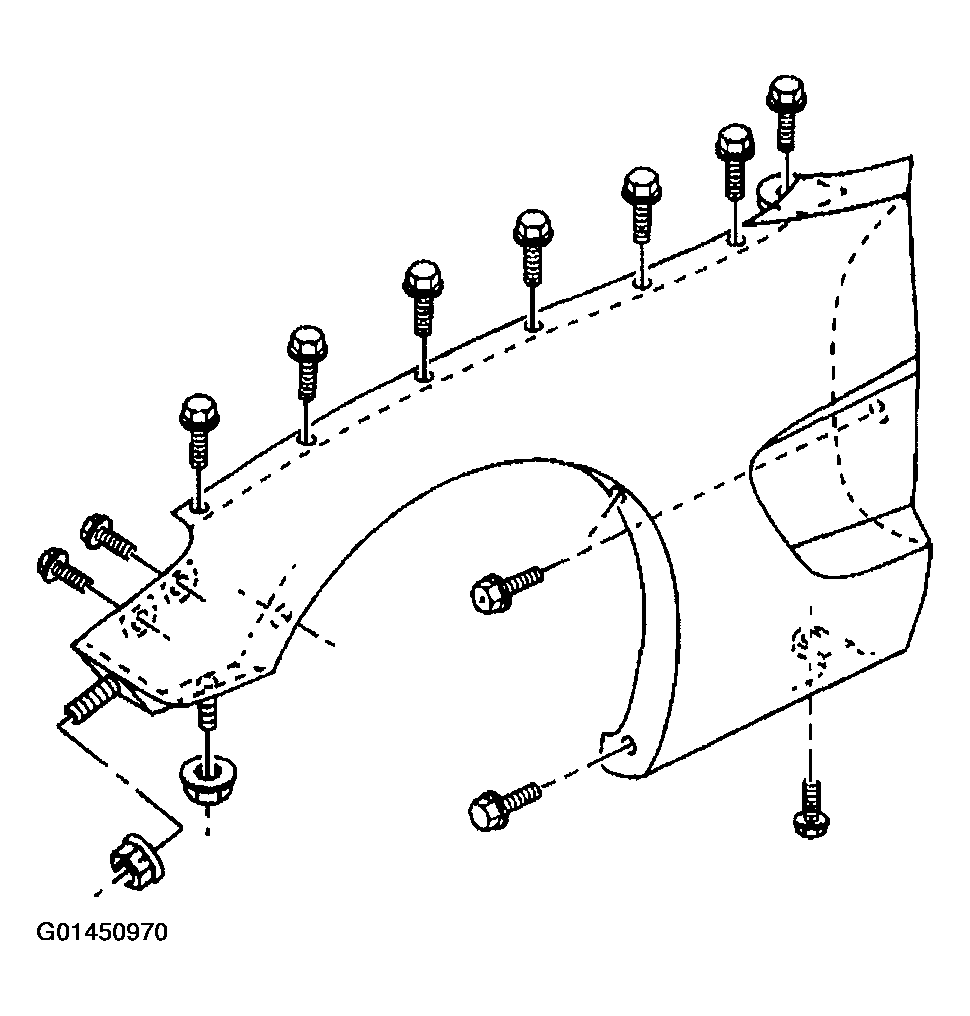

Fig 1: Front Fender
Courtesy of GENERAL MOTORS CORP.
Remove the bolts attaching the hood stop bracket to the hood stop. On the passenger side one of the bolts also attaches to the plenum bracket.

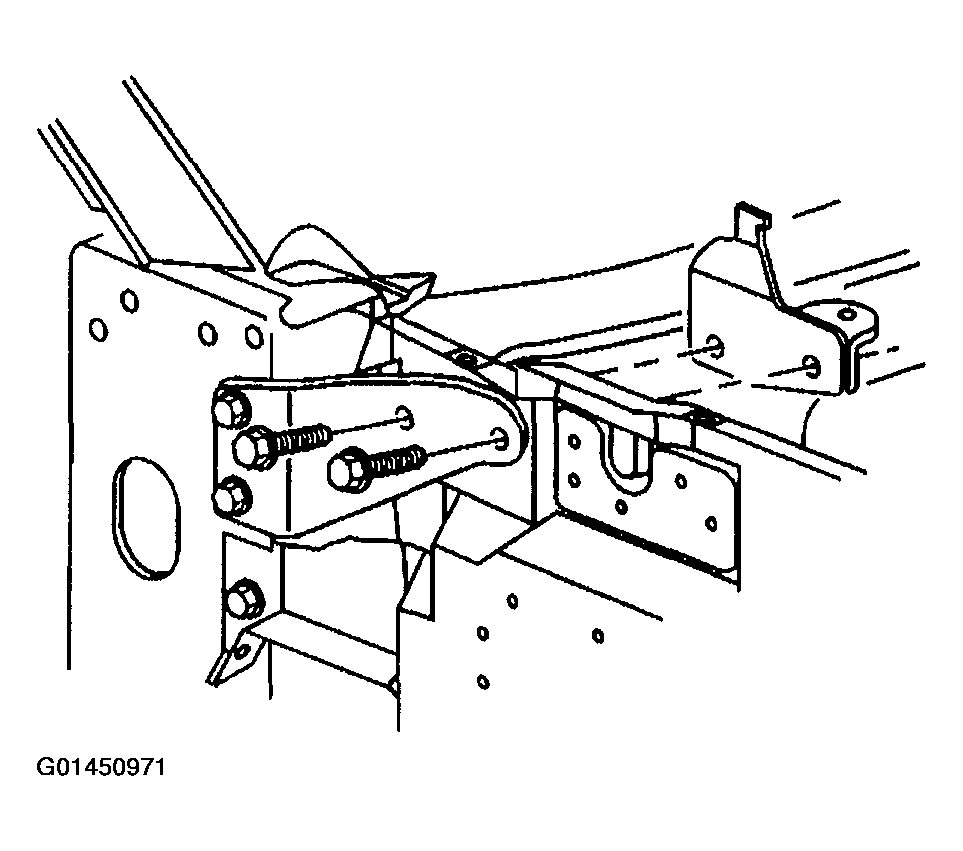

Fig 2: Removing Bolts Attaching Hood Stop Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the bolts attaching the hood stop bracket to the hinge pillar.

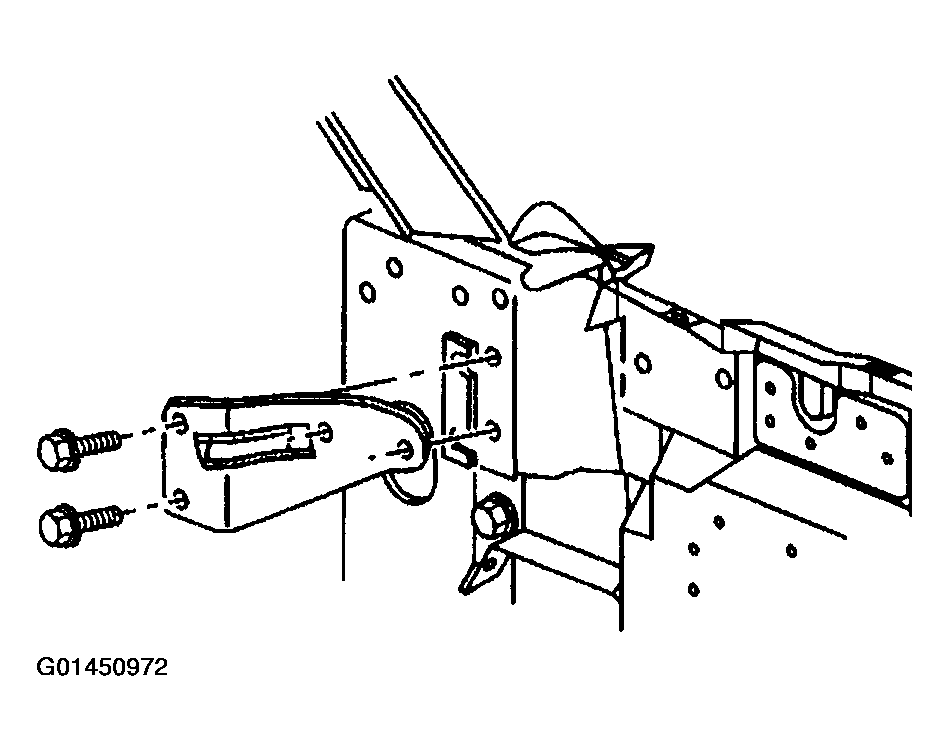

Fig 3: Removing Bolts Attaching Hood Stop Bracket To Hinge Pillar
Courtesy of GENERAL MOTORS CORP.
Transfer the hood bumper if necessary.

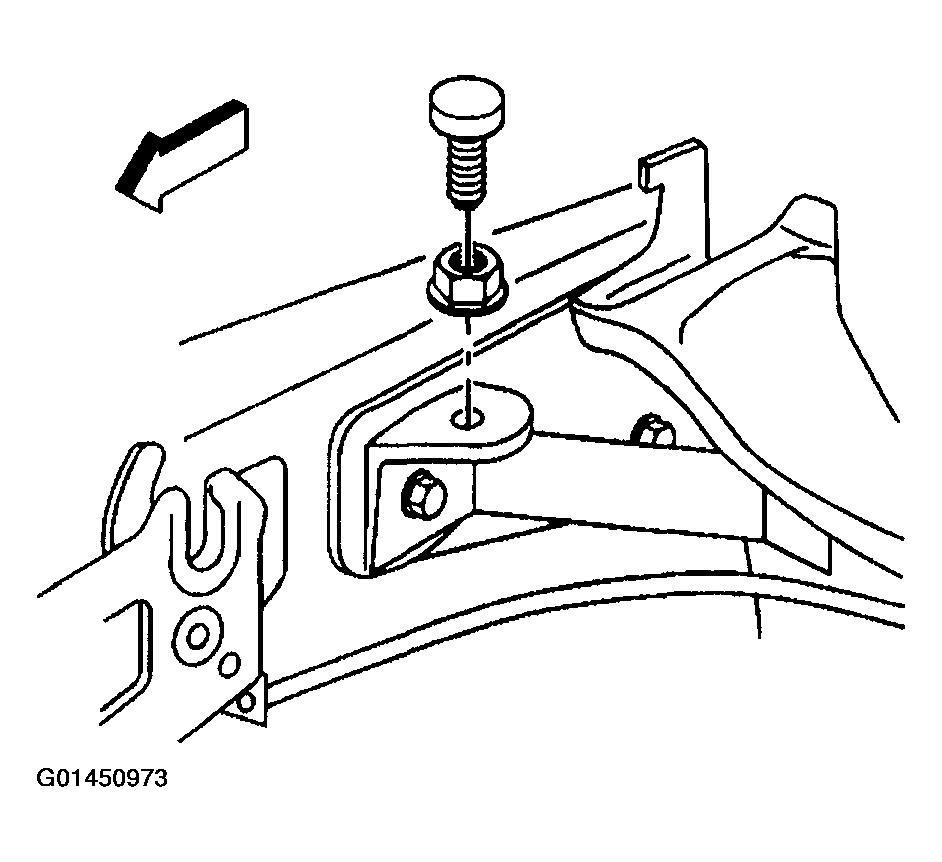

Fig 4: Hood Bumper
Courtesy of GENERAL MOTORS CORP.
