Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the hood stop bracket to the hinge pillar.
Tighten

Tighten the hood stop bracket bolts to 25 N.m (18 lb ft).

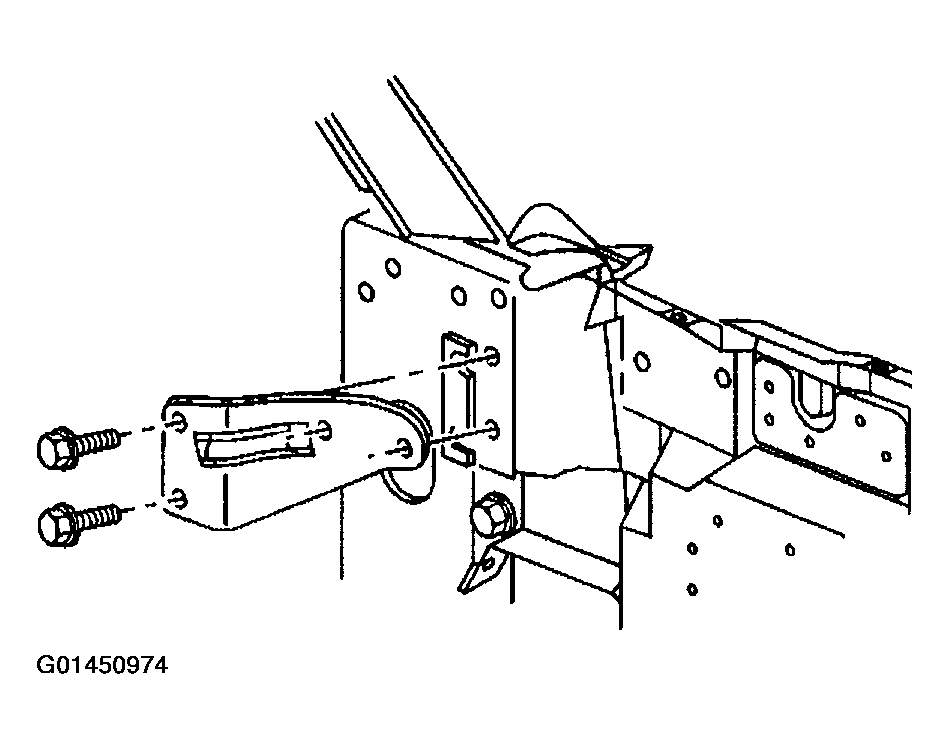

Fig 1: Installing Hood Stop Bracket To Hinge Pillar
Courtesy of GENERAL MOTORS CORP.
Install the hood stop (and the plenum bracket on the passenger side) to the hood stop bracket.
Tighten

Tighten the hood stop bracket bolts to 25 N.m (18 lb ft).

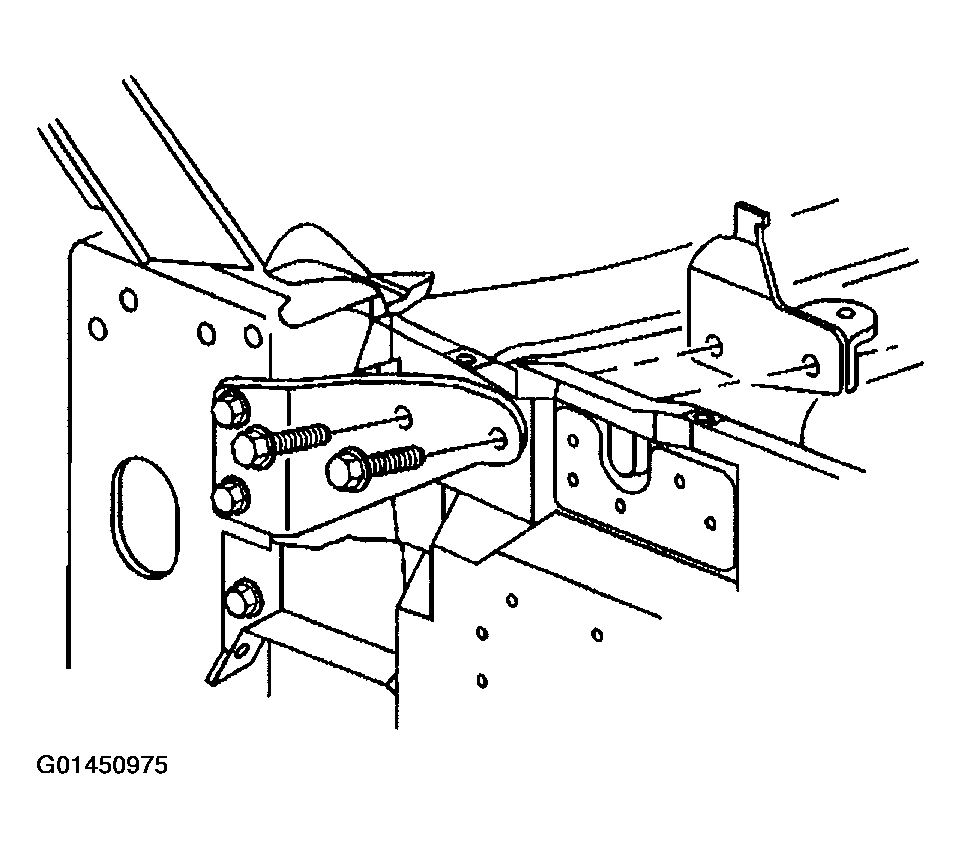

Fig 2: Hood Stop Bracket
Courtesy of GENERAL MOTORS CORP.
Install the hood bumper.
Tighten

Tighten the hood bumper jam nut to 10 N.m (89 lb in).

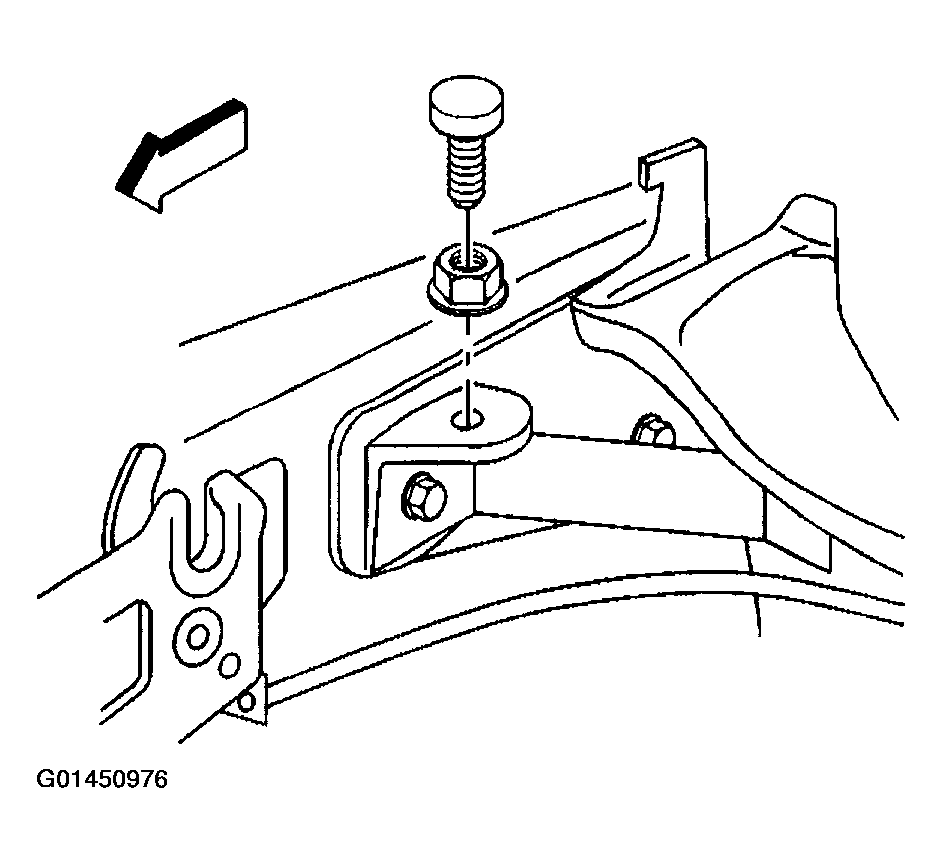

Fig 3: Hood Bumper
Courtesy of GENERAL MOTORS CORP.
Install the fender. Refer to FENDER REPLACEMENT - FRONT .

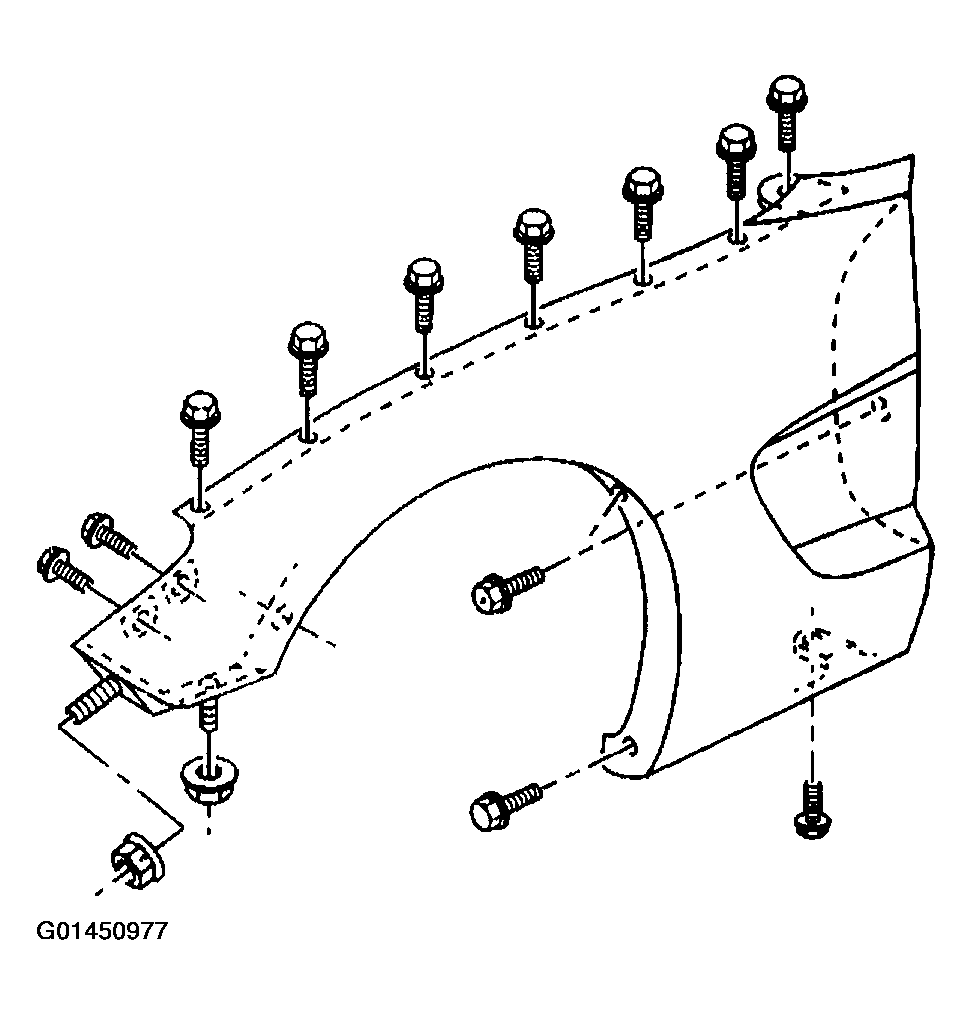

Fig 4: Fender
Courtesy of GENERAL MOTORS CORP.
