Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the striker to the mark on the hood.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the striker to the hood.

    Tighten

    Tighten the striker bolts to 10 N.m (89 lb in).

  3. Close the hood and check alignment. Adjust as necessary.

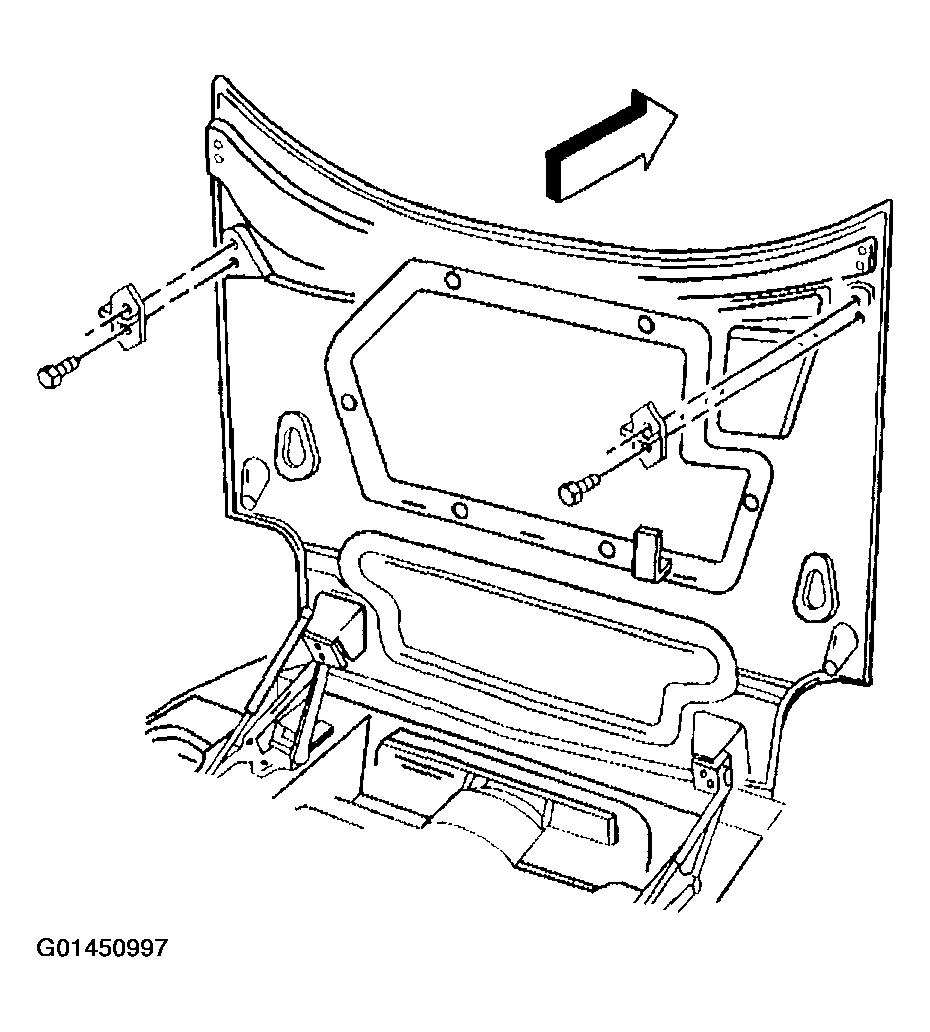

    Fig 1: Installing Striker To Hood
    G01450997Courtesy of GENERAL MOTORS CORP.
