Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable end into the catch on the latch.
  2. Install the cable sheath grommet into the slotted hole in the latch.

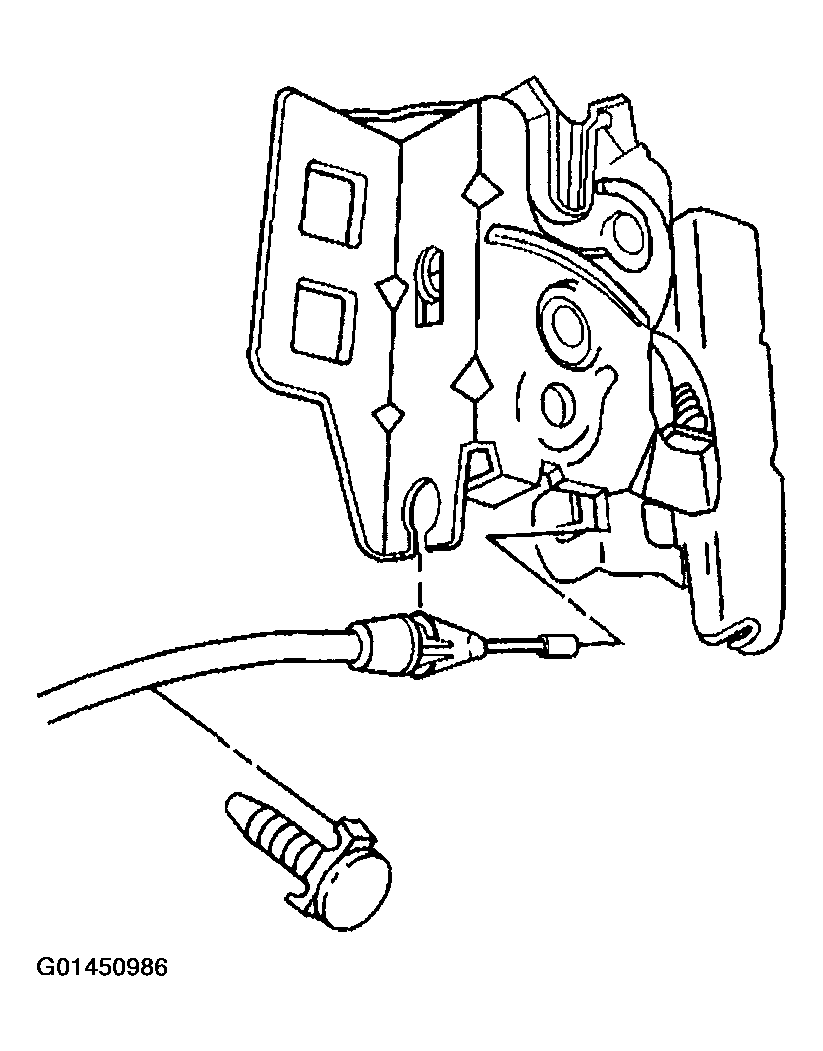

    Fig 1: Cable Sheath Grommet
    G01450986Courtesy of GENERAL MOTORS CORP.
  3. Align the latch within the marked area.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts attaching the latch.

    Tighten

    Tighten the hood latch bolts to 10 N.m (89 lb in).

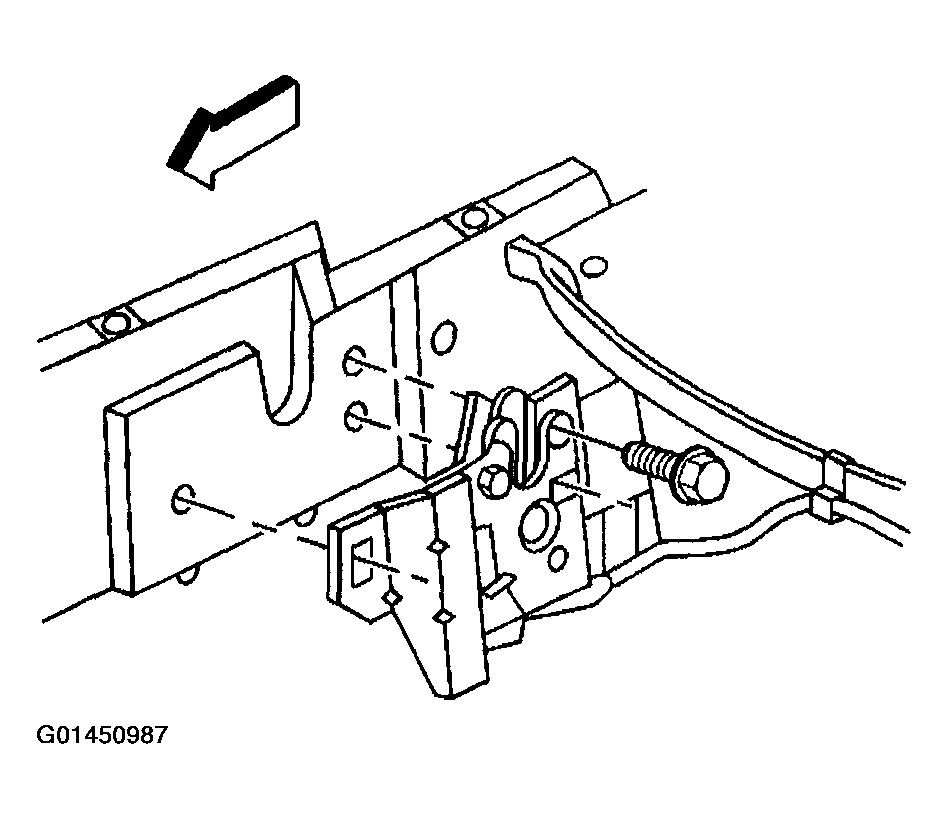

    Fig 2: Latch
    G01450987Courtesy of GENERAL MOTORS CORP.
