Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT  .

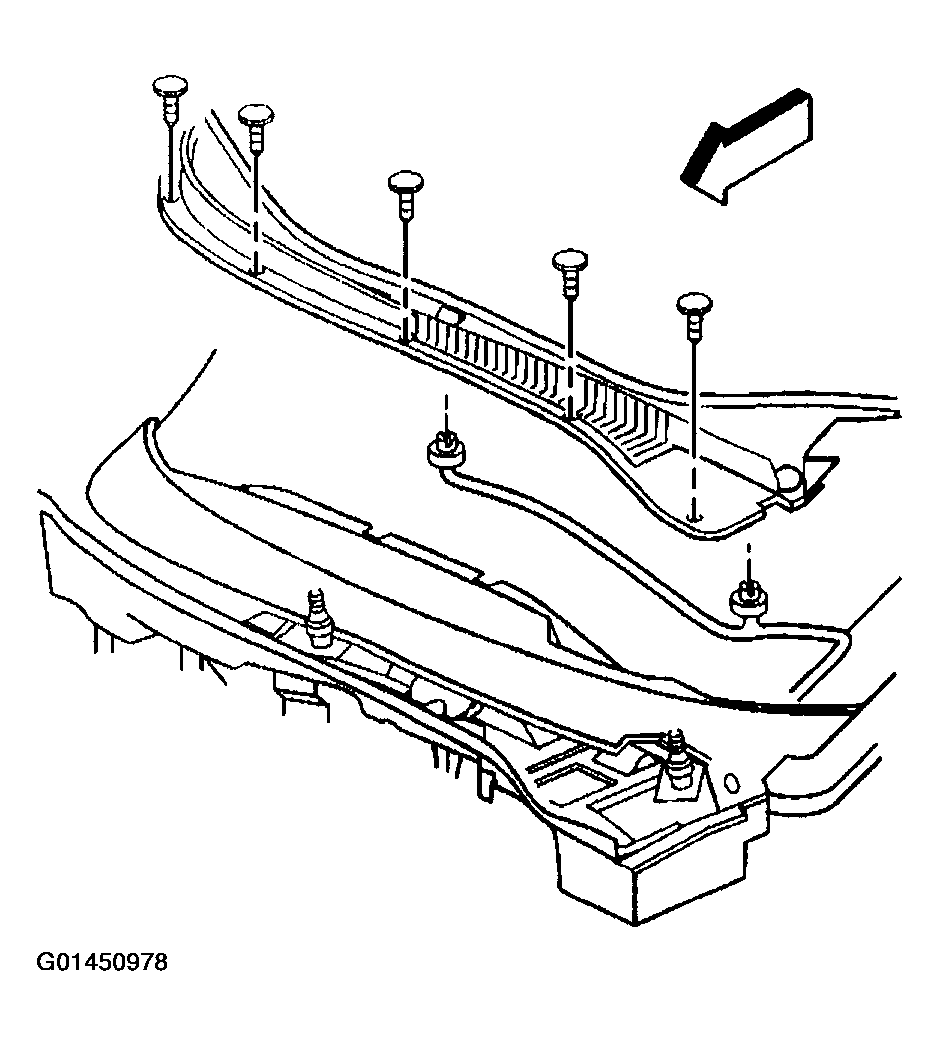

    Fig 1: Air Inlet Grille
    G01450978Courtesy of GENERAL MOTORS CORP.
  2. Mark the perimeter of the latch using a grease pencil.
  3. Remove the bolts attaching the latch.

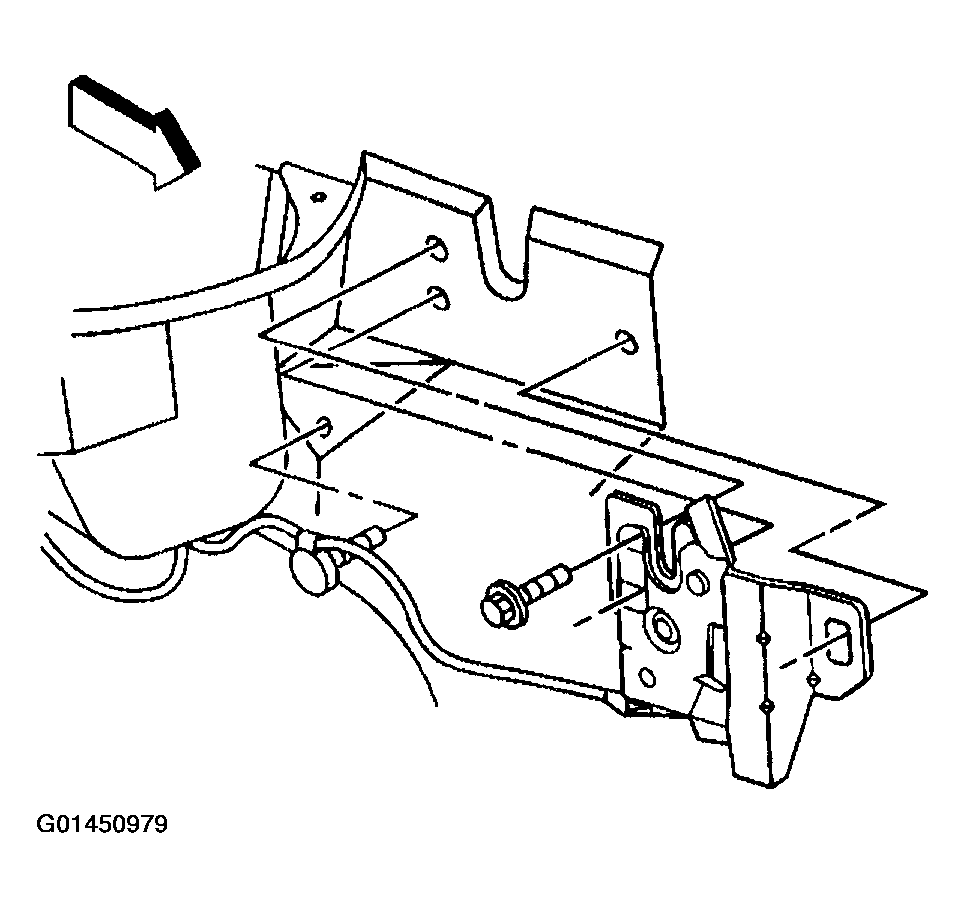

    Fig 2: Removing Bolts Attaching Latch
    G01450979Courtesy of GENERAL MOTORS CORP.
  4. Remove the cable from the push-in retainer attaching the cable sheath to the wheelhouse panel.
  5. Disconnect the cable sheath grommet from the latch.
  6. Disconnect the cable end from the latch.

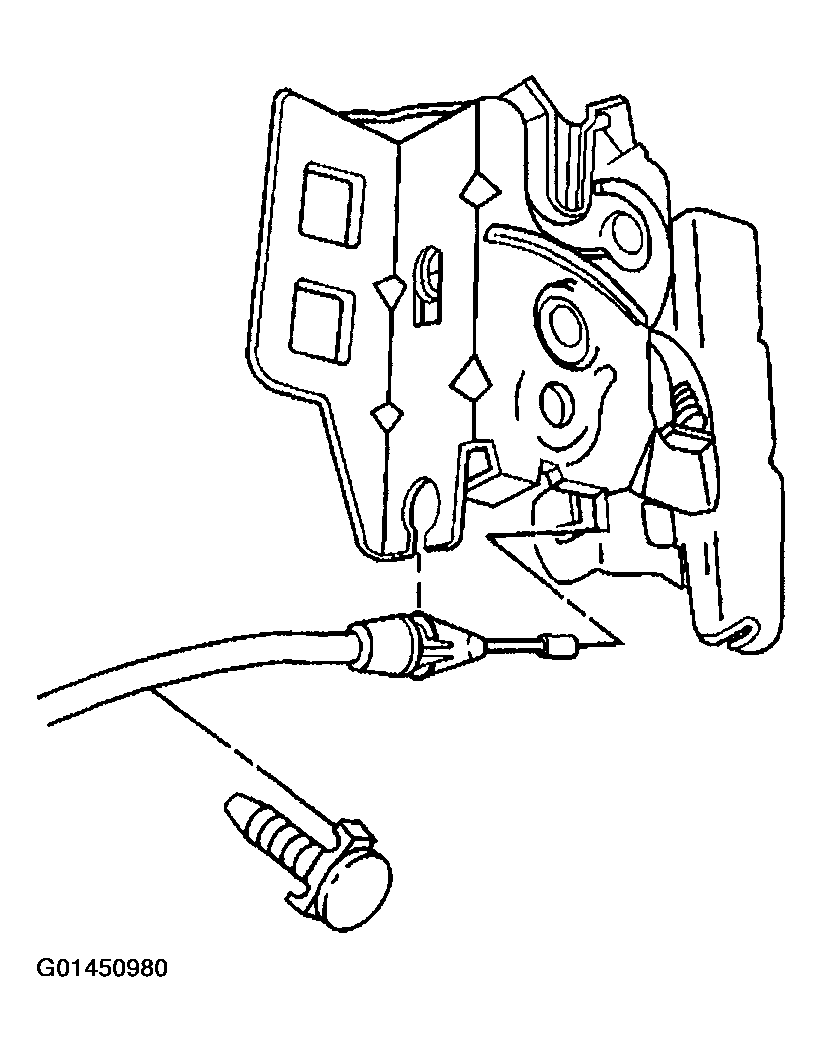

    Fig 3: Disconnecting Cable End From Latch
    G01450980Courtesy of GENERAL MOTORS CORP.
