Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable end into the catch on the latch.
  2. Install the cable sheath grommet into the slotted hole in the latch.

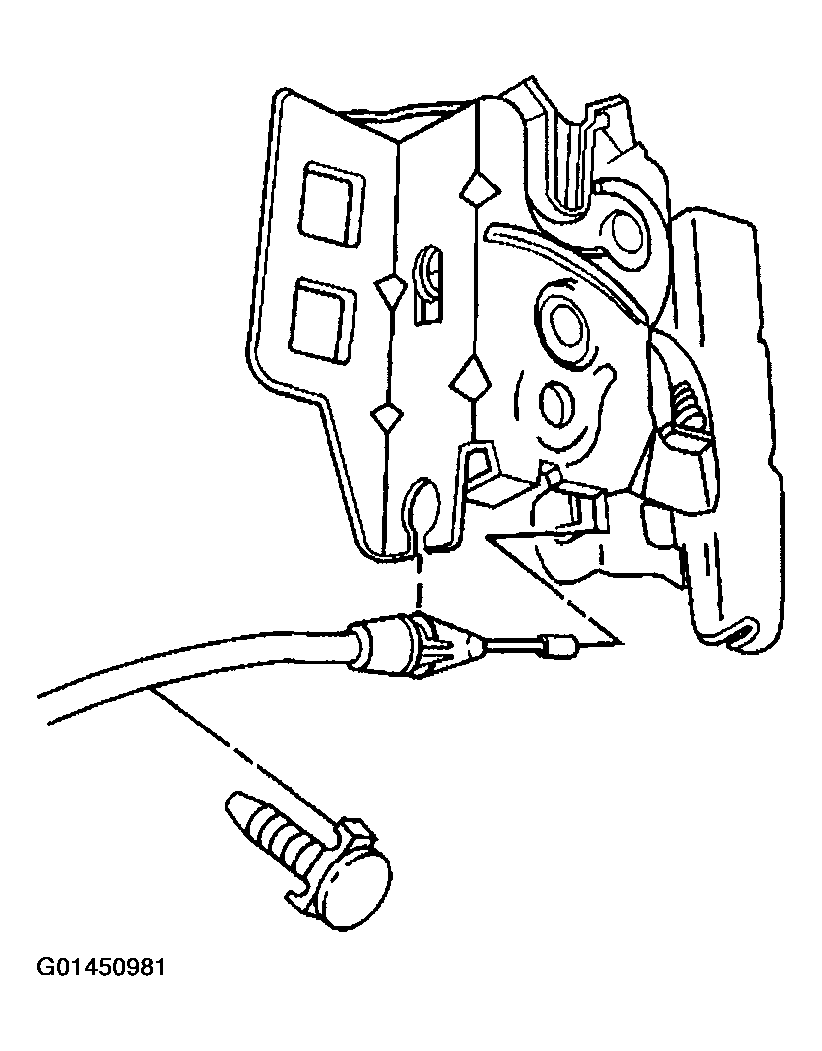

    Fig 1: Installing Cable End Into Catch On Latch
    G01450981Courtesy of GENERAL MOTORS CORP.
  3. Install the hood latch and attaching bolts.
  4. Align the latch within the marked area.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Tighten the hood latch bolts.

    Tighten

    Tighten the hood latch bolts to 10 N.m (89 lb in).

  6. Install the cable sheath to the push-in retainer.

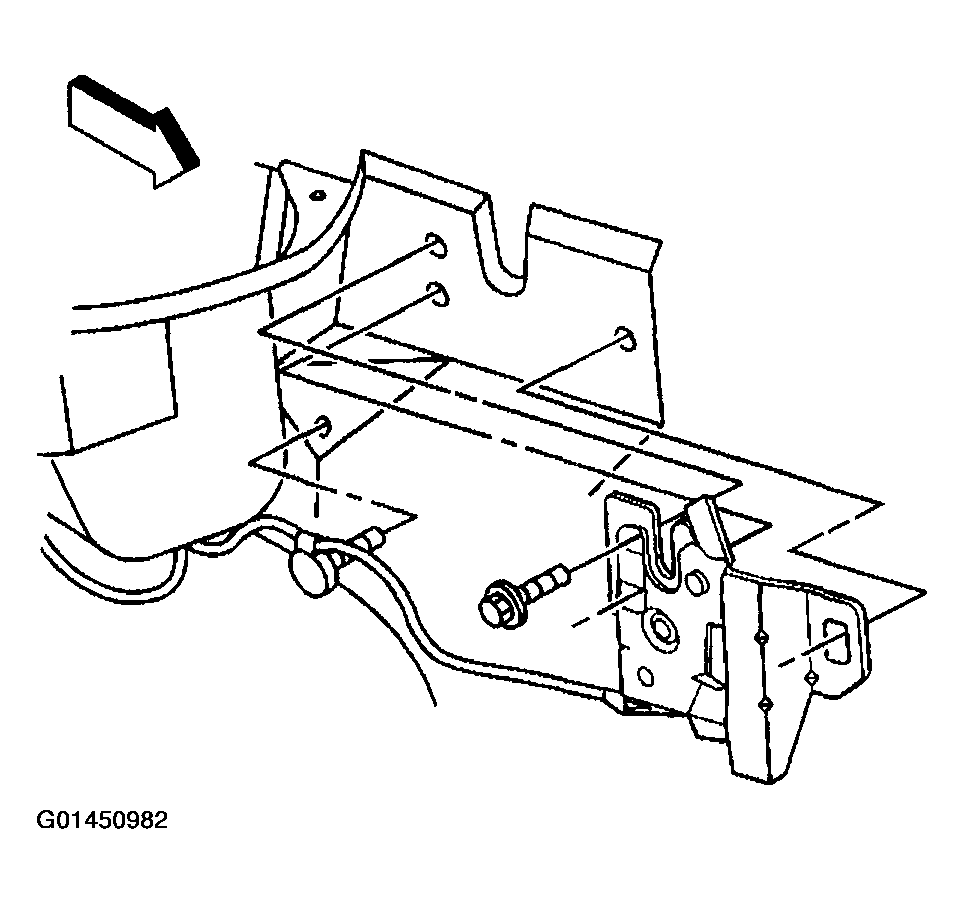

    Fig 2: Hood Latch
    G01450982Courtesy of GENERAL MOTORS CORP.
  7. Install the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT  .

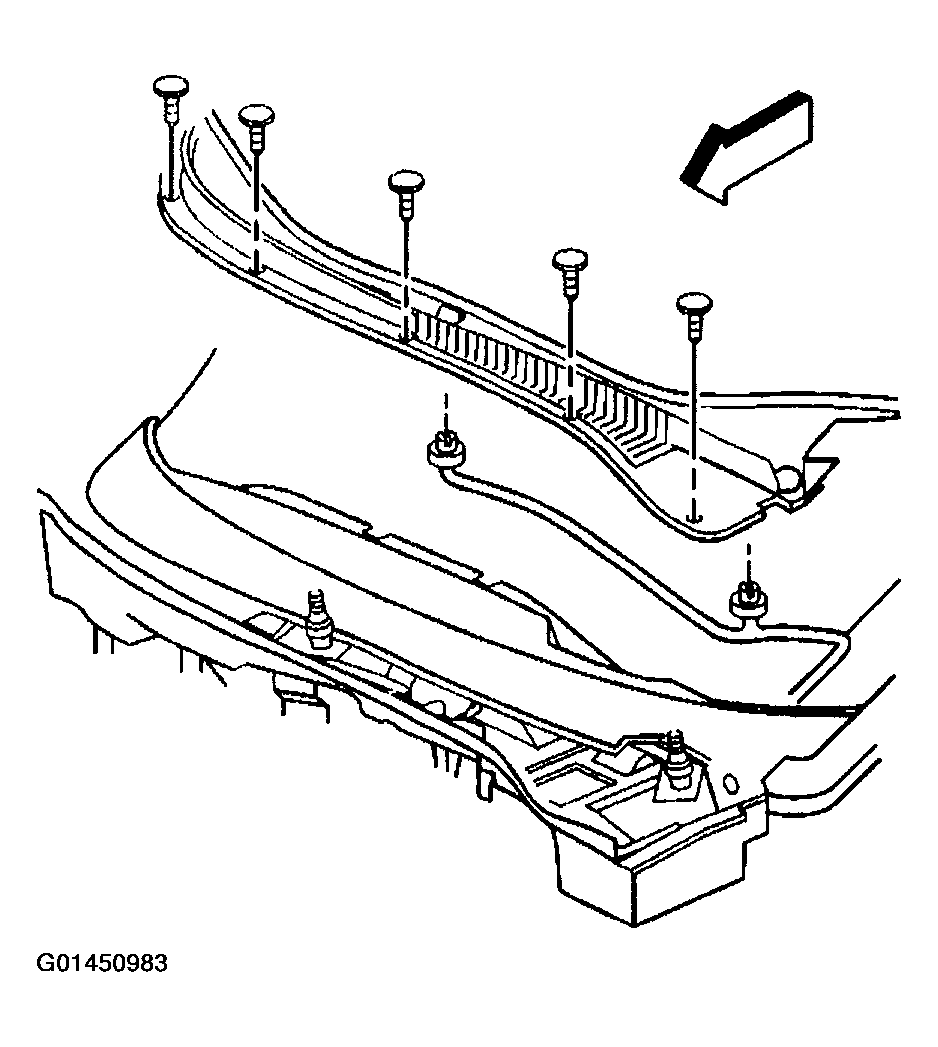

    Fig 3: Air Inlet Grille
    G01450983Courtesy of GENERAL MOTORS CORP.
