Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the location of the hinge on the hood and the rail using a grease pencil.
  2. Remove the hood struts.

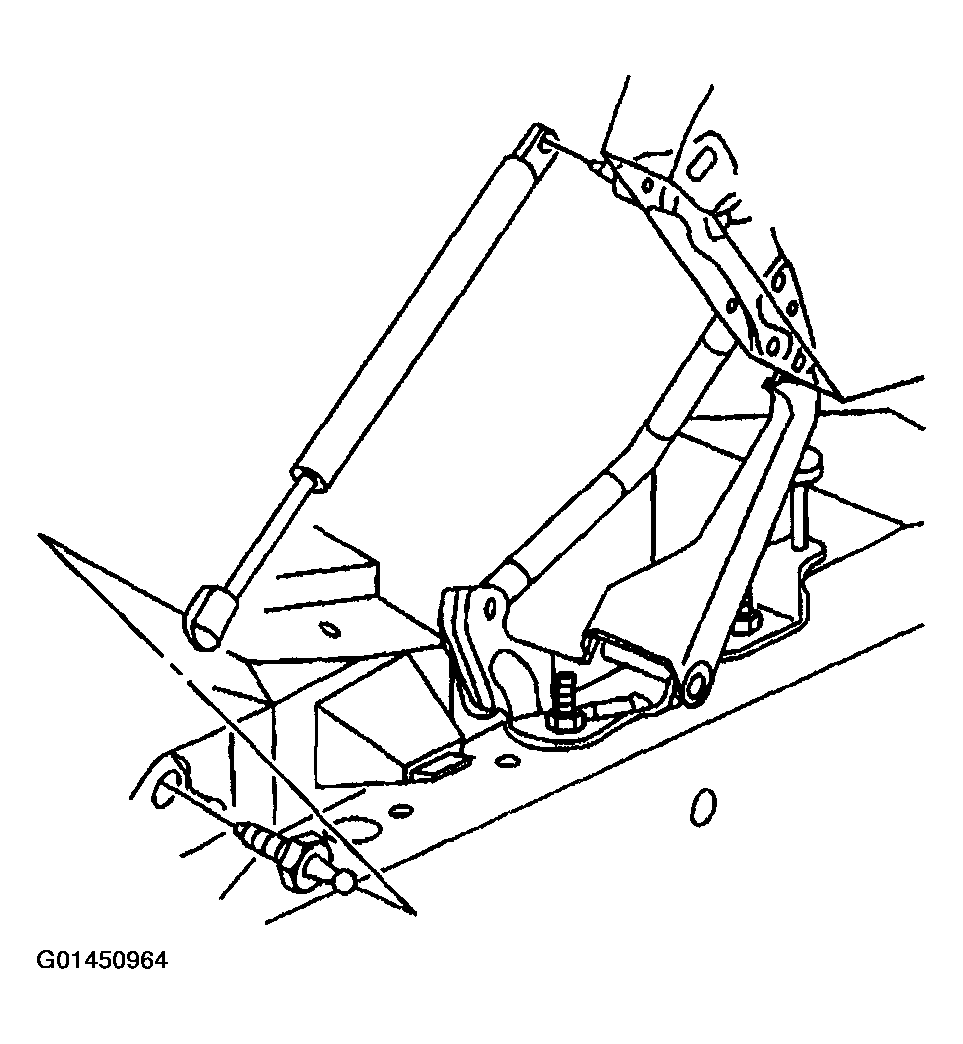

    Fig 1: Hood Struts
    G01450964Courtesy of GENERAL MOTORS CORP.
  3. Support the hood in a partially open position so that access is provided to the forward bolt attaching the hinge to the hood.
  4. Remove the bolts attaching the hinge to the hood.

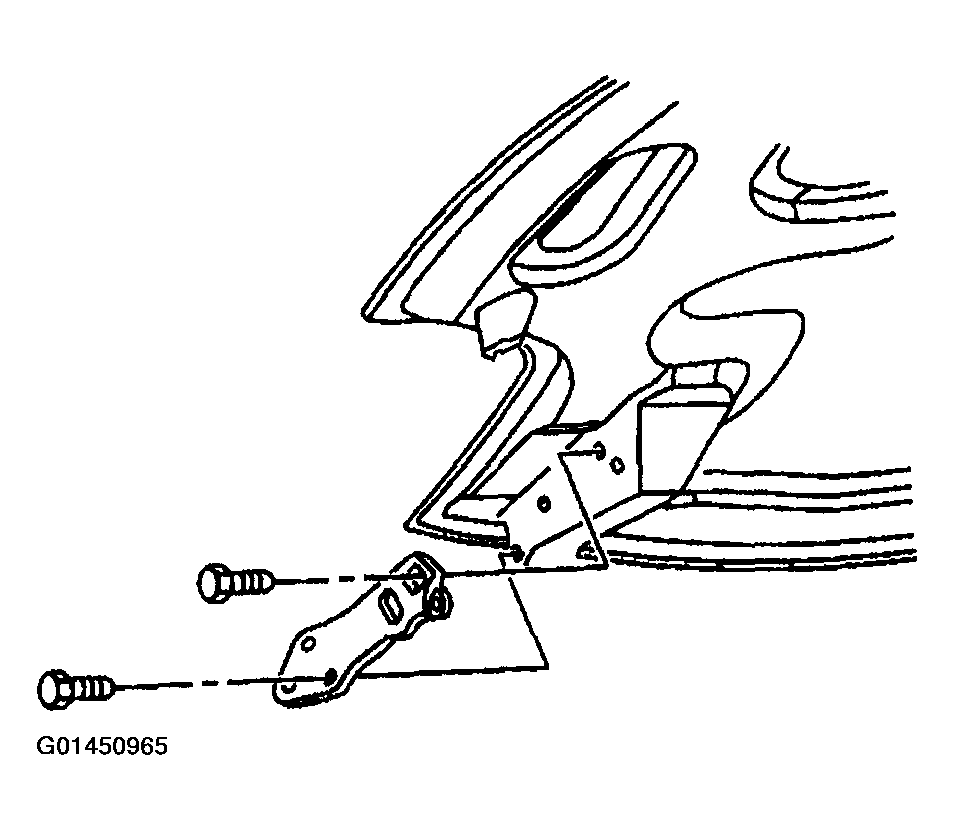

    Fig 2: Hood Hinge
    G01450965Courtesy of GENERAL MOTORS CORP.
  5. Remove the nuts attaching the hinge to the front side rail.

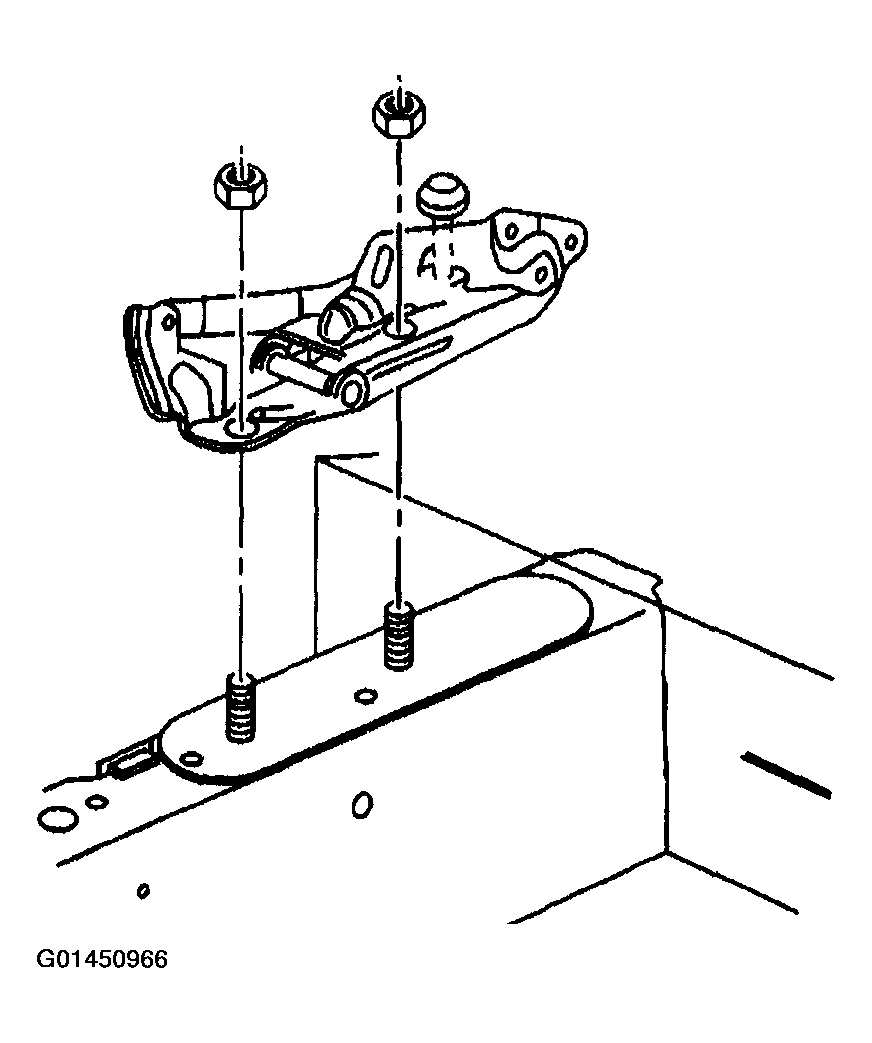

    Fig 3: Removing Nuts Attaching Hinge To Front Side Rail
    G01450966Courtesy of GENERAL MOTORS CORP.
  6. Remove the hinge.
