Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Lift up the retainer clips on the assist rod using a small flat bladed tool
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in Cautions and Notices.
  3. Pull the upper end of the assist rod from the ball joint on the hood.
  4. Pull the lower end of the assist rod from the ball joint on the lower hood hinge.

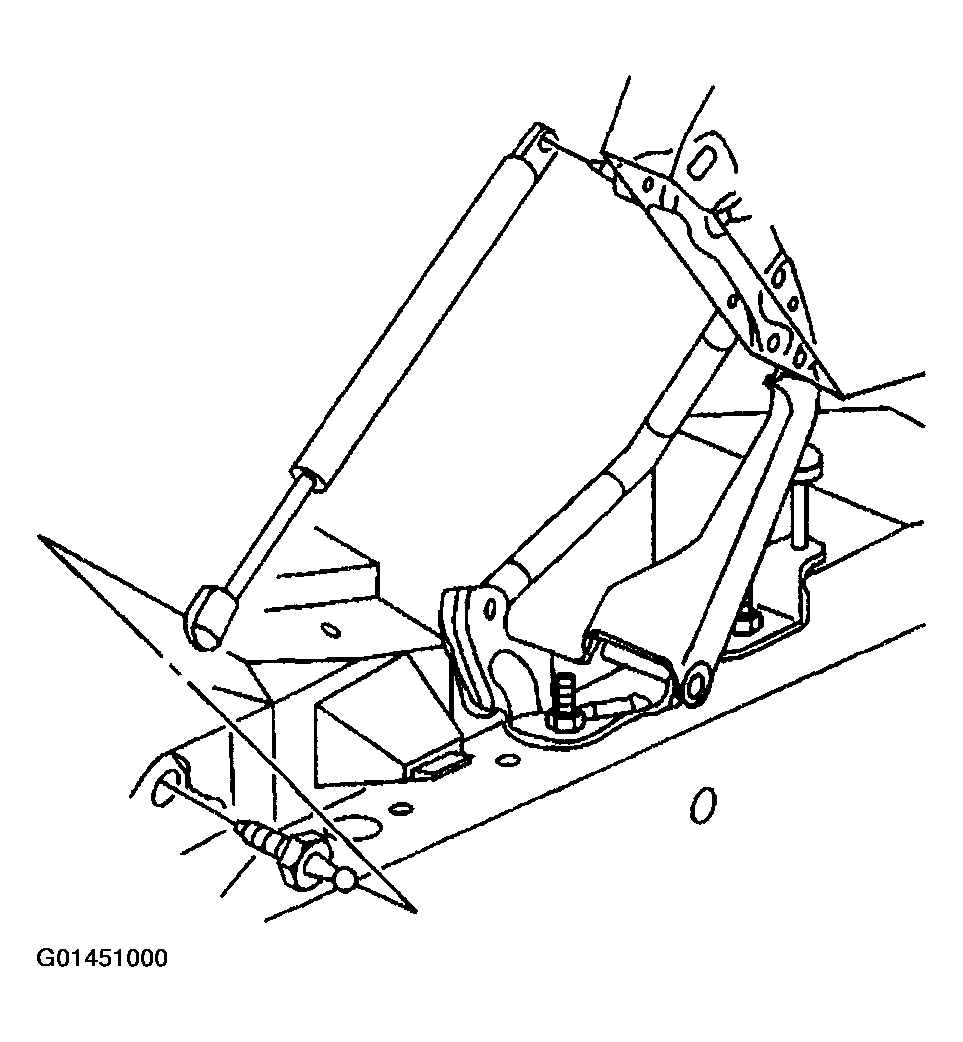

    Fig 1: Assist Rod
    G01451000Courtesy of GENERAL MOTORS CORP.
