Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

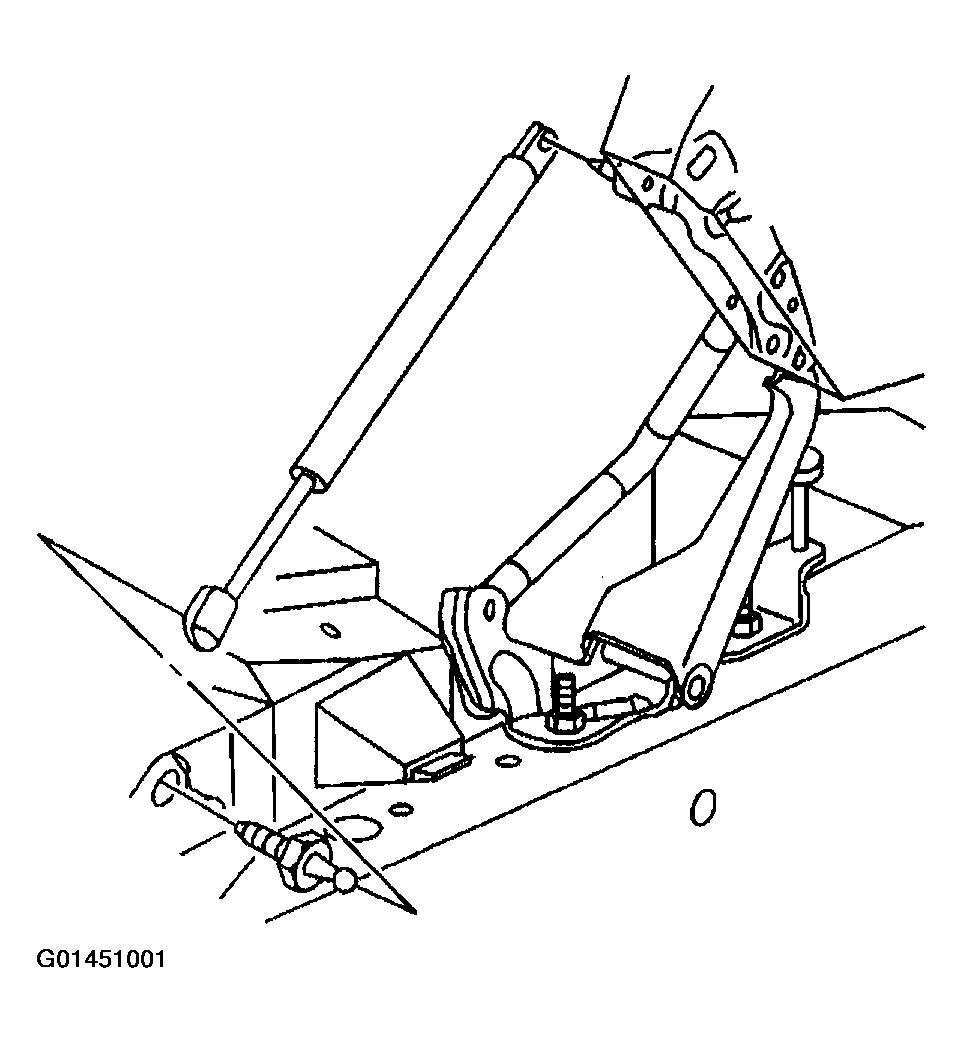

- Press the upper end of the assist rods on to the ball joint on the hood.
- Press the lower end of the assist rod on to the ball joint on the lower hood hinge.
- Remove the support from the hood.
- Close the hood.
Courtesy of GENERAL MOTORS CORP.
