Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the plenum to hood seal.
  3. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washers Systems.

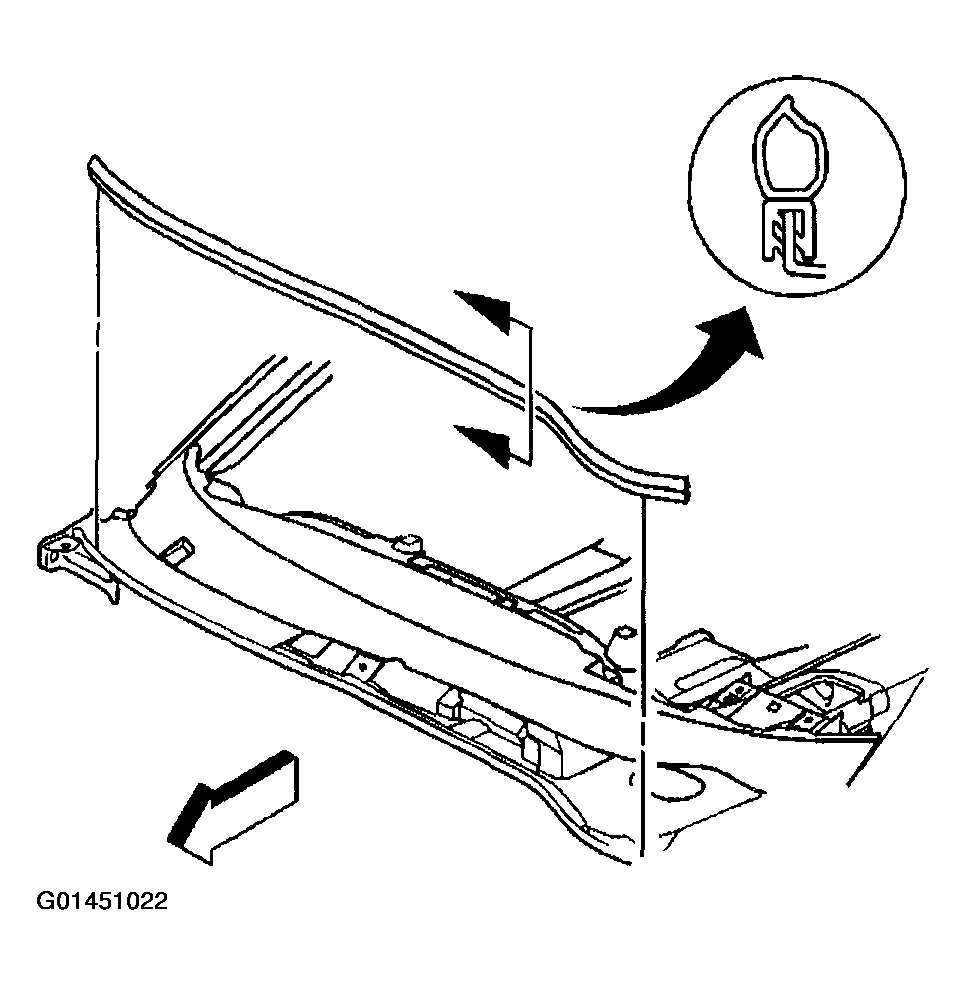

    Fig 1: Air Inlet Grille Panel
    G01451022Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-in retainers from the engine edge of the screen.

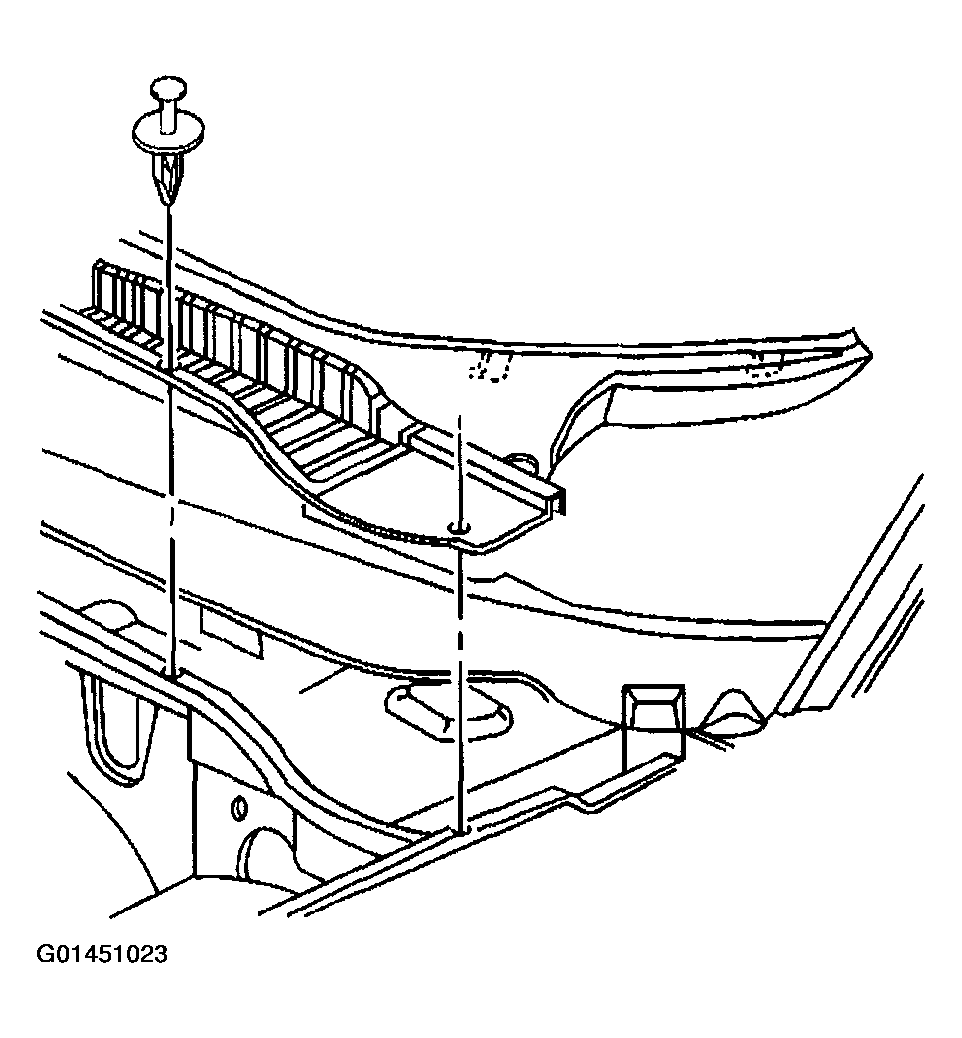

    Fig 2: Push-In Retainers
    G01451023Courtesy of GENERAL MOTORS CORP.
    NOTE: Be sure to follow the service procedure when removing the air inlet grille panel. Failure to follow service procedure may cause damage to the air inlet grille panel or the windshield.
  5. Slide the screen down and out from under the edge of the windshield.
  6. Disconnect the washer hoses from the bottom side of the screen.
  7. Remove the air inlet screen.

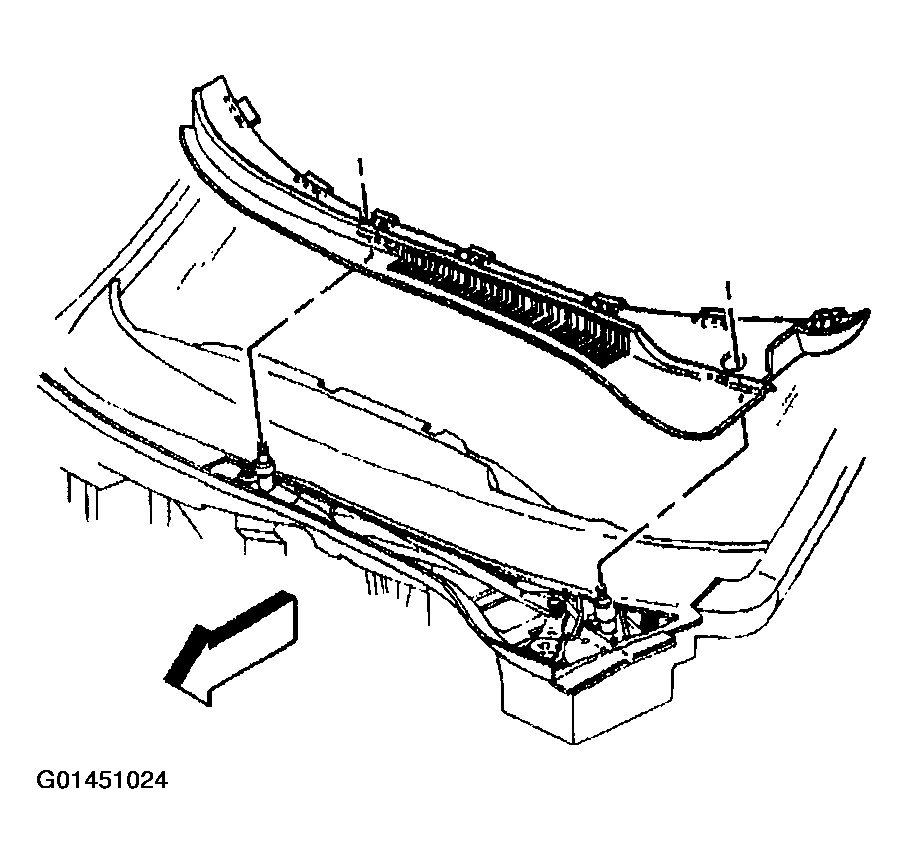

    Fig 3: Air Inlet Screen
    G01451024Courtesy of GENERAL MOTORS CORP.
