Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air inlet screen to the opening.
  2. Install the windshield washer hoses to the under side of the screen.
  3. Install the screen by engaging the screen clips under the edge of the windshield.

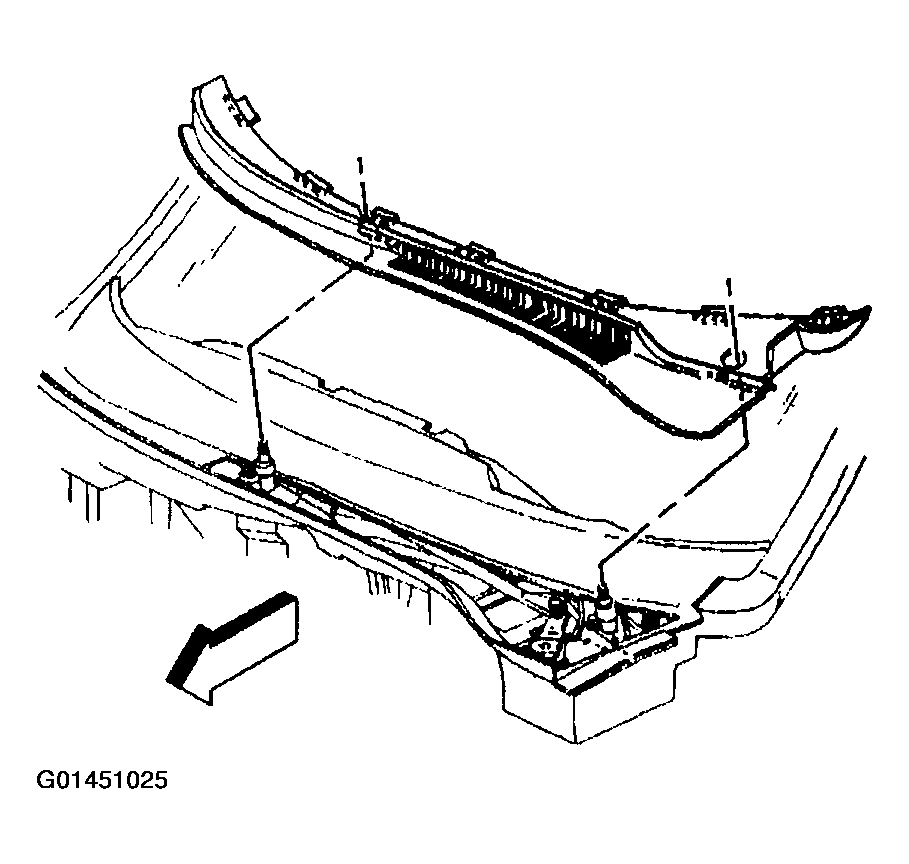

    Fig 1: Air Inlet Screen
    G01451025Courtesy of GENERAL MOTORS CORP.
  4. Secure the engine side of the screen with the push-in retainers.
  5. Install the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washers Systems.

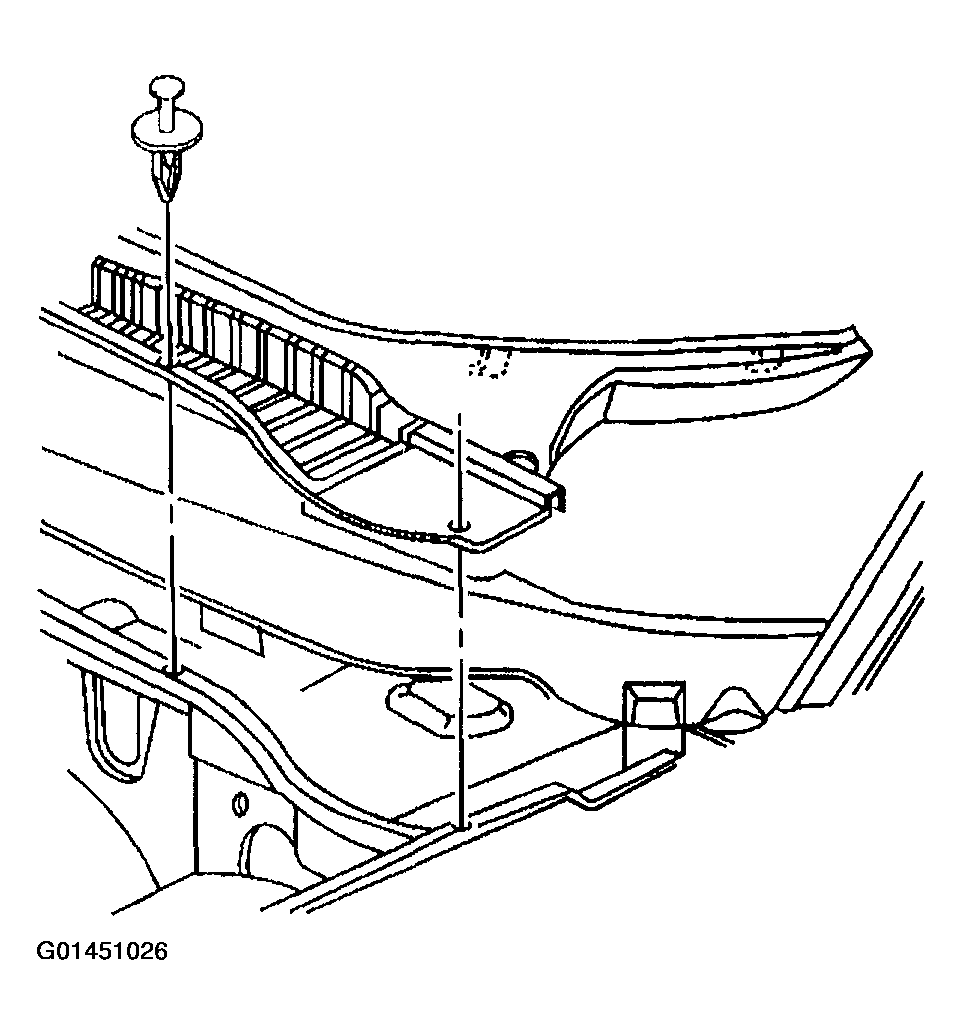

    Fig 2: Engine Side Push-In Retainer
    G01451026Courtesy of GENERAL MOTORS CORP.
  6. Install the plenum to hood seal.
  7. Close the hood.

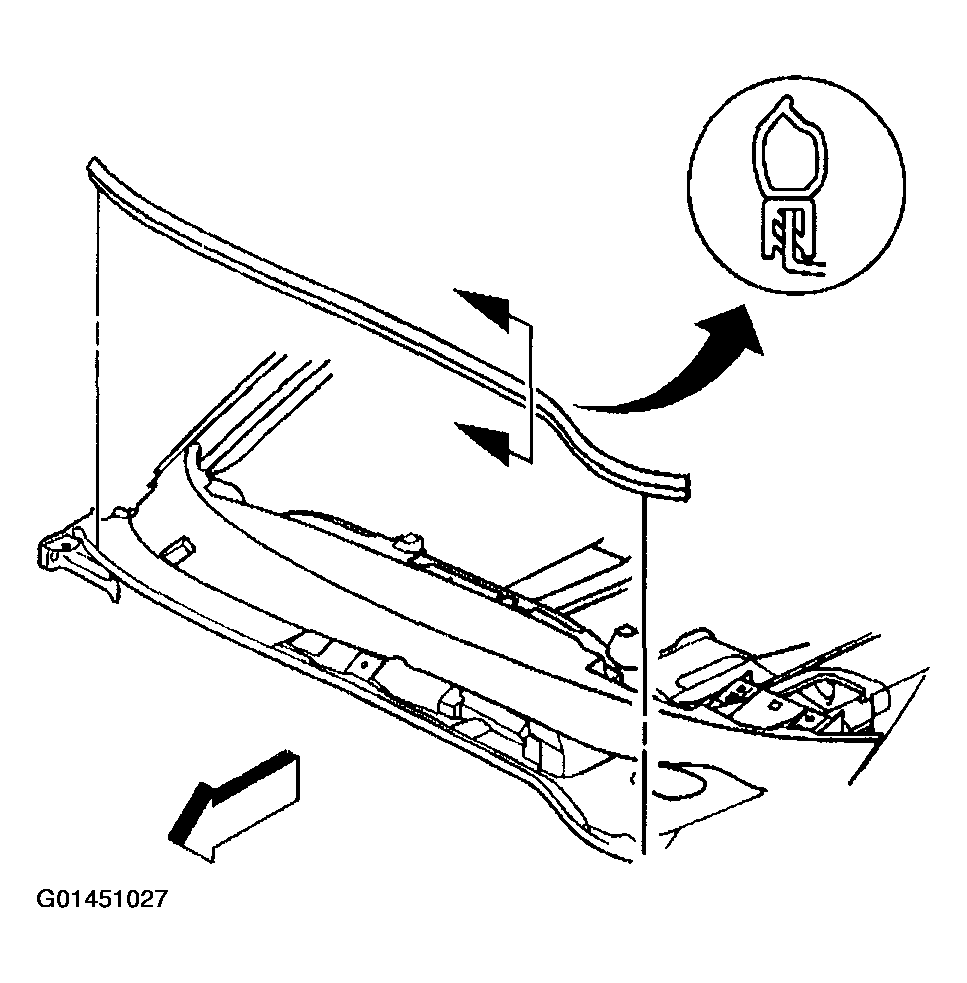

    Fig 3: Installing Plenum To Hood Seal
    G01451027Courtesy of GENERAL MOTORS CORP.
