Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license plate frame.
  2. Remove the license plate screws.
  3. Remove the license plate.
  4. Remove the license plate bracket screws.
  5. Partially remove the license bracket to expose the back-up lamp sockets.
  6. Remove the back-up lamp sockets.
  7. Remove the license bracket.

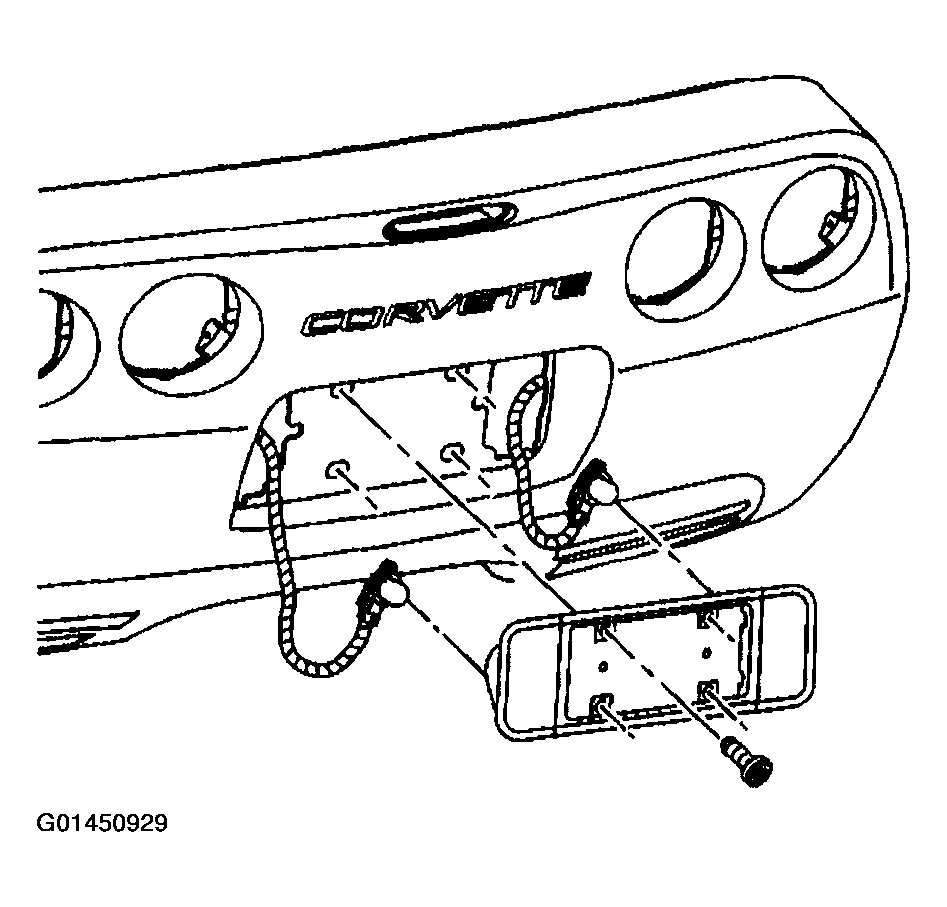

Fig 1: License Bracket
G01450929Courtesy of GENERAL MOTORS CORP.
