Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fascia close out panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER  .
  2. Remove the fog lamp, if equipped.
  3. Remove the fascia lamp deflector bolts.
  4. Remove the fascia lamp deflector.

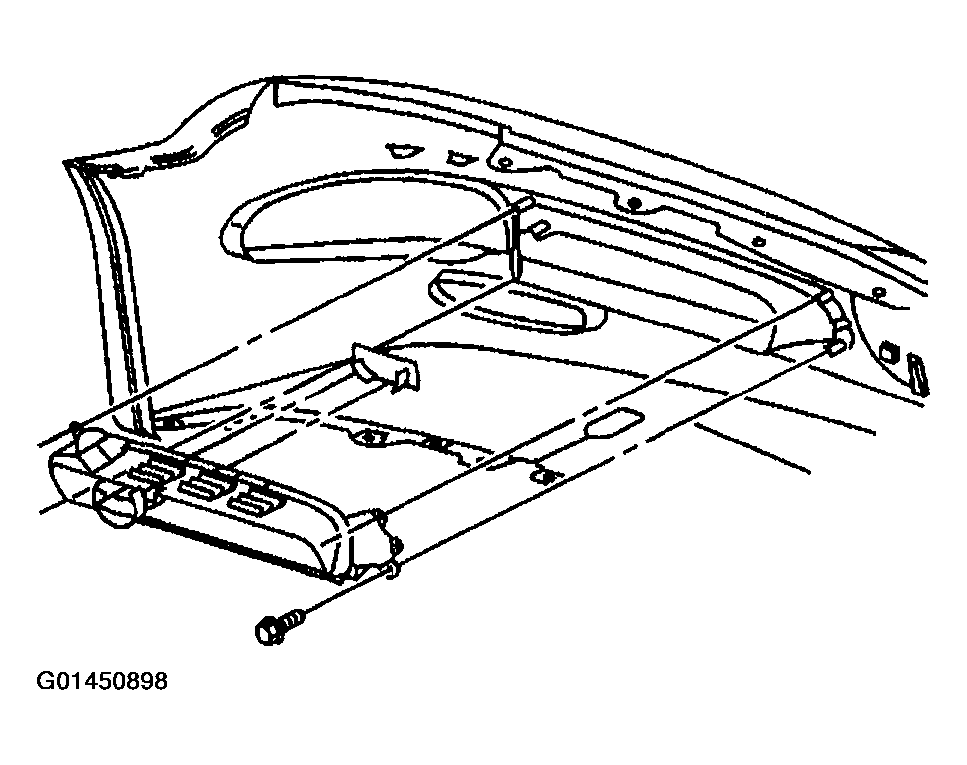

Fig 1: Front Bumper Fascia Lamp Deflector
G01450898Courtesy of GENERAL MOTORS CORP.
