Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the inner taillamp.
  2. Pull the lamp from the opening and remove the socket from the lamp.

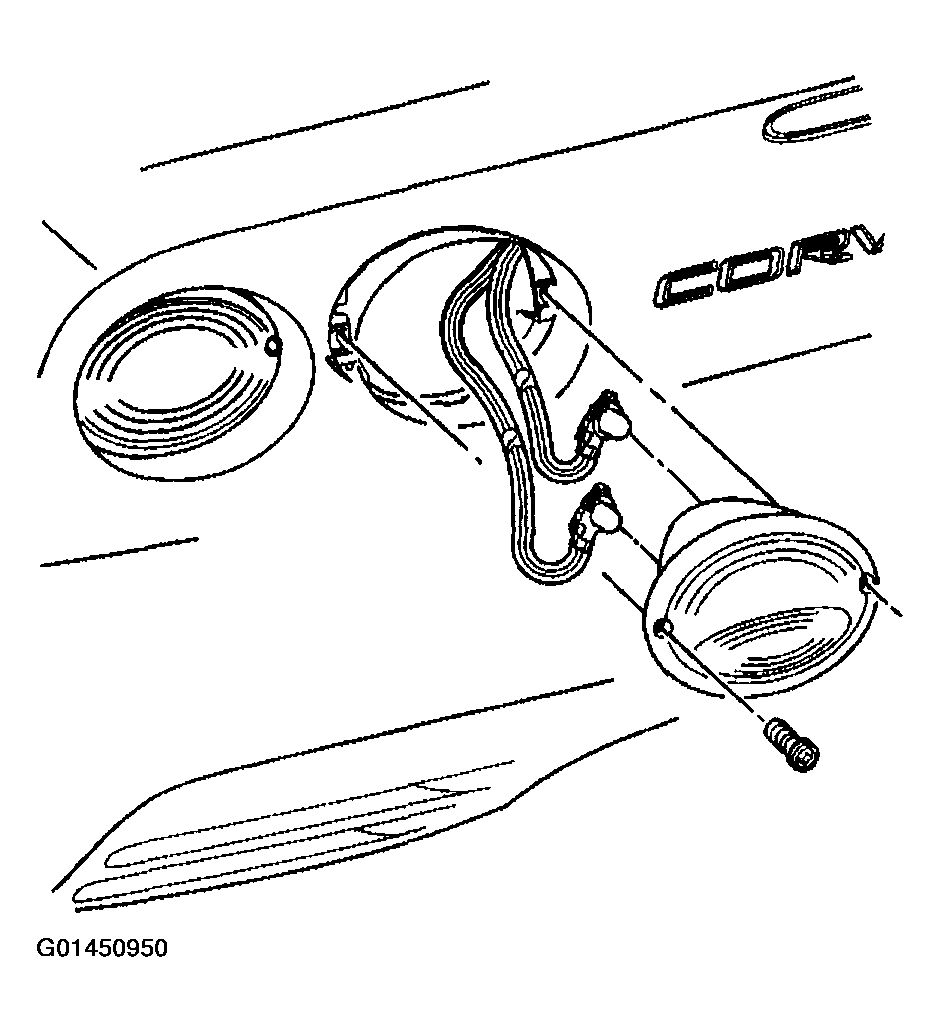

    Fig 1: Removing Screws From Inner Taillamp
    G01450950Courtesy of GENERAL MOTORS CORP.
  3. Remove the nuts from the reflector.
  4. Remove the reflector.
    Fig 2: Rear Bumper Fascia Reflector
    G01450951Courtesy of GENERAL MOTORS CORP.
