Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the front brake caliper cooling duct. Refer to BRAKE CALIPER COOLING DUCT REPLACEMENT - FRONT  .
  3. Remove the wiring harness' retainer clips (1).
  4. Remove the clips at the top of the fascia grille (2).
  5. Remove the fascia grille screws.

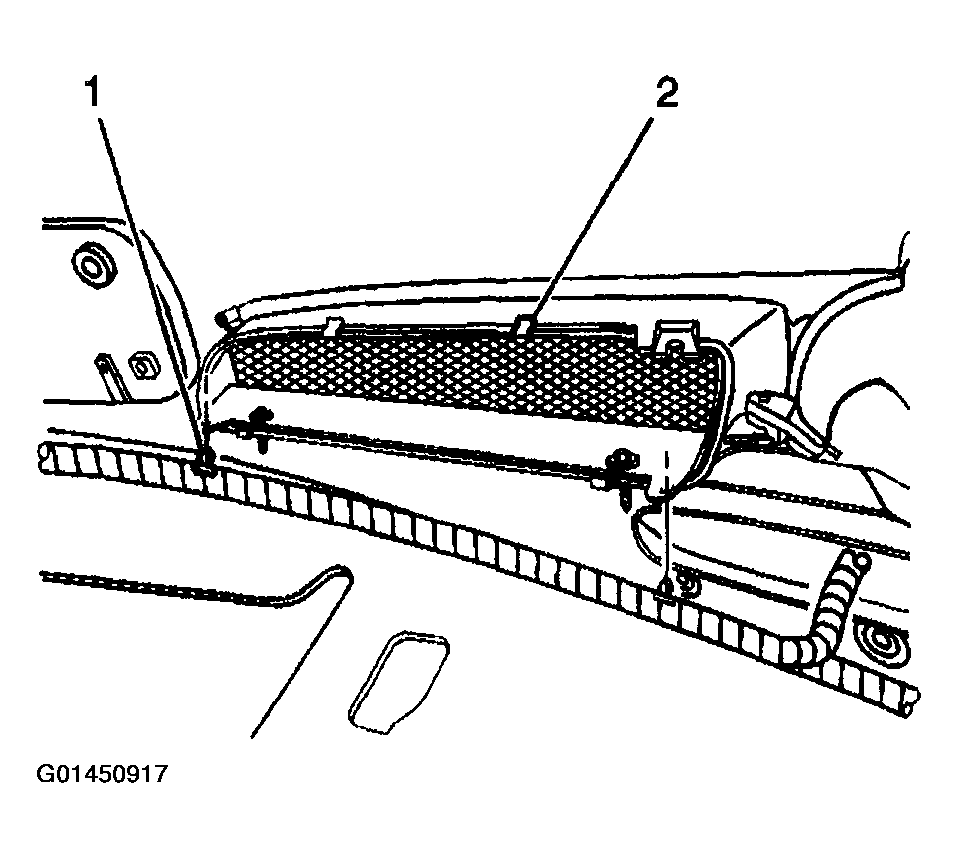

    Fig 1: Fascia Grille
    G01450917Courtesy of GENERAL MOTORS CORP.
  6. Remove the fascia grille through the front of the fascia opening.

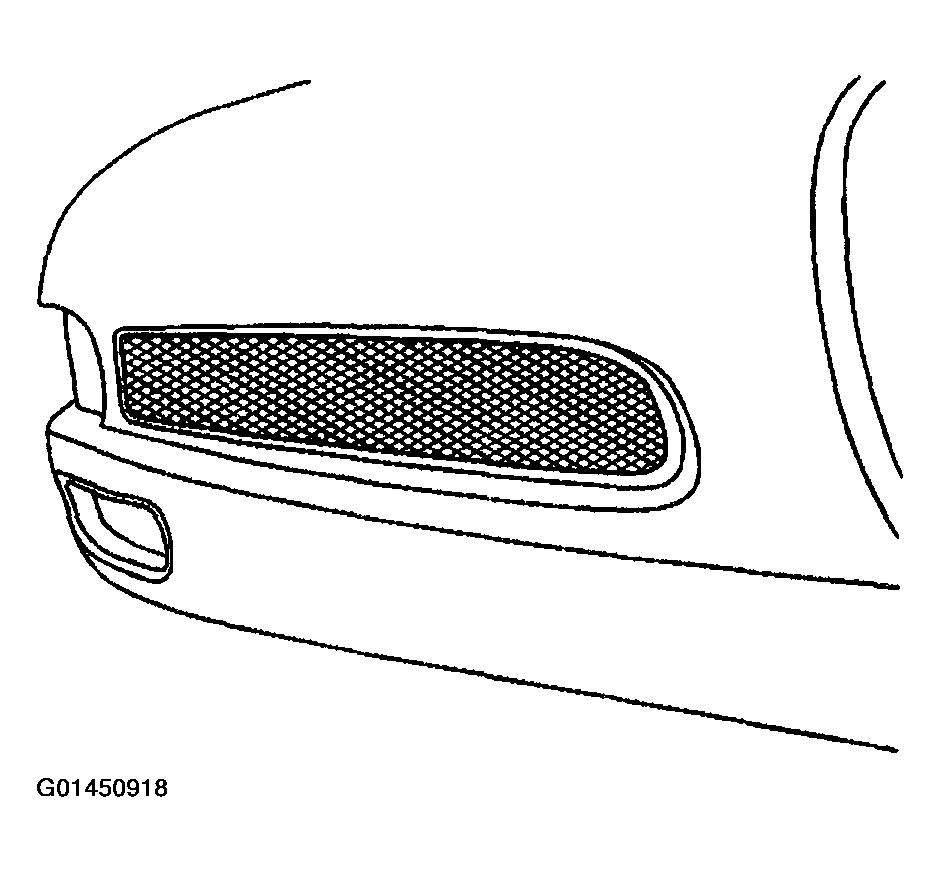

    Fig 2: Removing Fascia Grille Through Front Fascia Opening
    G01450918Courtesy of GENERAL MOTORS CORP.
